LEDILA290XD6-XQ Banner Vision Accessories

LEDILA290XD6-XQ on Powermatic Associates
Banner

Part#:LEDILA290XD6-XQ

Manufacturer:Banner

Alt. Part#:14950

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 290 mm Linear Array - IP50; 12 High Intensity IR LEDs - 24 V dc; Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDILA290XD6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    825.53744 g
  • Country Of Origin
    MX
  • Color Technology
    Standard LED
  • Physical Dimensions (LxWxH or DxH mm)
    332.6 x 59.4 x 32.6
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Max Current Color (mA)
    1000
  • Supply Voltage
    24 V DC
  • Max Op. Temperature (°C)
    50
  • Number of Input Pins/Conductors
    5
  • Primary Housing Material
    Anodized Aluminum
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Connection Type
    Integral QD
  • Window Material
    Diffuse Acrylic
  • Color
    Infrared
  • Device Type
    Bar Light
  • Housing Style
    Linear Strip
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDILA290XD6-XQ Description

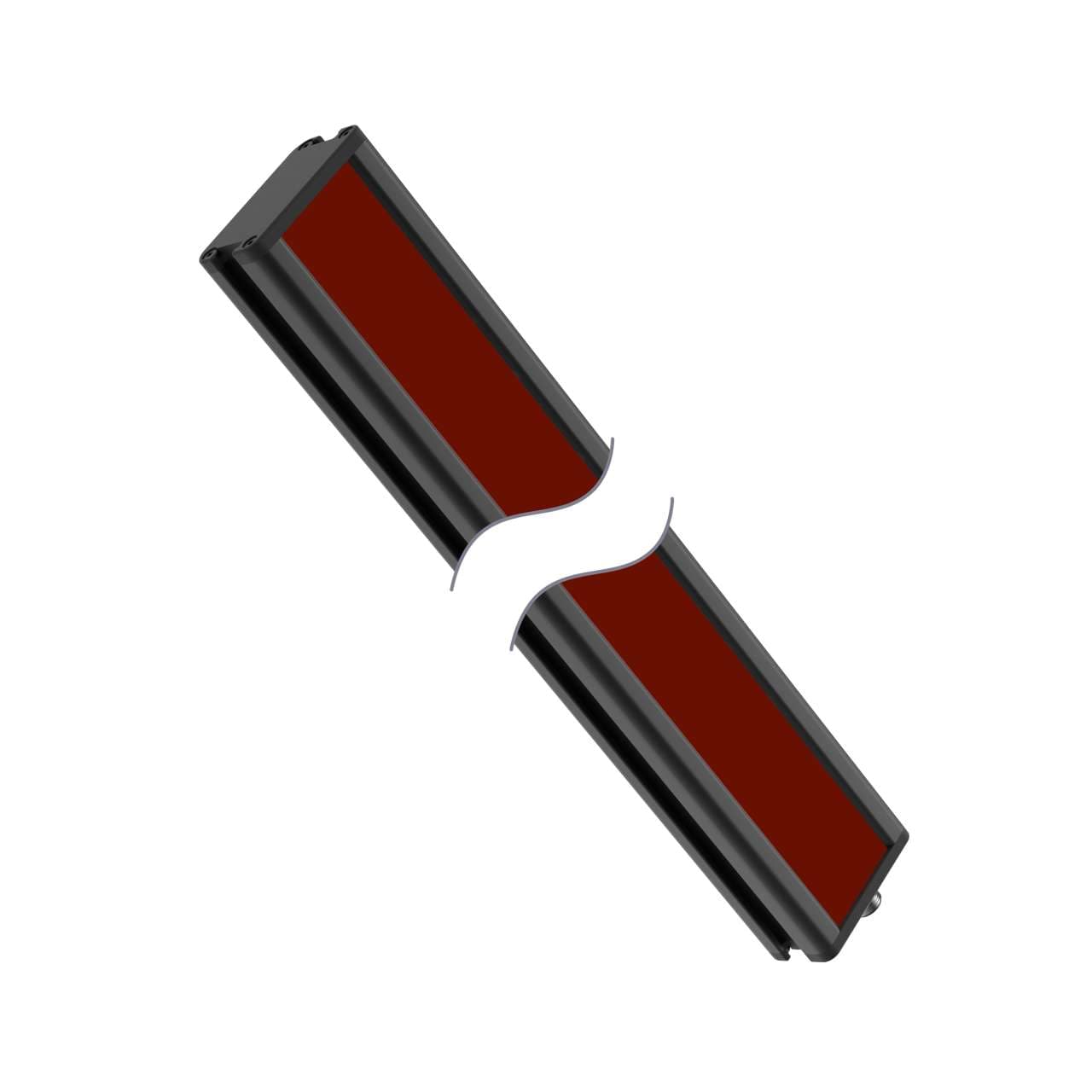

Banner Engineering LEDILA290XD6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a rectangular shape, measuring 290mm in array length. This unit emits light in the infrared (IR) spectrum and is encased in a black anodized aluminum housing with a diffused acrylic window. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDILA290XD6-XQ operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50.

Related documents LEDILA290XD6-XQ Specs

LEDILA290XD6-XQ 151466.pdf

Manufacturer warranty

$546.00

Request a quote, and we will send availability within minutes.

Select Qty:

$546.00

$546.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
