LEDILA290XD6-PHQ Banner Vision Accessories

LEDILA290XD6-PHQ on Powermatic Associates
Banner

Part#:LEDILA290XD6-PHQ

Manufacturer:Banner

Alt. Part#:81797

Product Lifecycle:Active

Get a quick Quote!

LINEAR ARRAY IR ACRY DIFF 1 FT DIMMABLE ACT. HIGH

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDILA290XD6-PHQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    834.60928 g
  • Country Of Origin
    US
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Max Op. Temperature (°C)
    50
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    1000
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Number of Input Pins/Conductors
    5
  • Physical Dimensions (LxWxH or DxH mm)
    332.6 x 59.4 x 32.6
  • Supply Voltage
    24 V DC
  • Color
    Infrared
  • Window Material
    Diffuse Acrylic
  • Device Type
    Bar Light
  • Intensity Adjustment
    Potentiometer and Analog
  • Power
    DC
  • Housing Style
    Linear Strip
  • Connection Type
    Integral QD
  • Primary Housing Material
    Anodized Aluminum
  • Feature: Quick Disconnect
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDILA290XD6-PHQ Description

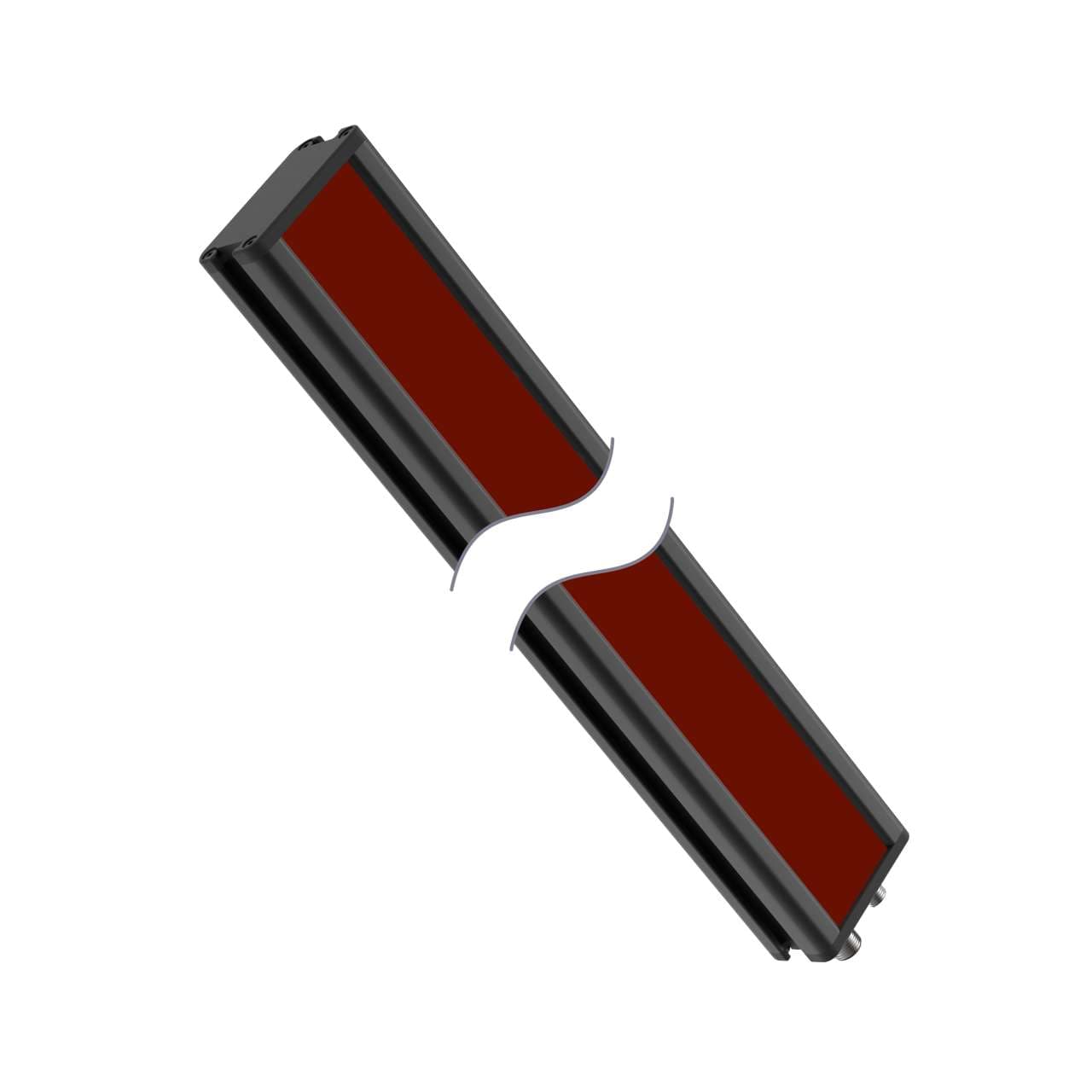

Banner Engineering LEDILA290XD6-PHQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming either via a potentiometer or an analog input, and delivers high-intensity lighting. This unit has a rectangular shape with dimensions of 290mm / 11.4" / 1ft array length and emits infrared (IR) light. It is constructed with a black anodized aluminum housing and a diffused acrylic window. For connectivity, it is pre-equipped with a 5-pin Euro-style M12 connector. The LEDILA290XD6-PHQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50. It includes 1 x digital input (24Vdc; high-polarity) for strobe control and 1 x analog input (0-10Vdc) for intensity control.

Related documents LEDILA290XD6-PHQ Specs

LEDILA290XD6-PHQ 150944.pdf

Manufacturer warranty

$1,076.00

Request a quote, and we will send availability within minutes.

Select Qty:

$1,076.00

$1,076.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
