LEDGA62X62W Banner Vision Accessories

LEDGA62X62W on Powermatic Associates
Banner

Part#:LEDGA62X62W

Manufacturer:Banner

Alt. Part#:73806

Product Lifecycle:Active

Get a quick Quote!

PresencePLUS 62 x 62 mm Area Light; Visible Green LED 24 V dc; 2 m (6.5 ft) Cable with flying leads

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDGA62X62W Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    163.29312 g
  • Country Of Origin
    MX
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    66.7 x 66.7 x 14.6
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    200
  • QD Type/Cable Length
    2 m
  • Window Material
    Acrylic
  • Connection Type
    Cable
  • Color
    Green
  • Power
    DC
  • Device Type
    Area Light
  • Supply Voltage
    24 V dc
  • Feature: Quick Disconnect
    No
  • Housing Style
    Rectangular
  • Number of Input Pins/Conductors
    3
  • Primary Housing Material
    Low-Carbon Steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDGA62X62W Description

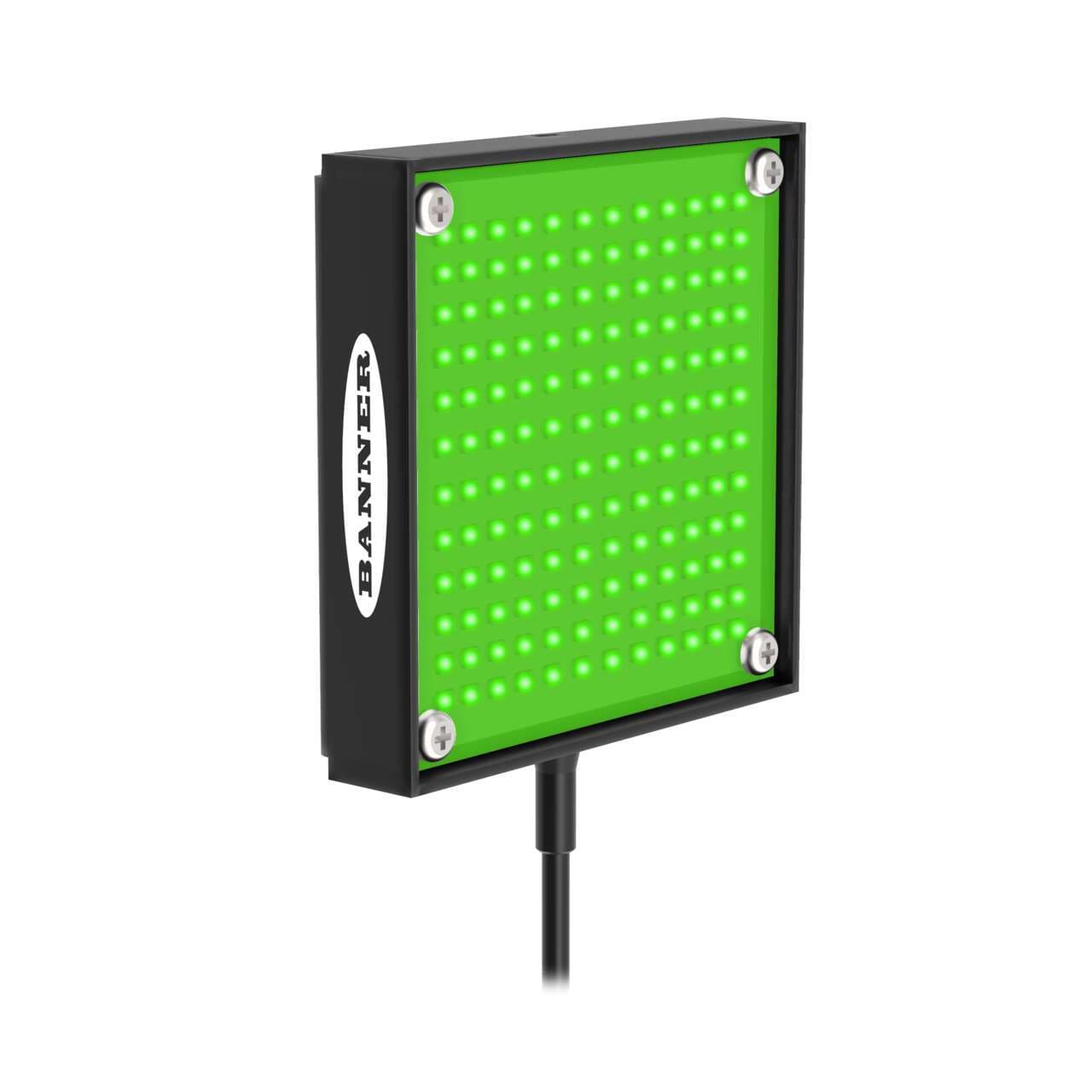

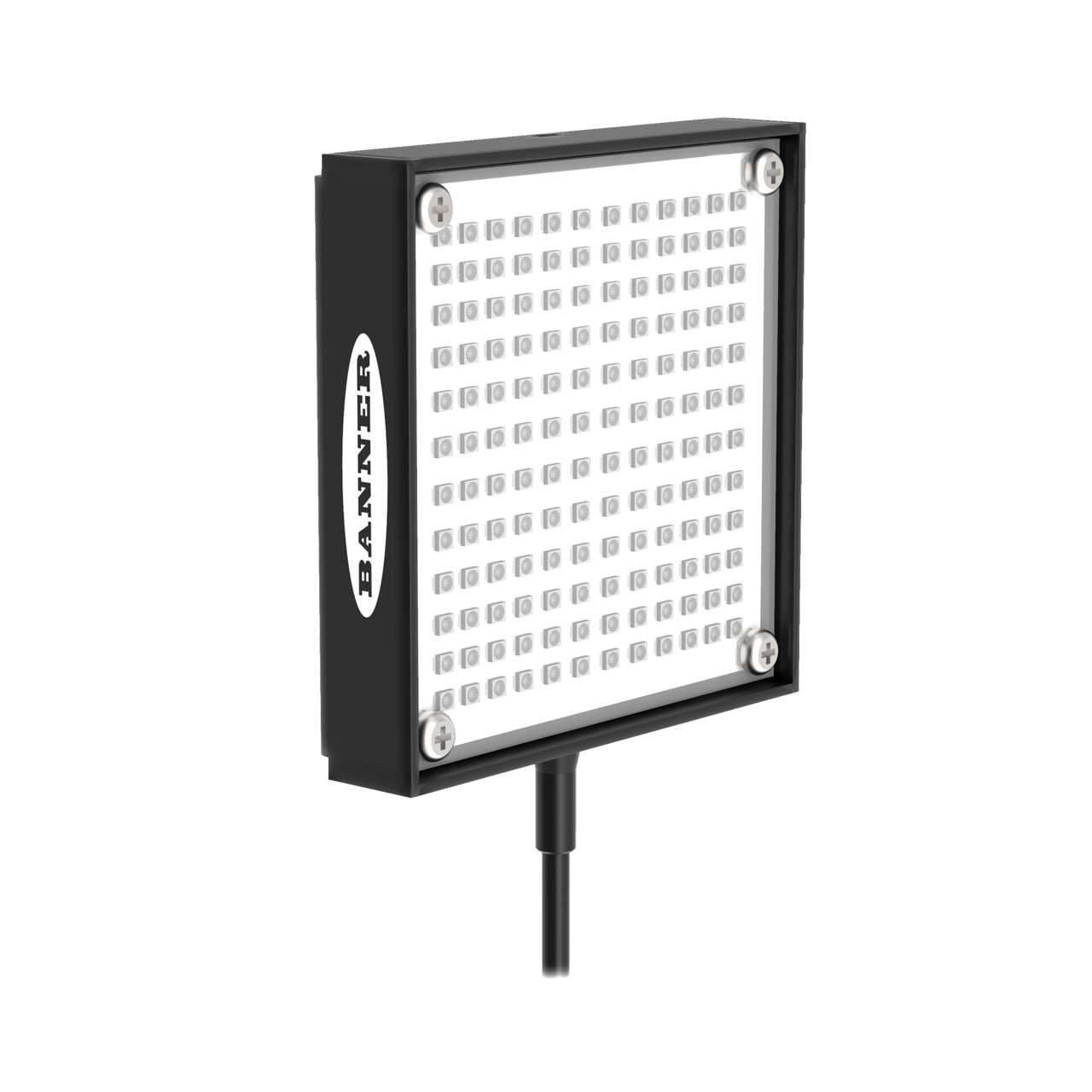

Banner Engineering LEDGA62X62W is an illumination unit designed for area lighting applications. This square-shaped light measures 62x62mm and features a visible green light output. It is constructed with a low-carbon steel housing and an acrylic window for durability. The unit is pre-wired with a 6.5ft / 2m cable that terminates in bare end flying leads for easy installation. It operates on a 24Vdc supply voltage.

Related documents LEDGA62X62W Specs

LEDGA62X62W 121779.pdf

Manufacturer warranty

$464.00

Request a quote, and we will send availability within minutes.

Select Qty:

$464.00

$464.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
