LEDBLB1160XW6-XQ Banner Vision Accessories

LEDBLB1160XW6-XQ on Powermatic Associates
Banner

Part#:LEDBLB1160XW6-XQ

Manufacturer:Banner

Alt. Part#:29706

Product Lifecycle:Active

Get a quick Quote!

Vision Light-Linear Back Light 1160 mm; Voltage: 24 V dc; Environmental Rating: IP50 Color: Blue; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDBLB1160XW6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    2494.756 g
  • Country Of Origin
    MX
  • Max Op. Temperature (°C)
    50
  • Color Technology
    Standard LED
  • Feature: Quick Disconnect
    Yes
  • Supply Voltage
    24 V DC
  • Physical Dimensions (LxWxH or DxH mm)
    1205.6 x 59.4 x 32.6
  • Power
    DC
  • Max Current Color (mA)
    4000
  • Housing Style
    Linear Strip
  • Connection Type
    Integral QD
  • Number of Input Pins/Conductors
    5
  • Color
    Blue
  • Primary Housing Material
    Anodized Aluminum
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Window Material
    Acrylic
  • Device Type
    Linear Array Backlight

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDBLB1160XW6-XQ Description

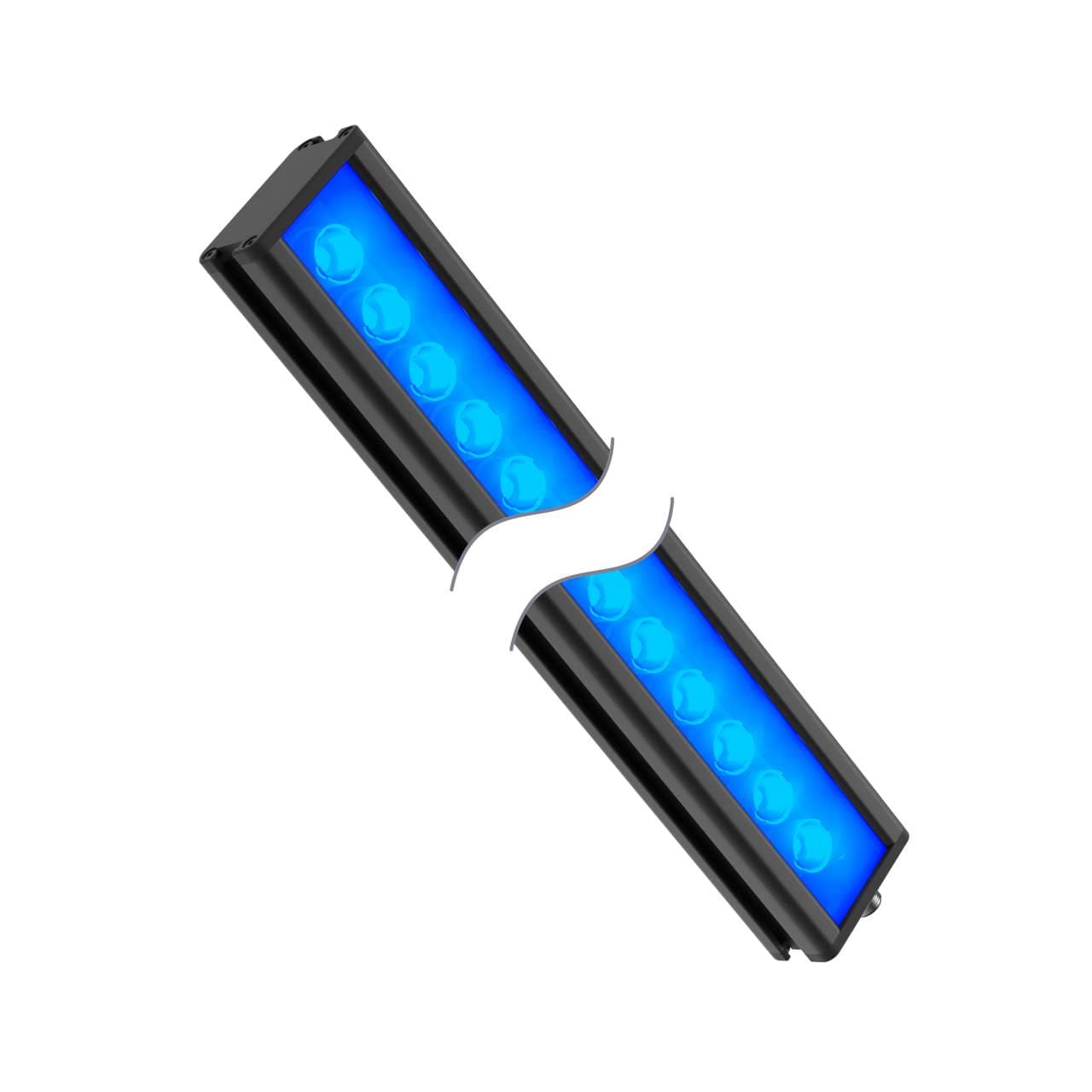

Banner Engineering LEDBLB1160XW6-XQ is an illumination unit designed as a linear array illumination backlight. It features a high-intensity design suitable for various applications requiring visible blue light. The unit measures 1160mm (45.6 inches or approximately 4 feet) in array length, ensuring extensive coverage. It is constructed with a black anodized aluminum housing and a white acrylic window, providing durability and optimal light diffusion. This model is pre-equipped with a 5-pin Euro-style M12 connector for straightforward connectivity. It operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating protection against dust ingress.

Related documents LEDBLB1160XW6-XQ Specs

LEDBLB1160XW6-XQ 166314.pdf

Manufacturer warranty

$3,399.00

Request a quote, and we will send availability within minutes.

Select Qty:

$3,399.00

$3,399.00 each
