LEDBLA1160XD6-XQ Banner Vision Accessories

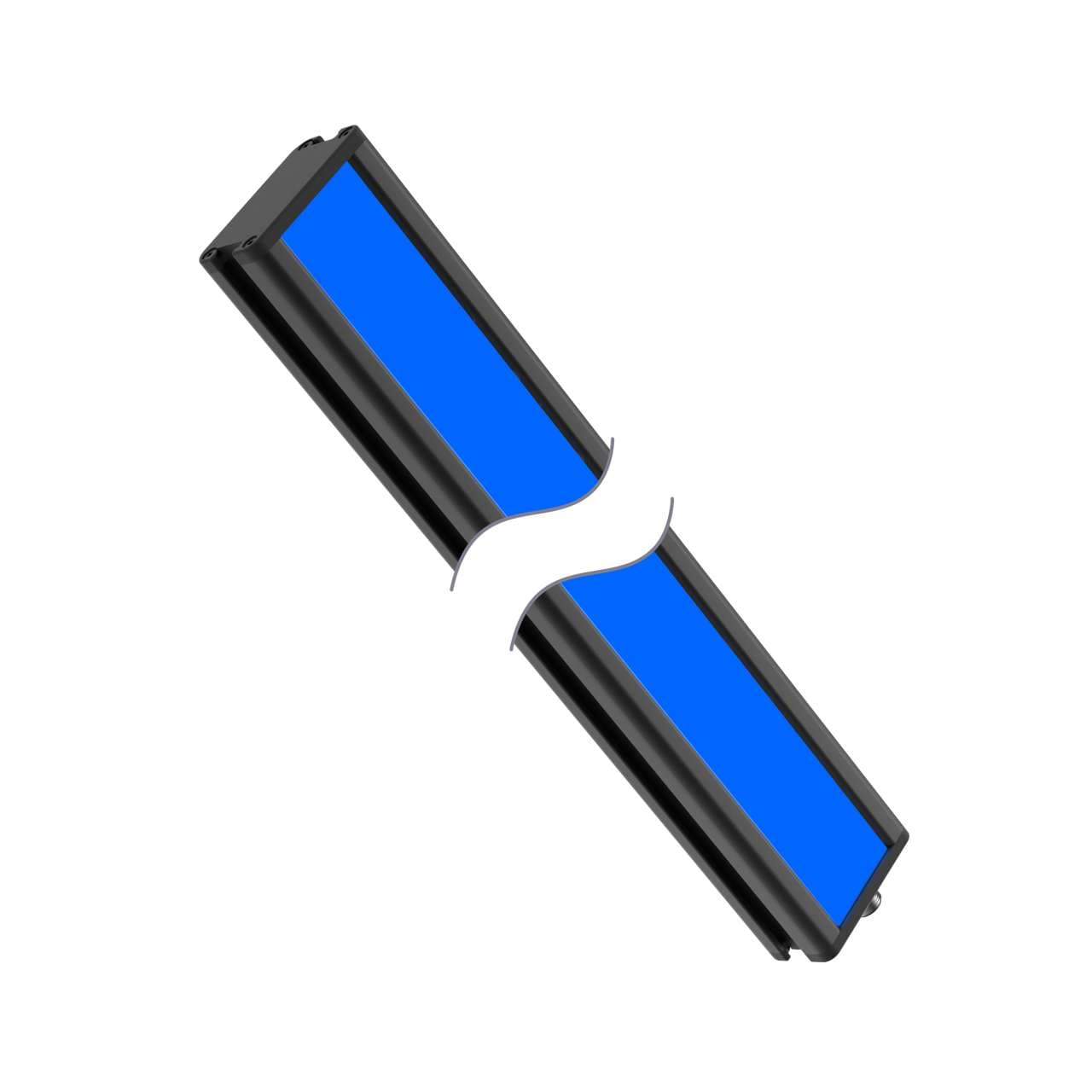

LEDBLA1160XD6-XQ on Powermatic Associates
Banner

Part#:LEDBLA1160XD6-XQ

Manufacturer:Banner

Alt. Part#:13547

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 1160 mm Linear Array - IP50; 48 High Intensity Blue LEDs - 24 V dc; Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDBLA1160XD6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    2540.1152 g
  • Country Of Origin
    MX
  • Physical Dimensions (LxWxH or DxH mm)
    1205.6 x 59.4 x 32.6
  • Color Technology
    Standard LED
  • Max Op. Temperature (°C)
    50
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Supply Voltage
    24 V DC
  • Max Current Color (mA)
    4000
  • Number of Input Pins/Conductors
    5
  • Connection Type
    Integral QD
  • Primary Housing Material
    Anodized Aluminum
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Window Material
    Diffuse Acrylic
  • Power
    DC
  • Housing Style
    Linear Strip
  • Color
    Blue
  • Device Type
    Bar Light

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDBLA1160XD6-XQ Description

Banner Engineering LEDBLA1160XD6-XQ is an illumination unit designed as a linear array illumination backlight. It features a high-intensity design suitable for various applications requiring visible blue light. The unit measures 1160mm (45.6 inches or approximately 4 feet) in array length, ensuring broad coverage. It is constructed with a black anodized aluminum housing and a diffused acrylic window for durability and optimal light diffusion. This model is pre-equipped with a 5-pin Euro-style M12 connector for straightforward integration into existing systems. It operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating protection against dust ingress.

Related documents LEDBLA1160XD6-XQ Specs

LEDBLA1160XD6-XQ 151466.pdf

Manufacturer warranty

$3,682.00

Request a quote, and we will send availability within minutes.
