K90TLGRY6PQ Banner Signal Beacons

Name: K90TLGRY6PQ
Brand: Banner
Price: 200 USD
Availability: BackOrder

Part#:K90TLGRY6PQ

Manufacturer:Banner

Alt. Part#:96948

Product Lifecycle:Active

Get a quick Quote!

K90T Series EZ-LIGHT; 3-Color Indicator; I/O Compatible; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Green Red Yellow; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K90TLGRY6PQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
217.72416 g
Country Of Origin
US
Max Input Response Time (ms)
150
Wire Selectable Function
Multi-Function
Supply Voltage
12-30 V dc
Max Current Color (mA)
475
Color Option 3
Yellow
Number of Input Pins/Conductors
5
Color 3 - Wavelength/Color Temp/Coordinates
590 nm
Lumens Color 3
35.0
Lumens Color 2
65.0
Color Option 2
Red
Animation Option 1
Solid On
Quick Disconnect Type
M12 (Euro)
Connection
Integral QD
Color Technology
Standard LED
Color Option 1
Green
Color 1 - Wavelength/Color Temp/Coordinates
525 nm
Product Size (mm)
90
Primary Housing Material
Polycarbonate

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Pro-Editor Compatible (Discrete)

Wireless

Modbus RTU

Feature: Quick Disconnect

Yes

IO Link

Feature: Chemical Resistant

Multi-Color Device

Single Color On - Alternating

Feature: Audible

Primary Window Material

Polycarbonate Diffused

Feature: Hazardous Area

Min Op. Temperature (°C)

-40

NEMA Type and UL Type Rating

NEMA 4X, 13

Max Op. Temperature (°C)

Environmental Rating

IP67

Physical Dimensions (LxWxH or DxH mm)

90.0 x 87.0

Input Type

PNP

Color 2 - Wavelength/Color Temp/Coordinates

625 nm

Lumens Color 1

150

Mounting Thread

M30 x 1.5

Power Source

Power

Number of Colors / Segments

Indication

Yes

Housing Style

Base Mount - Dome Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K90TLGRY6PQ Description

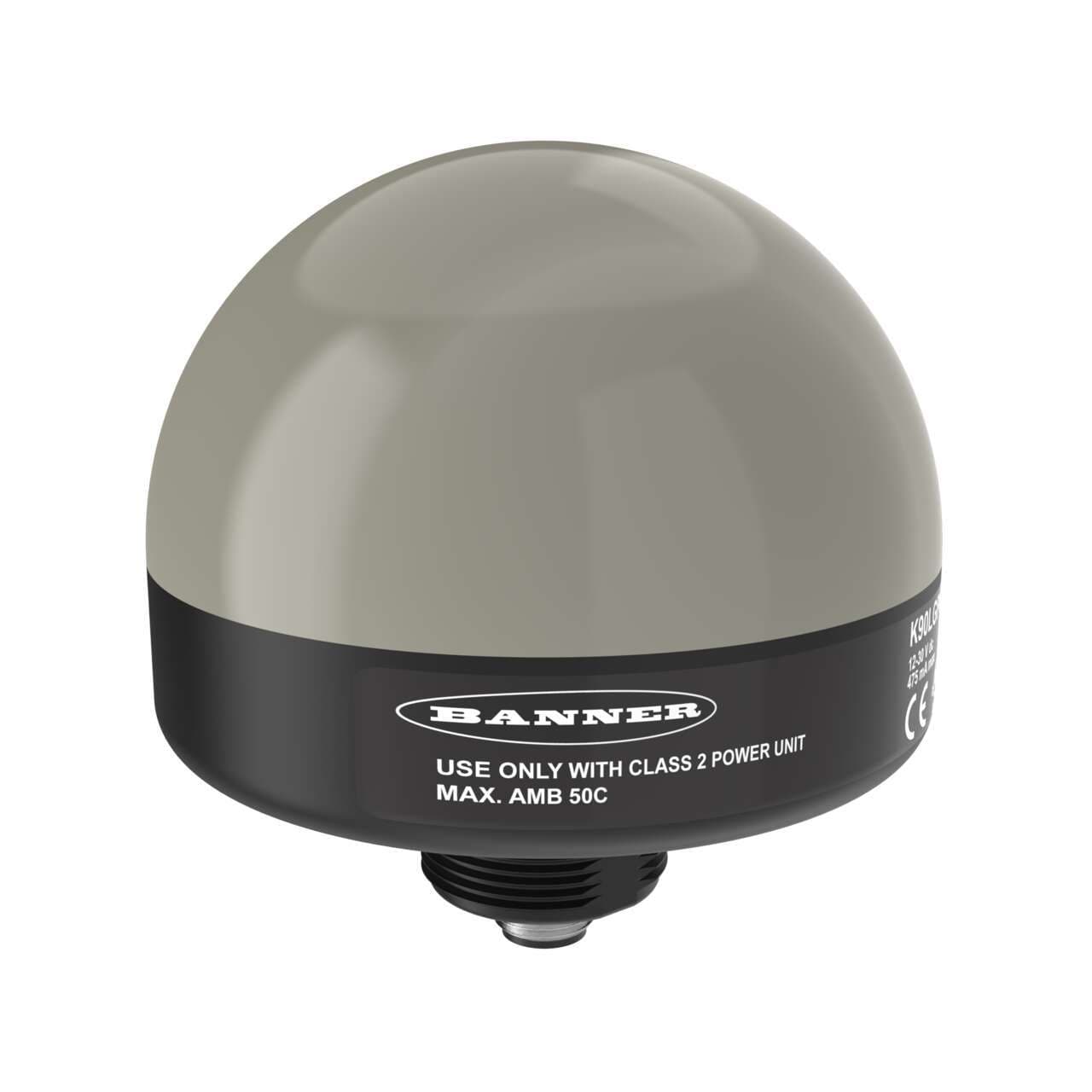

Banner Engineering K90TLGRY6PQ is a pilot light from the EZ-LIGHT series designed to serve as an LED pilot light indicator. This part features a 2-color G/R color pattern LED illumination that alternates between colors when multiple inputs are active. It has a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. The connection is facilitated by a pre-wired 2m / 6.5ft 5-wire cable terminated with bare end flying leads. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The K90TLGRY6PQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread. The dome diameter measures 90mm / 3-1/2". It is designed to operate within an ambient air temperature range of -40°C to +50°C and offers a degree of protection rated at IP67, NEMA 4X, and NEMA 13. The current consumption is 475mA, and it supports 2 x digital inputs (12-30Vdc; PNP) for color control.

$200.00

Request a quote, and we will send availability within minutes.

Select Qty:

$200.00

$200.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
