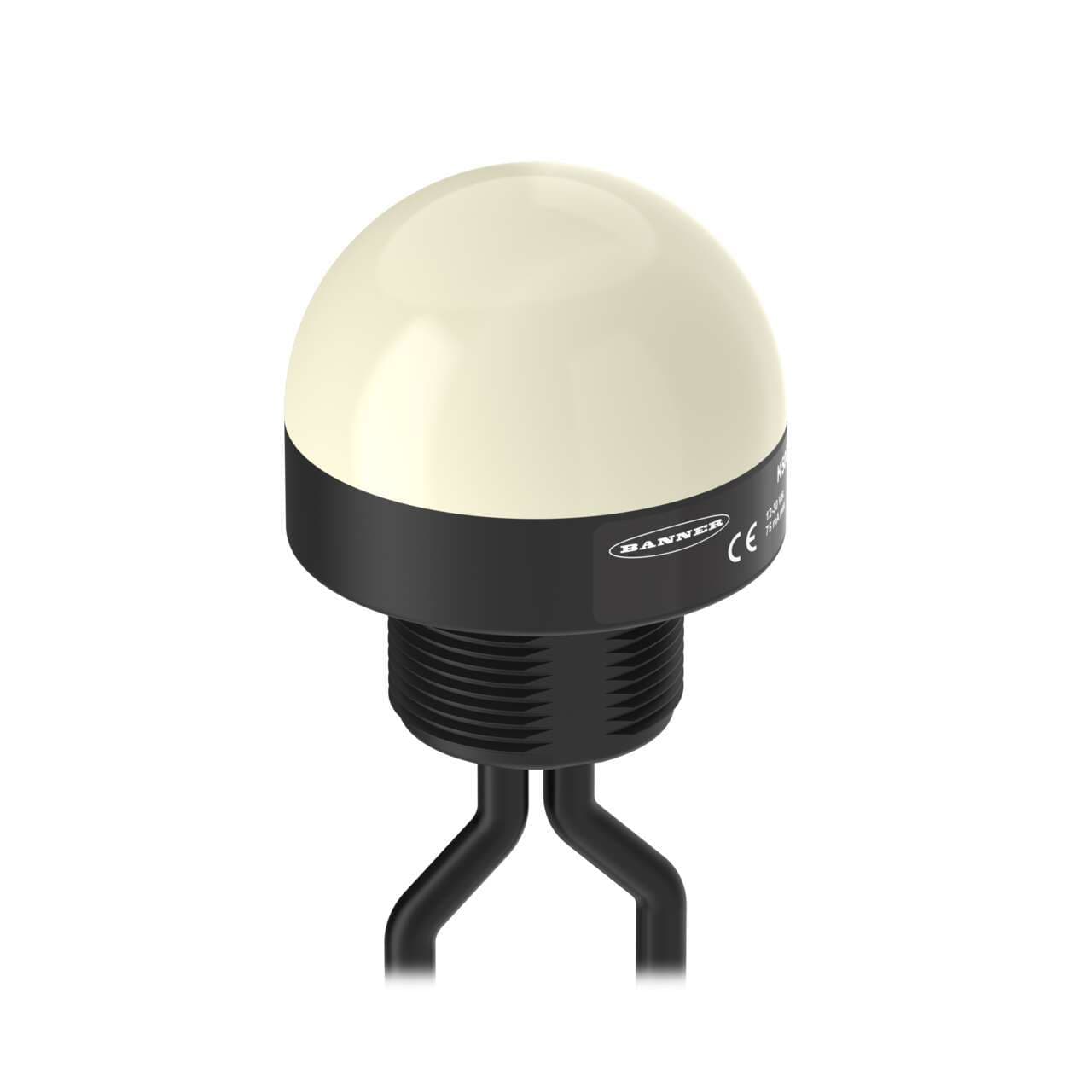

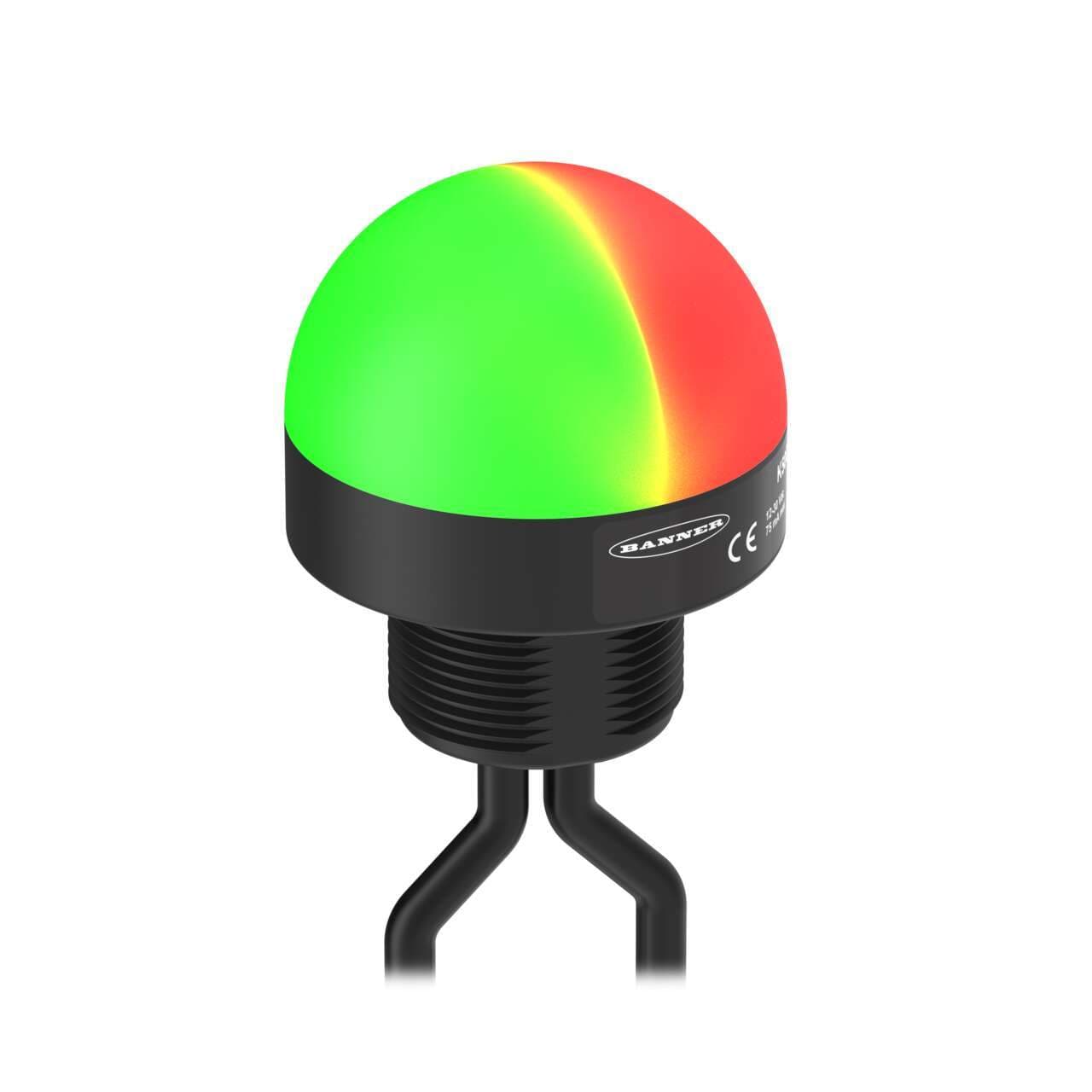

K50PLSQ2PS Banner Pick-to-Light Sensors

Banner K50PLSQ2PS K50 Pro Indicator with PICK-IQ Series: RGB Indicator; Voltage: 10-30 V dc; Housing: Polycarbonate; Environ. Rating: IP67 IP69K; Colors: Multicolor; 240 mm (9.45 in) 5-pin M12 PVC Shielded Pigtail QDs
Banner

Part#:K50PLSQ2PS

Manufacturer:Banner

Alt. Part#:808254

Product Lifecycle:Active

Get a quick Quote!

K50 Pro Indicator with PICK-IQ Series: RGB Indicator; Voltage: 10-30 V dc; Housing: Polycarbonate; Environ. Rating: IP67 IP69K; Colors: Multicolor; 240 mm (9.45 in) 5-pin M12 PVC Shielded Pigtail QDs

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50PLSQ2PS Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    172.36496 g
  • Country Of Origin
    US
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • IO Link
    No
  • Modbus RTU
    Yes
  • Multi-Color Device
    Simultaneous Colors On
  • Feature: Audible
    No
  • Feature: Washdown Rated
    Yes
  • PICK-IQ (Modbus RTU)
    Yes
  • Feature: Chemical Resistant
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Primary Housing Color
    Black
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Environmental Rating
    IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 73.0
  • Input Type
    Communication Protocol
  • Number of Input Pins/Conductors
    4
  • Pick-to-Light Function
    Programmable
  • Supply Voltage
    18-30 V dc
  • Dimming Option
    Programmable
  • Quick Disconnect Type
    M12 (Euro)
  • Max Current Color (mA)
    132
  • Animation Option 1
    Modbus Controlled
  • Color Option 1
    RGB
  • Color Technology
    RGB Configurable
  • Product Size (mm)
    50
  • Mounting Thread
    M30 x 1.5
  • Color Input Control
    Communication Protocol
  • Number of Colors / Segments
    Programmable
  • Indication
    Yes
  • Power Source
    DC
  • Primary Housing Material
    Polycarbonate
  • Housing Style
    Base Mount - Dome Window
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50PLSQ2PS Description

K50 Pro Indicator with PICK-IQ Series: RGB Indicator, Voltage: 10-30 V dc; Housing: Polycarbonate; Environ. Rating: IP67 IP69K, Colors: Multicolor, Euro 5-Pin 240 mm (9.45 in) PVC Shielded Pigtails

Related documents K50PLSQ2PS Specs

K50PLSQ2PS 212906.pdf
