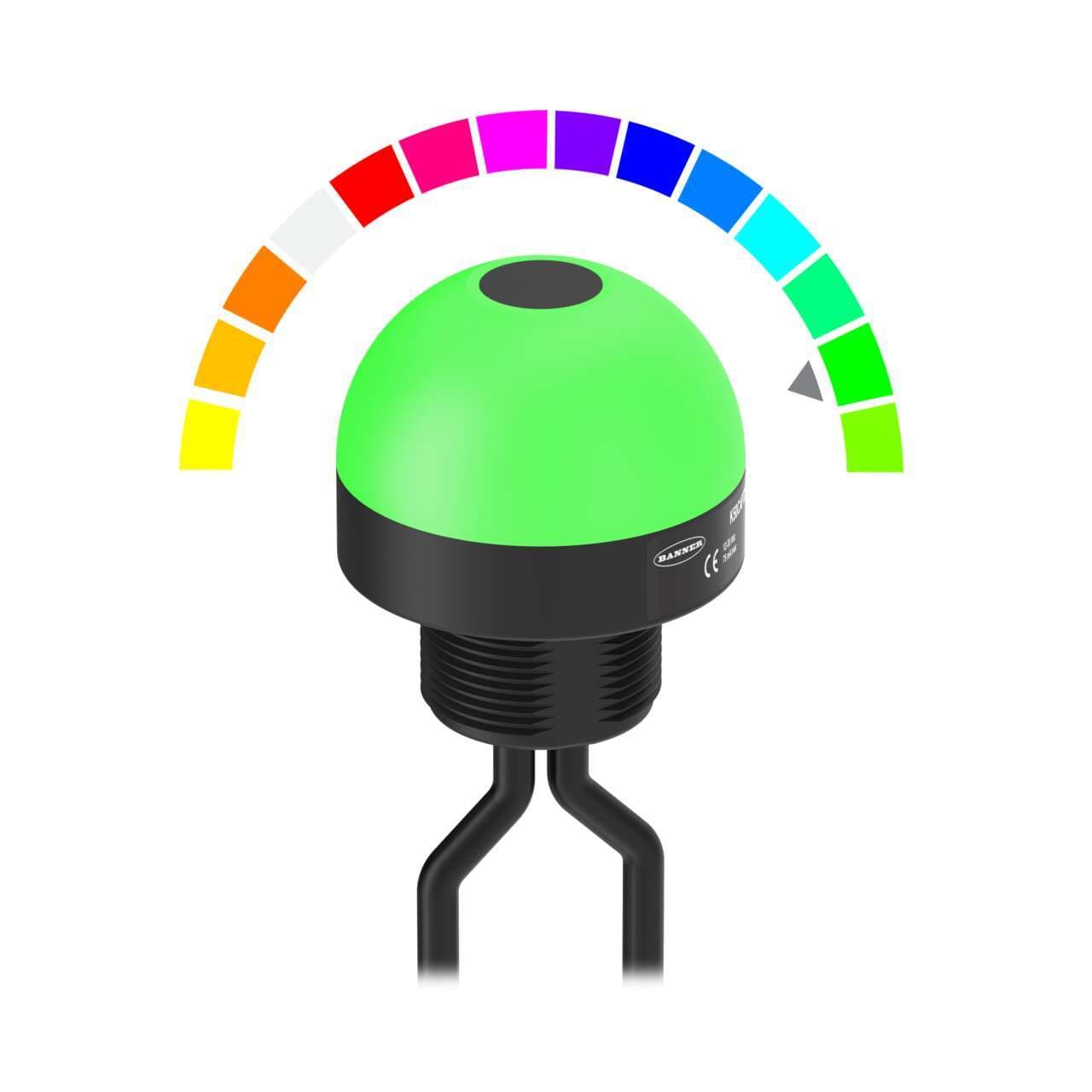

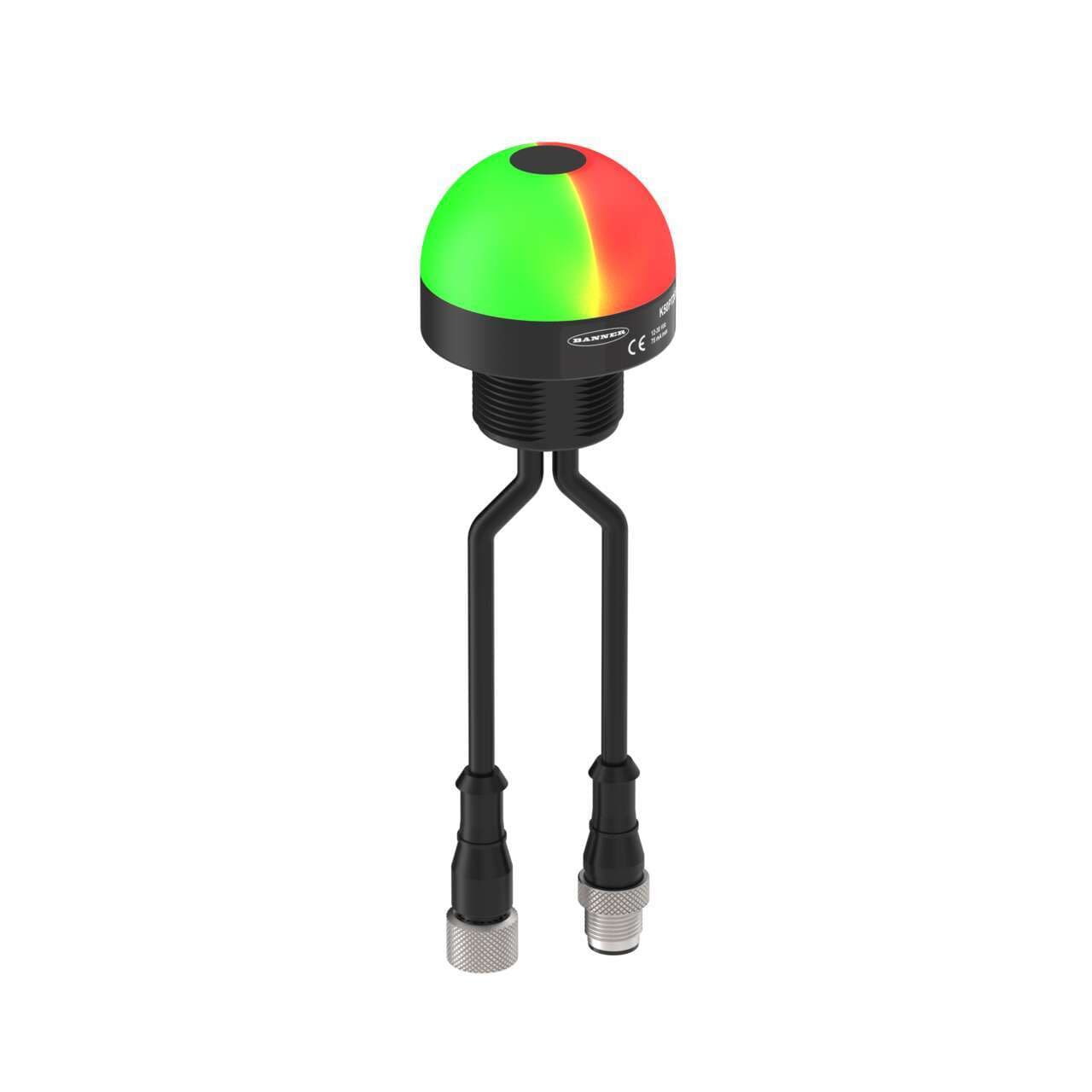

K50PFF200SQ2PS Banner Pick-to-Light Sensors

Product Details

• Weight
  167.82904 g
• Country Of Origin
  MX
• Multi-Color Device
  Simultaneous Colors On
• Wireless
  No
• Modbus RTU
  Yes
• Pro-Editor Compatible (Discrete)
  No
• Feature: Audible
  No
• IO Link
  No
• Feature: Chemical Resistant
  No
• Feature: Hazardous Area
  No
• Feature: Washdown Rated
  Yes
• PICK-IQ (Modbus RTU)
  Yes
• Button Operation
  Programmable
• Primary Window Material
  Polycarbonate Diffused
• Storage Temp (°C)
  -40 to 70
• Primary Housing Color
  Black
• Min Op. Temperature (°C)
  -40
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Max Op. Temperature (°C)
  50
• Number of Beams
  1
Environmental Rating
IP67; IP69
Max Output Response Time (ms)
300
Maximum Sensing Distance (mm)
200
Physical Dimensions (LxWxH or DxH mm)
50.0 x 67.3
Input Type
Communication Protocol
Output Type
Communication Protocol
Supply Voltage
18-30 V dc
Number of Input Pins/Conductors
4
Operation
Programmable
Pick-to-Light Function
Programmable
Max Current Color (mA)
132
Dimming Option
Programmable
Quick Disconnect Type
M12 (Euro)
Animation Option 1
Modbus Controlled
Color Input Control
Communication Protocol
Product Size (mm)
50
Color Option 1
RGB
Color Technology
RGB Configurable
Number of Colors / Segments
Programmable
Mounting Thread
M30 x 1.5
Actuation
Yes
Sensing Mode (General)
Fixed Field
Primary Housing Material
Polycarbonate
Activation Function
Optical
Housing Style
Base Mount - Dome Window
Power Source
DC
Power
DC
Cable Length (m)
2

Related documents K50PFF200SQ2PS Specs
