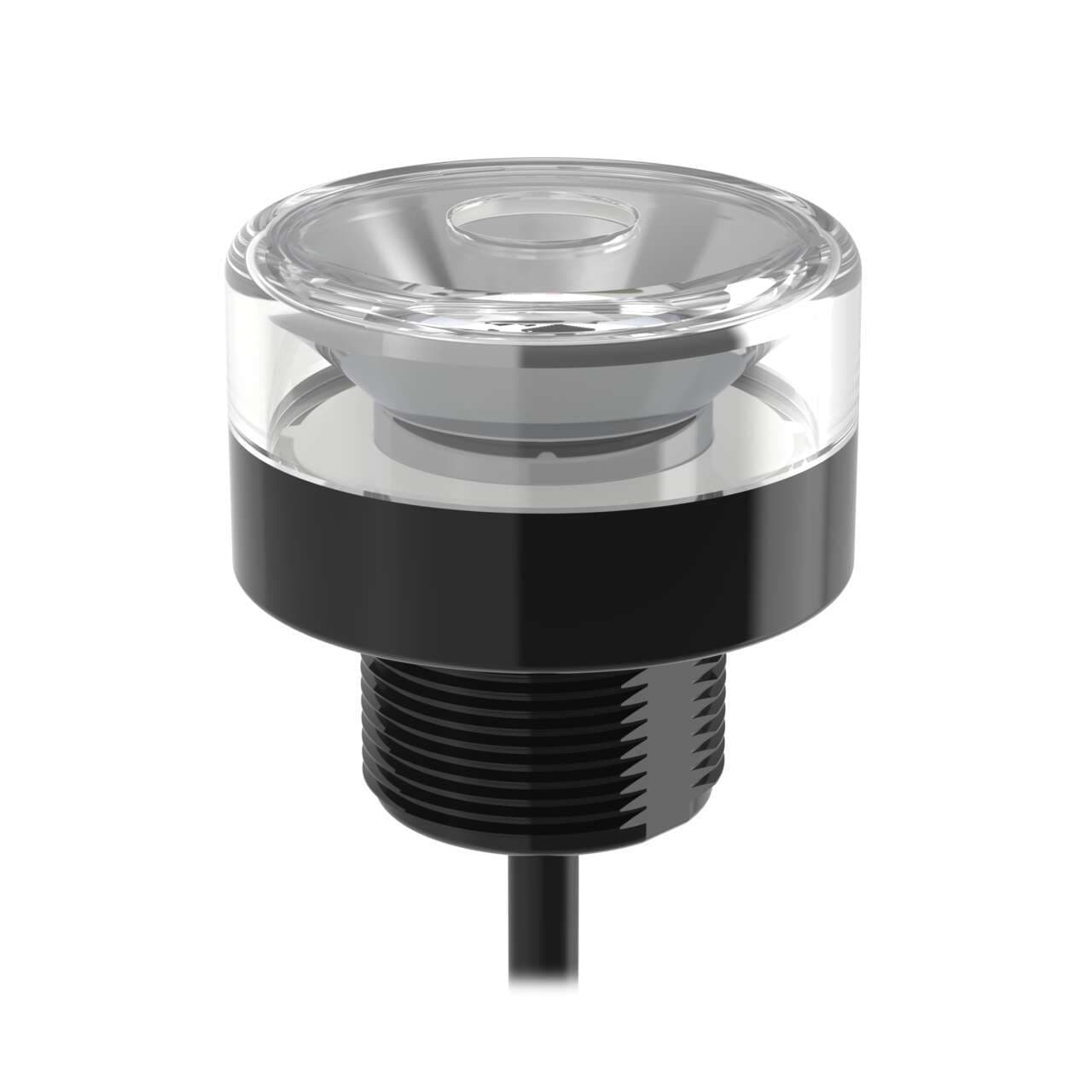

K50PBLSQP Banner Pick-to-Light Sensors
Part#:K50PBLSQP
Manufacturer:Banner
Alt. Part#:810835
Product Lifecycle:Active
Get a quick Quote!
K50 Pro with PICK-IQ Series: RGB Beacon Light: Perimeter View; Voltage: 10-30 V dc; Housing: Polycarbonate; IP69K; Input: Bimodal; Colors: Multicolor; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50PBLSQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 145.14944 g
- Country Of Origin US
- Pro-Editor Compatible (Discrete) No
- USB No
- Modbus RTU Yes
- Wireless No
- IO Link No
- Feature: Quick Disconnect Yes
- Multi-Color Device Simultaneous Colors On
- Indication Intensity High Brightness & Daylight Visible
- Feature: Audible No
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Primary Window Material Polycarbonate Clear
- PICK-IQ (Modbus RTU) Yes
- Primary Housing Color Black
- Min Op. Temperature (°C) -40
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Storage Temp (°C) -40 to 70
- Max Op. Temperature (°C) 50
- Input Type Communication Protocol
- NEMA Type and UL Type Rating UL 4X, 13
- Environmental Rating IP67; IP69
- Color Option 1 RGB
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 48.8
- Max Current Color (mA) 210
- Supply Voltage 10-30 V dc
- Number of Input Pins/Conductors 4
- Dimming Option Modbus Controlled
- Quick Disconnect Type M12 (Euro)
- Connection Pigtail QD
- Color Technology RGB Configurable
- Animation Option 1 Modbus Controlled
- Product Size (mm) 50
- Mounting Thread M30 x 1.5
- Color Input Control Communication Protocol
- Number of Colors / Segments Programmable
- Indication Yes
- Primary Housing Material Polycarbonate
- Housing Style Base Mount - Flat Window
- Power DC
- Power Source DC
- Cable Length (m) 0.15
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
K50PBLSQP Description
Banner Engineering K50PBLSQP is a high-intensity programmable industrial LED light beacon within the Beacon series. It features PICK IQ serial communication, making it RS-485 / Modbus RTU compatible, and offers 1-tier 14-color multicolor LED illumination. The beacon has a black housing with a round flat window made of polycarbonate. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. Designed for a supply voltage range of 10Vdc-30Vdc (with 12Vdc-24Vdc nominal), it supports surface or base pole mounting with an M30 thread. The beacon has a 50mm / 2" cap diameter and can operate in ambient air temperatures ranging from -40°C to +50°C. It is rated with a degree of protection of IP67 and IP69K, and has a current consumption of 210mA.
