K50LNYXXPQ Banner Pick-to-Light Sensors

K50LNYXXPQ on Powermatic Associates
Banner

Part#:K50LNYXXPQ

Manufacturer:Banner

Alt. Part#:87306

Product Lifecycle:Active

Get a quick Quote!

K50LN Series EZ-LIGHT: 1-Color Hazardous Area Indicator; Protection Type: Ex nA_Ex tc; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Yellow; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50LNYXXPQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    154.22128 g
  • Country Of Origin
    MX
  • Max Current Color (mA)
    25
  • Color Technology
    Standard LED
  • Product Size (mm)
    50
  • Housing Style
    Base Mount - Dome Window
  • Animation Option 1
    Solid On
  • Power
    DC
  • Cable Length (m)
    0.15
  • Power Source
    DC
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • Feature: Quick Disconnect
    Yes
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    Yes
  • Feature: Washdown Rated
    Yes
  • Environmental Rating
    IP67; IP69
  • Primary Window Material
    Polycarbonate Diffused
  • Min Op. Temperature (°C)
    -40
  • Primary Housing Color
    Black
  • Max Op. Temperature (°C)
    50
  • Input Type
    PNP
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 69.0
  • Supply Voltage
    10-30 V dc
  • Color Option 1
    Yellow
  • Number of Input Pins/Conductors
    4
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Number of Colors / Segments
    1
  • Indication
    Yes
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    M30 x 1.5
  • Primary Housing Material
    Polycarbonate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50LNYXXPQ Description

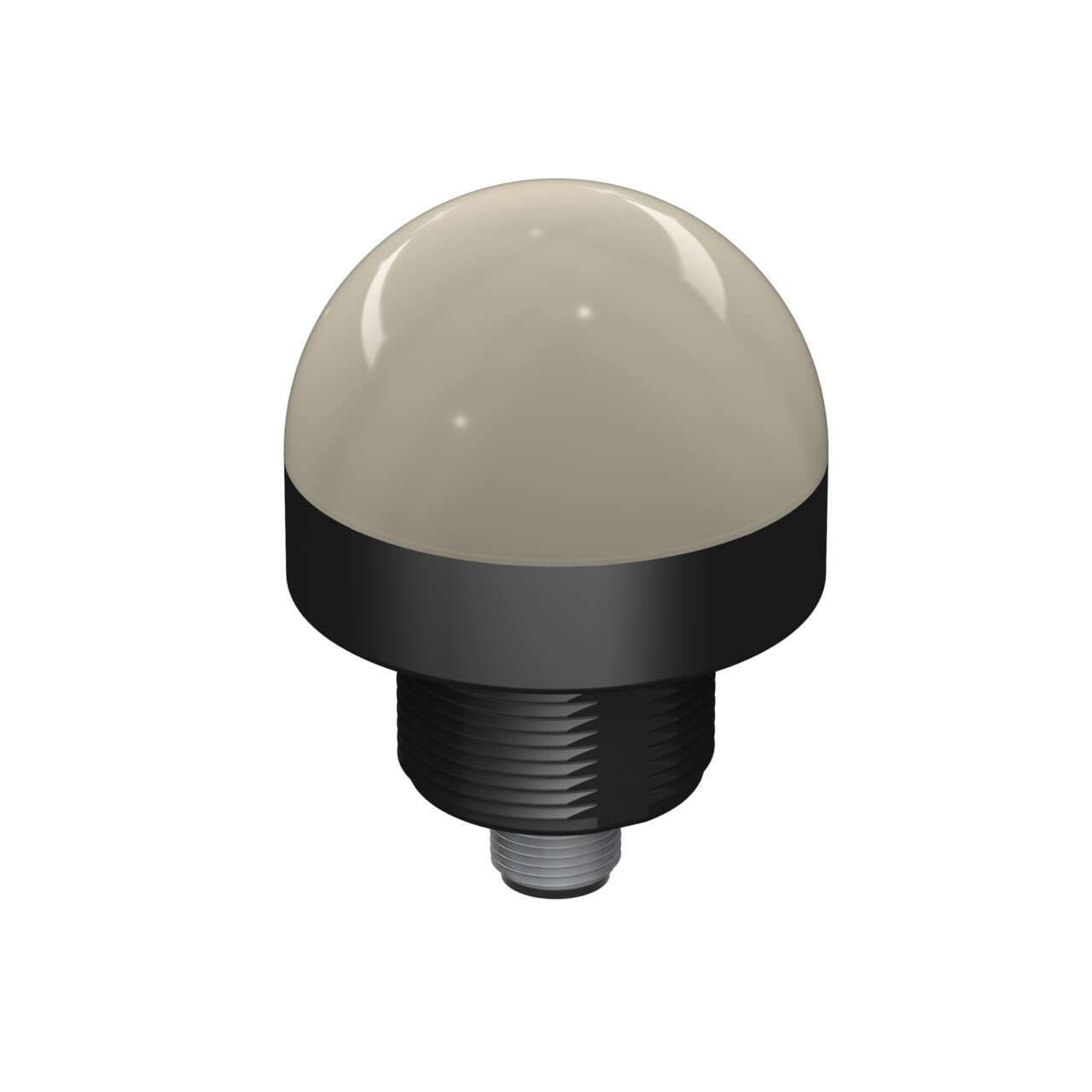

Banner Engineering K50LNYXXPQ is a pilot light from the EZ-LIGHT series designed for hazardous areas, complying with ATEX / IECEx / Ex nA / Ex tc standards. It features a 1-color White LED illumination within a black housing. The design includes a dome-shaped window made from diffused polycarbonate (PC) and a base of the same material. This part is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 10Vdc-30Vdc, with a nominal range of 12Vdc-24Vdc. The K50LNYXXPQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread. The dome diameter measures 50mm / 2 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The current consumption is 25mA, and it includes 1 x digital input (10-30Vdc; PNP) for color control.

Related documents K50LNYXXPQ Specs

K50LNYXXPQ 171983.pdf
