K50LGRXA120 Banner Pick-to-Light Sensors

K50LGRXA120 on Powermatic Associates
Banner

Part#:K50LGRXA120

Manufacturer:Banner

Alt. Part#:15036

Product Lifecycle:Active

Get a quick Quote!

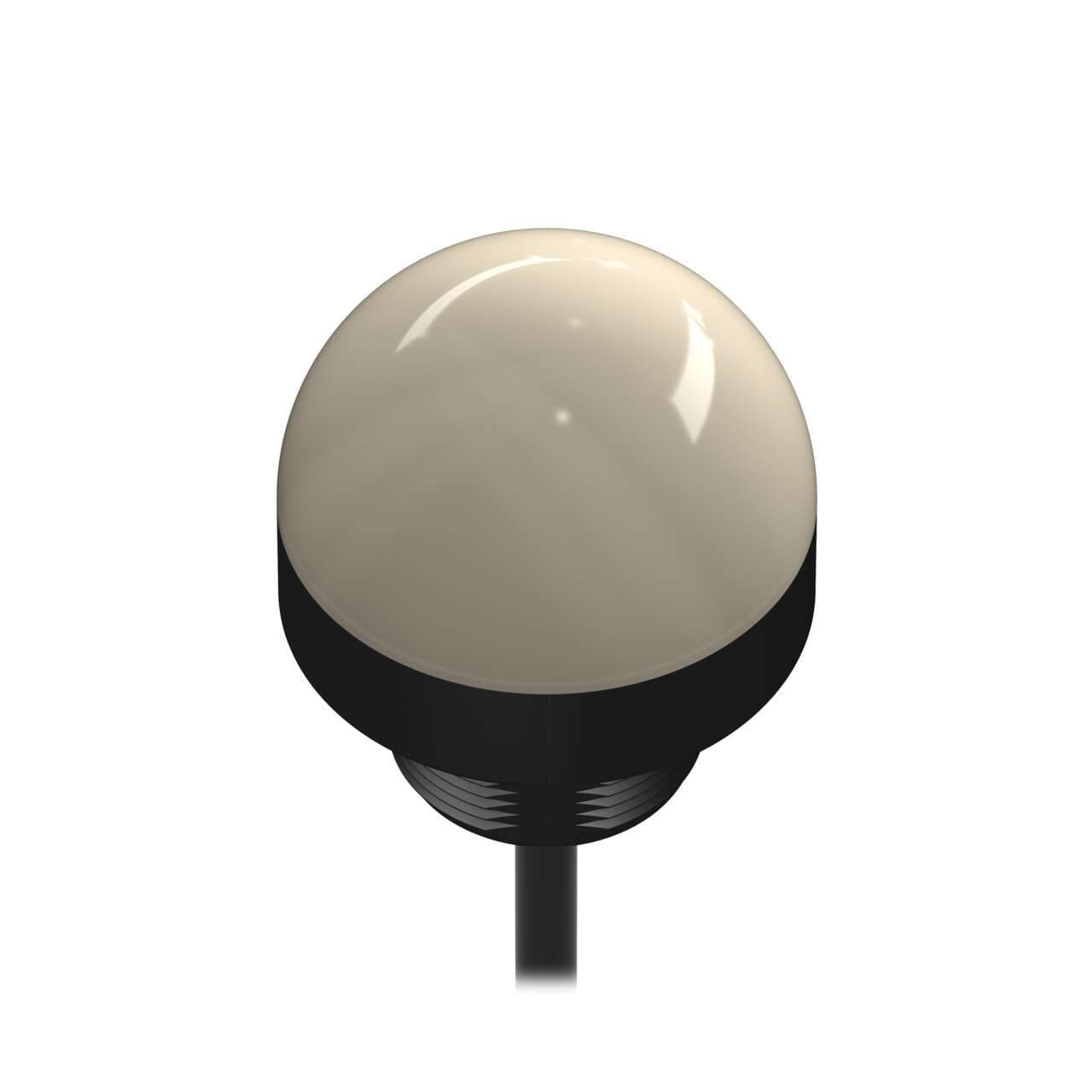

K50 Series EZ-LIGHT: 2-Color AC Indicator; Voltage: 85-130 V ac; Housing: Polycarbonate; IP67; Colors: Green Red; 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50LGRXA120 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    226.796 g
  • Country Of Origin
    MX
  • Feature: Chemical Resistant
    No
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Modbus RTU
    No
  • Feature: Hazardous Area
    No
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Primary Housing Color
    Black
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 55°C
  • Max Op. Temperature (°C)
    50
  • Feature: Washdown Rated
    Yes
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 58.0
  • Min Op. Temperature (°C)
    -40
  • Environmental Rating
    IP67; IP69
  • Max Input Response Time (ms)
    1
  • Connection
    Cable
  • Color Option 2
    Red
  • Input Type
    AC
  • Animation Option 1
    Solid On
  • Supply Voltage
    85-130 V ac
  • Number of Input Pins/Conductors
    4
  • Max Current Color (mA)
    15
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Mounting Thread
    M30 x 1.5
  • Primary Housing Material
    Polycarbonate
  • Indication
    Yes
  • Power Source
    AC
  • Housing Style
    Base Mount - Dome Window
  • Product Size (mm)
    50
  • Number of Colors / Segments
    2
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power
    AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50LGRXA120 Description

Banner Engineering K50LGRXA120 is a pilot light from the EZ-LIGHT series designed to serve as an LED pilot light indicator. It features a 2-color G/R color pattern LED illumination within a black housing. The dome window and base are made from polycarbonate (PC), ensuring a diffused light output. This part is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style quick disconnect (QD) connector. It operates on a supply voltage range of 18Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K50LGRXA120 can be mounted on a surface, base, or pole and requires a 30mm hole with an M30 thread for installation. The dome has a diameter of 50mm / 2 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The current consumption is 40mA, and it includes 2 x digital inputs (18-30Vdc; NPN) for color control.

Related documents K50LGRXA120 Specs

K50LGRXA120 134548.pdf
