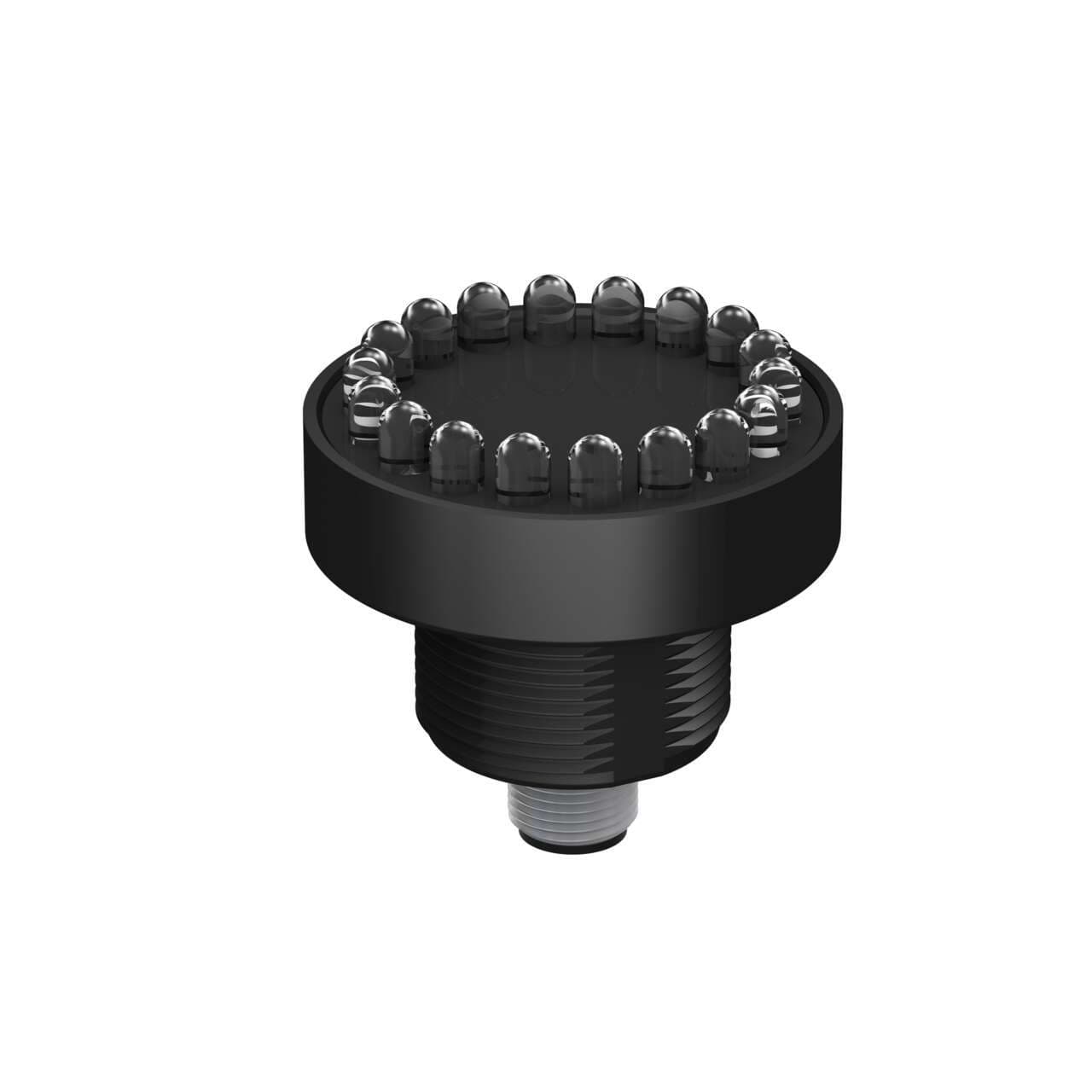

K50LDGA120Q Banner Pick-to-Light Sensors

K50LDGA120Q on Powermatic Associates
Banner

Part#:K50LDGA120Q

Manufacturer:Banner

Alt. Part#:14524

Product Lifecycle:Active

Get a quick Quote!

K50 Series EZ-LIGHT Daylight Visible 1-Color Indicator; Voltage: 85-130 V ac; Housing: Polycarbonate; IP67; Colors: Green; 3-pin Micro-style Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50LDGA120Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    158.7572 g
  • Country Of Origin
    US
  • Indication Intensity
    High Brightness & Daylight Visible
  • Feature: Hazardous Area
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • Wireless
    No
  • Primary Housing Color
    Black
  • Max Op. Temperature (°C)
    50
  • Min Op. Temperature (°C)
    -40
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Environmental Rating
    IP67
  • Feature: Audible
    No
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 49.5
  • Max Input Response Time (ms)
    0.5
  • Input Type
    AC
  • Supply Voltage
    85-130 V ac
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Lumens Color 1
    14.0
  • Number of Input Pins/Conductors
    3
  • Connection
    Integral QD
  • Animation Option 1
    Solid On
  • Max Current Color (mA)
    16
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Product Size (mm)
    50
  • Power
    AC
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Cable Length (m)
    2
  • Power Source
    AC
  • Number of Colors / Segments
    1
  • Indication
    Yes
  • Housing Style
    Base Mount - No Window
  • Primary Housing Material
    Polycarbonate
  • Mounting Thread
    M30 x 1.5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50LDGA120Q Description

Banner Engineering K50LDGA120Q is a pilot light from the EZ-LIGHT series designed for LED pilot light indication. It features daylight-visible 1-color green LED illumination within a black housing. The round shape of the part does not include a window, and it is constructed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base for durability. It comes pre-wired with a 2m / 6.5ft 2-wire cable terminated with bare end flying leads for easy installation. The K50LDGA120Q operates on a supply voltage of 85Vac-130Vac, accommodating 100Vac, 110Vac, and 120Vac nominal values. It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The body diameter is 50mm / 2 inches, and it can operate in ambient air temperatures ranging from -40°C to +50°C. This pilot light is rated with an IP67 degree of protection, ensuring resistance to dust and water ingress. It has a current consumption of 16mA and includes 1 x digital input (85-130Vac) for color control.

Related documents K50LDGA120Q Specs

K50LDGA120Q 152843.pdf

Manufacturer warranty

$128.00

Request a quote, and we will send availability within minutes.

Select Qty:

$128.00

$128.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
