K30APTGRF2Q Banner Pick-to-Light Sensors

K30APTGRF2Q on Powermatic Associates
Banner

Part#:K30APTGRF2Q

Manufacturer:Banner

Alt. Part#:85202

Product Lifecycle:Active

Get a quick Quote!

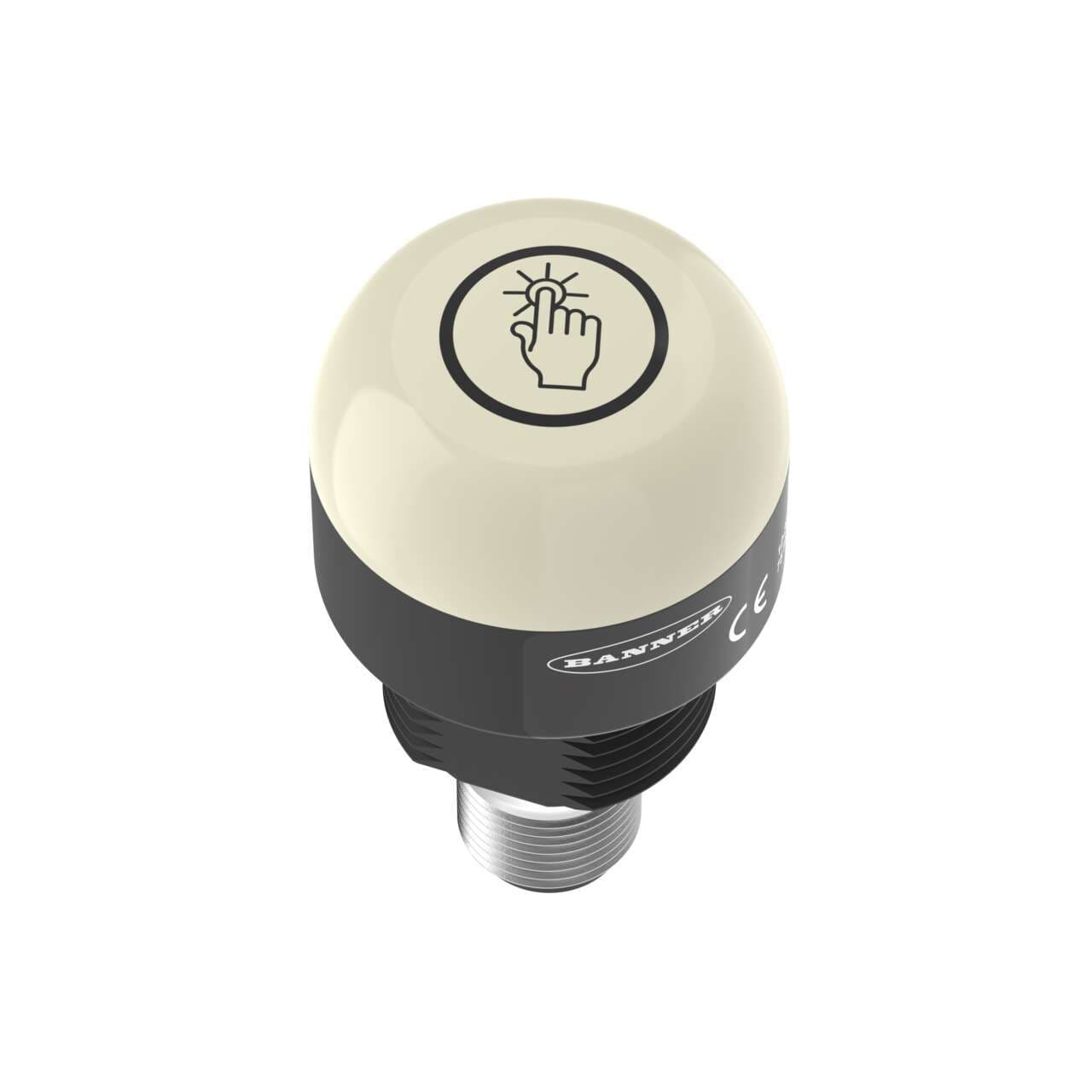

K30 Series: 2-Input-Color Touch Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green - Power Applied, Red - Input Active; M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K30APTGRF2Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Chemical Resistant
    No
  • Button Operation
    Momentary
  • Feature: Hazardous Area
    No
  • Feature: Quick Disconnect
    Yes
  • IO Link
    No
  • Feature: Audible
    No
  • Multi-Color Device
    Single Color On
  • Wireless
    No
  • Modbus RTU
    No
  • Max Op. Temperature (°C)
    50
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Diffused
  • Max Output Response Time (ms)
    150
  • Primary Housing Color
    Black
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Max Input Response Time (ms)
    300
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Environmental Rating
    IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 54.5
  • Input Type
    PNP
  • Output Type
    PNP
  • Color Option 2
    Red
  • Supply Voltage
    12-30 V dc
  • Operation
    Normally Open
  • Pick-to-Light Function
    F2
  • Number of Input Pins/Conductors
    4
  • Animation Option 1
    Solid On
  • Connection
    Integral QD
  • Max Current Color (mA)
    55
  • Quick Disconnect Type
    M12 (Euro)
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Product Size (mm)
    30
  • Number of Colors / Segments
    2
  • Actuation
    Yes
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    M22 x 1.5
  • Power Source
    DC
  • Primary Housing Material
    Polycarbonate
  • Activation Function
    Capacitive Touch
  • Housing Style
    Base Mount - Dome Window
  • Power
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K30APTGRF2Q Description

Banner Engineering K30APTGRF2Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination in a black housing. It features a dome window shape with both the window and base made from polycarbonate (PC), ensuring durability. This part is equipped with a 4-pin M12 Euro-style QD connector for connectivity and operates within a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface, base, or pole flush with a 22mm hole and M22 thread. The dome diameter measures 30mm or approximately 1-3/16 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and boasts a high degree of protection with ratings of IP67, IP69K, NEMA 4X, and NEMA 13. The operating mode includes a momentary job light that displays green when power is applied and red when the input is active. Touch activation triggers the output, with a normally open (NO) touch output configuration. The current consumption is 55mA, and it features 1 x digital input for JOB color control and 1 x digital output for touch, both supporting 12-30Vdc PNP.

Related documents K30APTGRF2Q Specs

K30APTGRF2Q 170456.pdf
