K30APT2FYRCQP Banner Pick-to-Light Sensors

K30APT2FYRCQP on Powermatic Associates
Banner

Part#:K30APT2FYRCQP

Manufacturer:Banner

Alt. Part#:801591

Product Lifecycle:Active

Get a quick Quote!

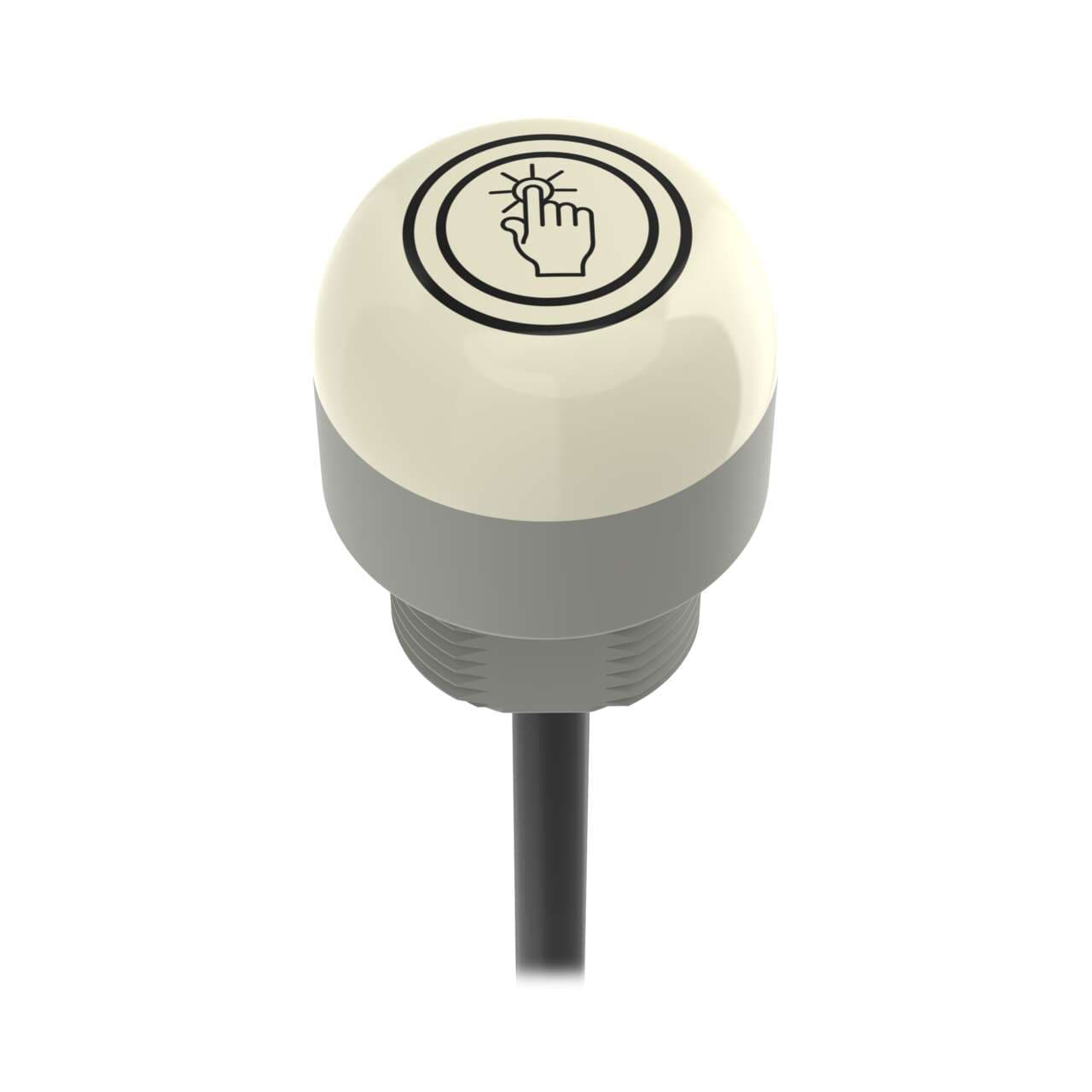

K30 Series EZ-LIGHT: 2-Color Touch Sensor Gen 2 FDA; Touch Light Overrides Job Light; Voltage: 12-30 V dc; Housing: FDA Copolyester; IP67 IP69K; Input: PNP (NO); Colors: Yellow Red; 150 mm (6 in) 5-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K30APT2FYRCQP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    18.14368 g
  • Country Of Origin
    MX
  • Job Light
    Yellow
  • Multi-Color Device
    Single Color On
  • Primary Window Material
    FDA Polycarbonate Diffused
  • Feature: Chemical Resistant
    No
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Button Operation
    Momentary
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Min Op. Temperature (°C)
    -40
  • Storage Temp (°C)
    -40 to 70
  • Max Op. Temperature (°C)
    50
  • Primary Housing Color
    FDA Gray
  • Max Input Response Time (ms)
    300
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Supply Voltage
    12-30 V dc
  • Operation
    Normally Open
  • Output Type
    PNP
  • Environmental Rating
    IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 41.0
  • Max Output Response Time (ms)
    150
  • Pick-to-Light Function
    C
  • Number of Input Pins/Conductors
    5
  • Input Type
    PNP
  • Lumens Color 2
    1.7
  • Color Option 2
    Red
  • Lumens Color 1
    4.4
  • Quick Disconnect Type
    M12 (Euro)
  • Color 1 - Wavelength/Color Temp/Coordinates
    580 nm
  • Color Option 1
    Yellow
  • Acknowledge (Sense) Light
    Red
  • Max Current Color (mA)
    55
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Connection
    Pigtail QD
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Actuation
    Yes
  • Mounting Thread
    M22 x 1.5
  • Power Source
    DC
  • Product Size (mm)
    30
  • Number of Colors / Segments
    2
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Activation Function
    Capacitive Touch
  • Housing Style
    Base Mount - Dome Window
  • Primary Housing Material
    FDA Copolyester
  • Power
    DC
  • Cable Length (m)
    0.15

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K30APT2FYRCQP Description

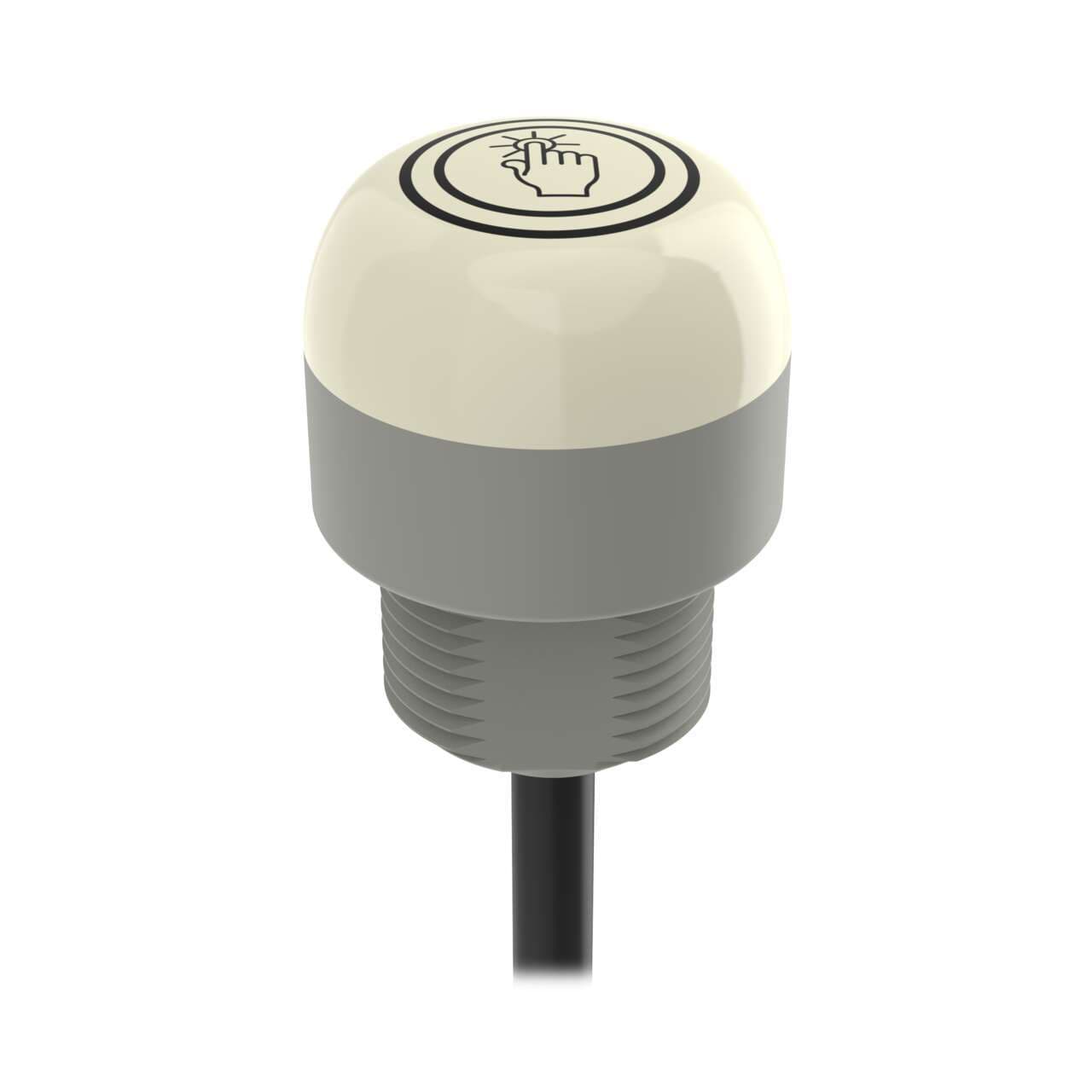

Banner Engineering K30APT2FYRCQP, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 hygienic features using FDA-grade materials for both its LED illumination and construction. It features a gray housing with a dome-shaped window made from FDA-grade polycarbonate and FDA Copolyester, ensuring durability and compliance with health standards. This part is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style QD connector, facilitating easy and secure connections. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage, and can be mounted on a surface, base, or pole flush using a 22mm hole with an M22 thread. The device has a 30mm / 1-3/16" dome diameter and is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It offers a high degree of protection with IP67 and IP69K ratings, making it suitable for challenging environments. The operating mode includes a momentary job light (Yellow) that activates when the job input is active, and a touch activates the output and sensing light (Red) with a Normally Open (NO) touch output. It has a current consumption of 55mA and includes 1 x digital input (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch functionality.

Related documents K30APT2FYRCQP Specs

K30APT2FYRCQP 189834.pdf
