IVU2PTGXC Banner Barcode Readers

IVU2PTGXC on Powermatic Associates
Banner

Part#:IVU2PTGXC

Manufacturer:Banner

Alt. Part#:90775

Product Lifecycle:Active

Get a quick Quote!

iVu PLUS TG Gen2 Sensor with Ethernet; For C-Mount Lens; Requires Power Cordset and Bracket; Ethernet and USB Cordset Optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PTGXC Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    625.95696 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PTGXC Description

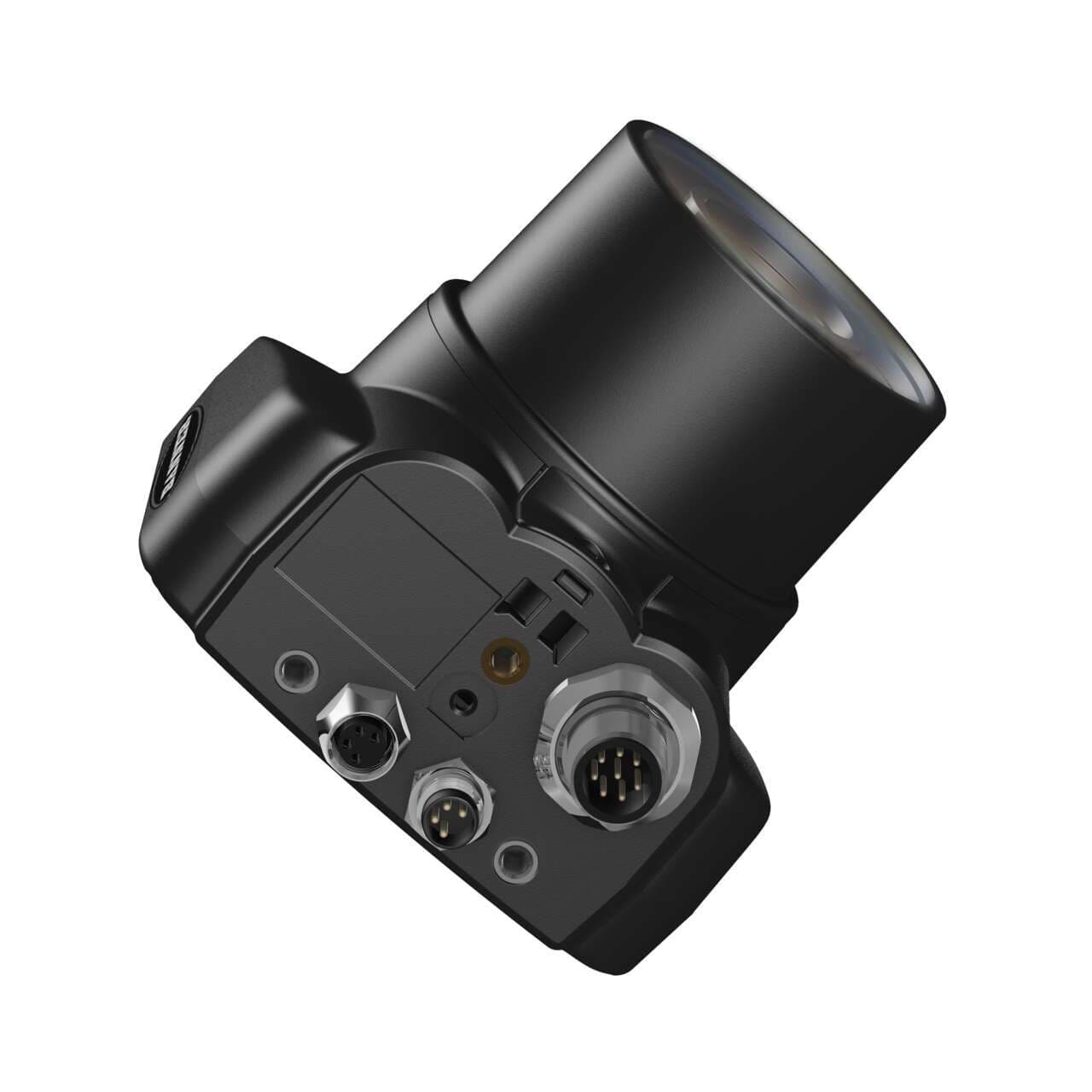

Banner Engineering IVU2PTGXC is a grayscale image vision sensor featuring a 0.36 Megapixel resolution. It is designed with a built-in touchscreen and has the capacity to store up to 30 inspections. The sensor is housed in a black thermoplastic material, ensuring durability. It comes pre-equipped with a 12-pin Euro-style M12 male connector for power supply, alongside 2 x 4-pin M8 connectors (female + male) for USB and Ethernet connections. This model supports multiple communication protocols, including Ethernet/IP, Modbus TCP, RS-232, and PROFINET, offering versatile integration options. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The IVU2PTGXC can be mounted using a C-mount and is designed to operate within an ambient air temperature range of 0 to +45°C. It measures 79 mm in height, 81 mm in width, and 52 mm in depth. The sensor offers a degree of protection rated at IP67 and includes 1 x digital output (PNP/NPN transistor). It features a refresh rate of 60 frames per second.

Related documents IVU2PTGXC Specs

IVU2PTGXC 178442.pdf

Manufacturer warranty

$2,151.00

Request a quote, and we will send availability within minutes.

Select Qty:

$2,151.00

$2,151.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
