IVU2PTGX08 Banner Barcode Readers

IVU2PTGX08 on Powermatic Associates
Banner
  • IVU2PTGX08
  • IVU2PTGX08

Part#:IVU2PTGX08

Alt. Part#:90771

Manufacturer:Banner

Category:Barcode Readers

Product Lifecycle:Active

Product description

iVu PLUS TG Gen2 Sensor with Ethernet; No Light and 8 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Product Details

  • Weight
    625.95696 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PTGX08 on Powermatic Associates is $1,942.00. Order now.

About the product

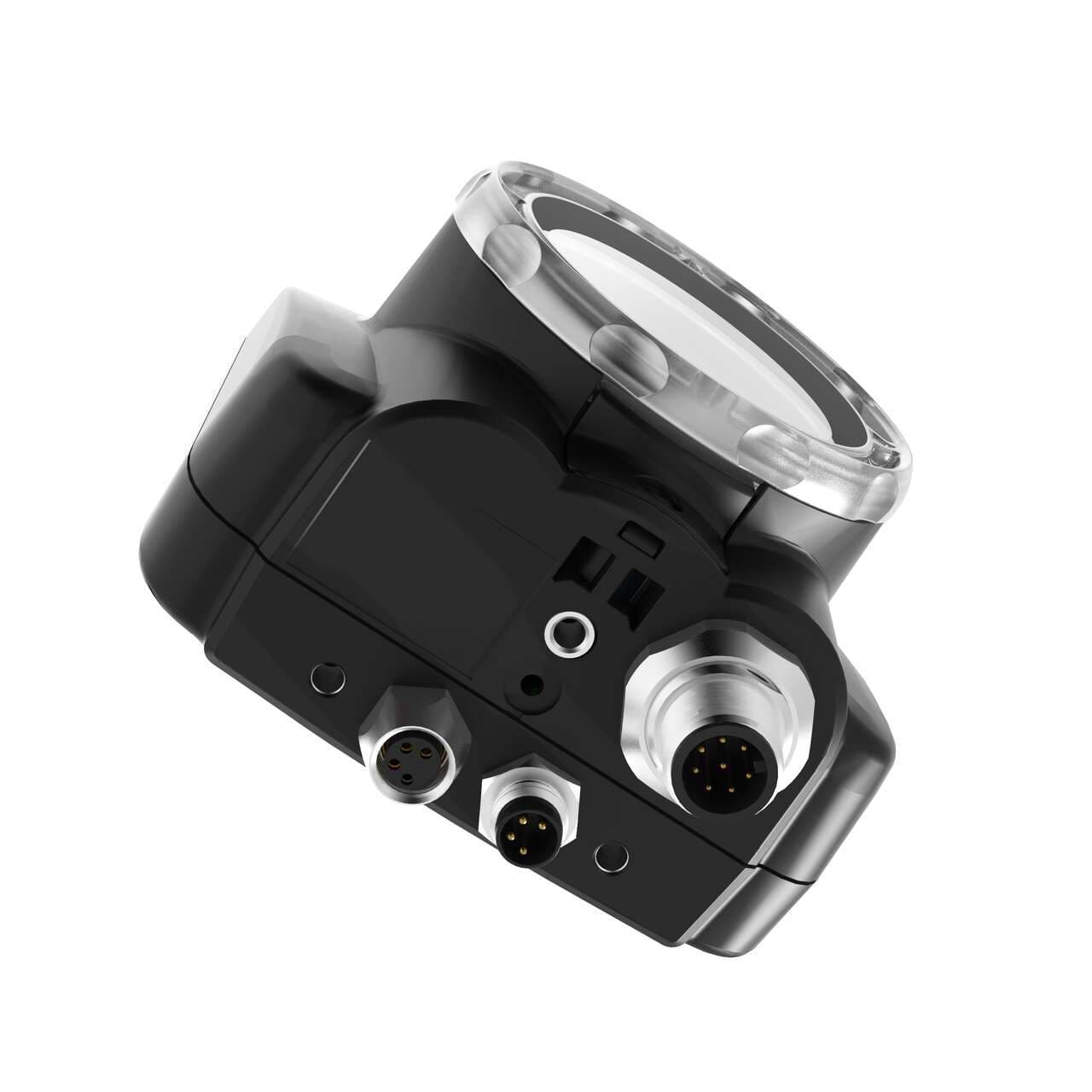

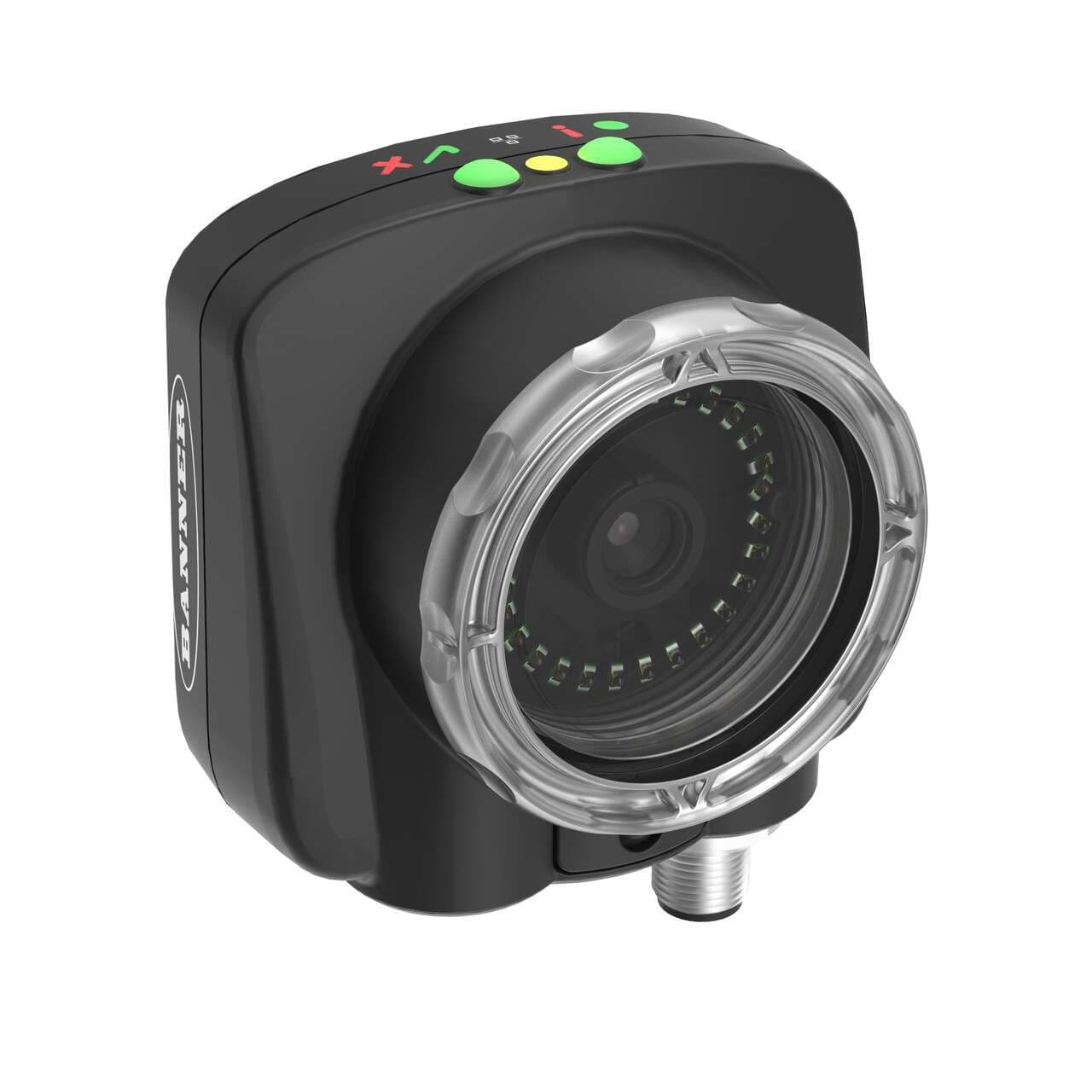

Banner Engineering IVU2PTGX08 is a grayscale image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a built-in touchscreen and an 8mm optical lens. This sensor can store up to 30 inspections and supports PCCC. The housing is black, made from thermoplastic with an acrylic window. It comes pre-equipped with a 12-pin Euro-style M12 male connector for power supply, and two 4-pin M8 connectors (female + male) for USB and Ethernet connections. The IVU2PTGX08 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, RS-232, and PROFINET. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The sensor is mountable via a C-mount and measures 79mm in height, 81mm in width, and 52mm in depth. It is designed to operate in ambient air temperatures ranging from 0 to +45°C and offers a degree of protection rated at IP67. The sensor features 1 x digital output (PNP/NPN transistor) and operates with a refresh rate of 60fps.

IVU2PTGX08 Related Documents

178442.pdf

This item can ship within 0 day!

Manufacturer warranty

IVU2PTGX08 Banner

$1,942.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

0

Select Qty:

$1,942.00

$1,942.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
