IVU2PTGW06 Banner Barcode Readers

IVU2PTGW06 on Powermatic Associates
Banner
  • IVU2PTGW06
  • IVU2PTGW06

Part#:IVU2PTGW06

Alt. Part#:90764

Manufacturer:Banner

Category:Barcode Readers

Product Lifecycle:Active

Product description

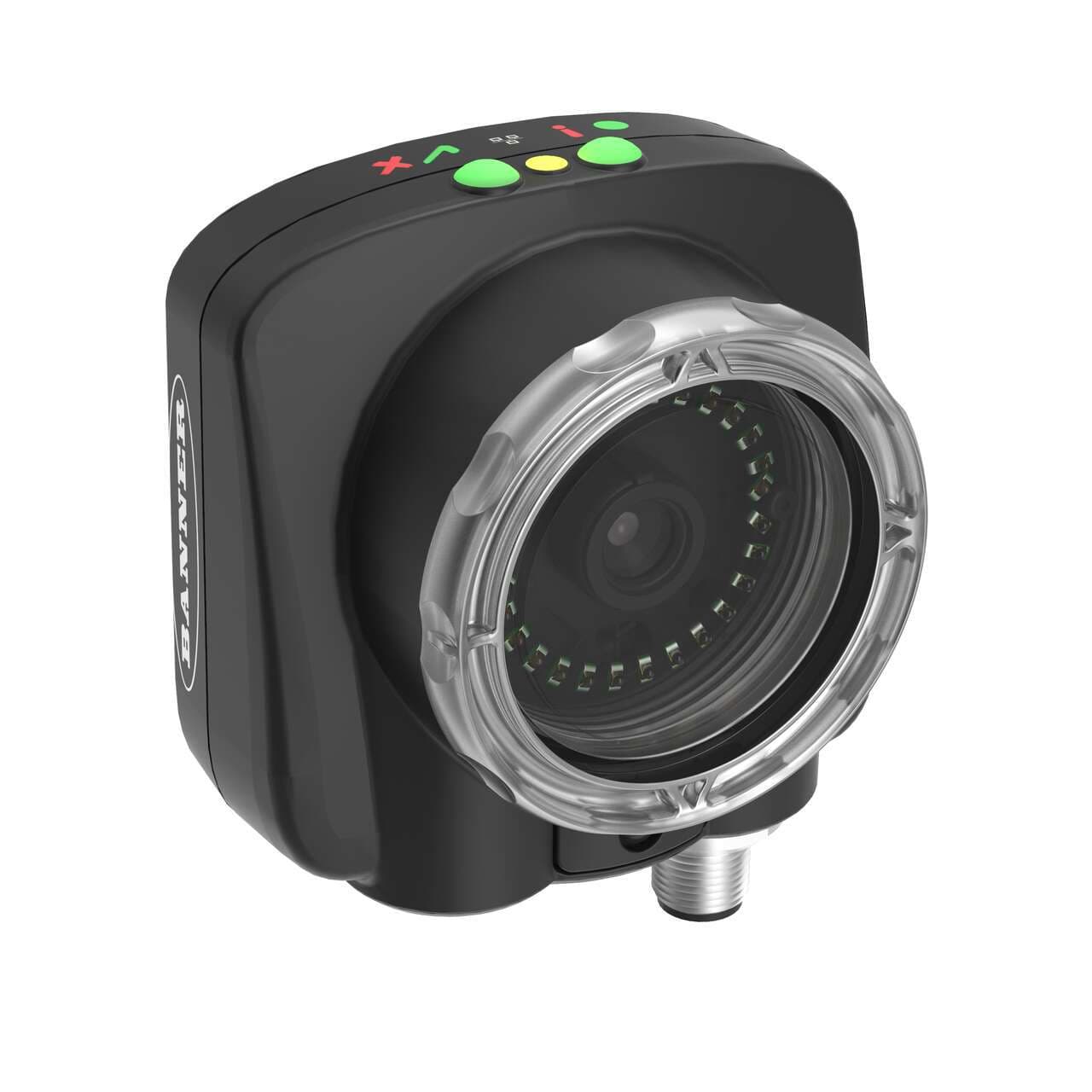

iVu PLUS TG Gen2 Sensor with Ethernet; White Ring Light and 6 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Product Details

  • Weight
    625.95696 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PTGW06 on Powermatic Associates is $2,082.00. Order now.

About the product

Banner Engineering IVU2PTGW06 is a grayscale image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a built-in touchscreen and a 6mm optical lens, complemented by a white LED ring light for illumination. This sensor can store up to 30 inspections and supports PCCC. The housing is black, made from thermoplastic with an acrylic window. It comes pre-equipped with a 12-pin Euro-style M12 male connector for power supply, alongside 2 x 4-pin M8 connectors (female + male) for USB and Ethernet connections. The IVU2PTGW06 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, RS-232, and PROFINET. It operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The sensor offers a C-mount mounting mode, has a net height of 79 mm, a width of 81 mm, and a depth of 52 mm. It is designed to operate in ambient air temperatures ranging from 0 to +45°C and is rated with an IP67 degree of protection. The device features 1 x digital output (PNP/NPN transistor), a type of lens of 6mm, and a refresh rate of 60fps.

IVU2PTGW06 Related Documents

178442.pdf

This item can ship within 0 day!

Manufacturer warranty

IVU2PTGW06 Banner

$2,082.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

0

Select Qty:

$2,082.00

$2,082.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
