IVU2PTGW04 Banner Barcode Readers

Name: IVU2PTGW04
Brand: Banner
Price: 2082 USD
Availability: BackOrder

Part#:IVU2PTGW04

Alt. Part#:90763

Manufacturer:Banner

Category:Barcode Readers

Product Lifecycle:Active

Product description

iVu PLUS TG Gen2 Sensor with Ethernet; White Ring Light and 4.3 mm Lens; Requires Power Cordset and Bracket; Ethernet and USB Cordset Optional

Product Details

Weight
625.95696 g
Country Of Origin
CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PTGW04 on Powermatic Associates is $2,082.00. Order now.

About the product

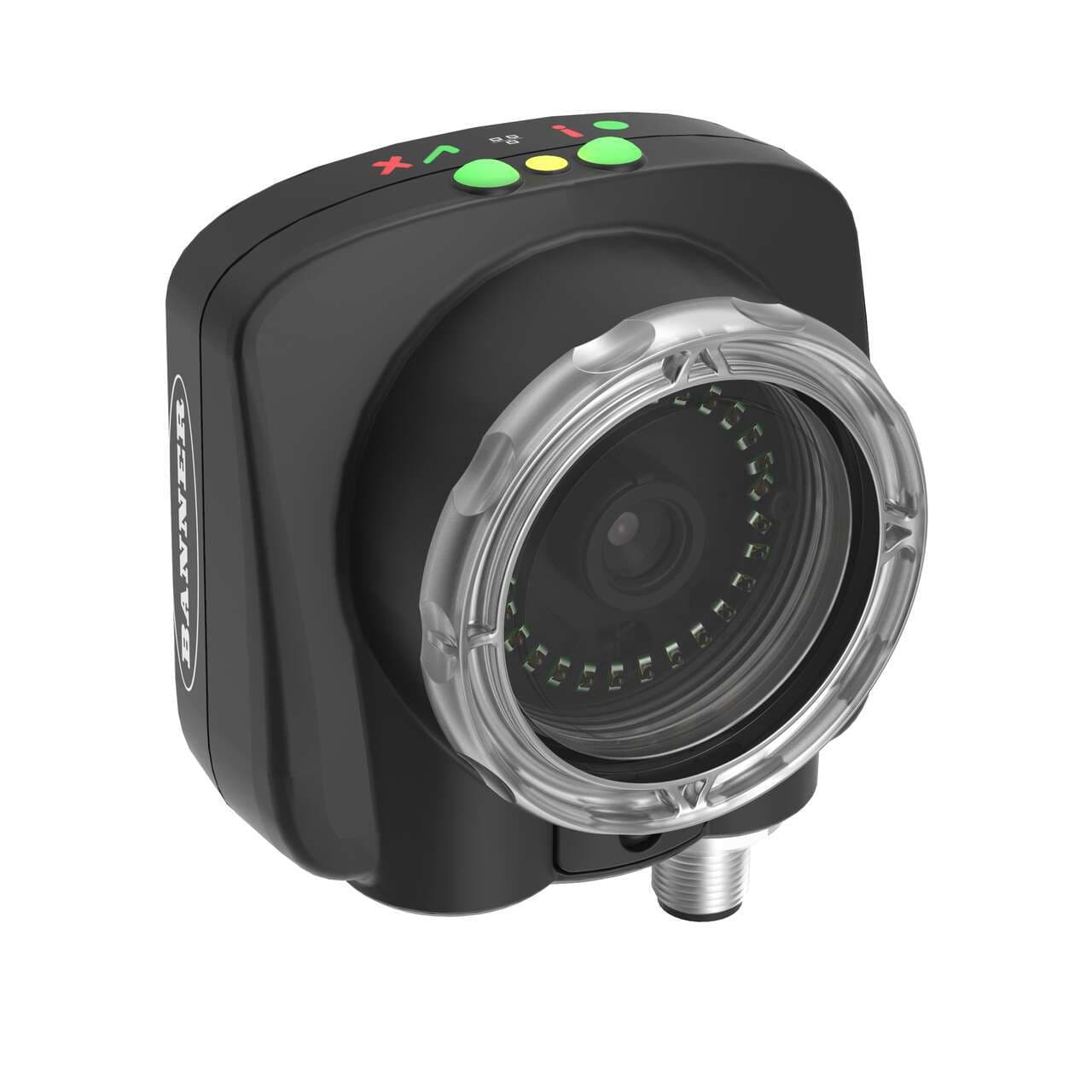

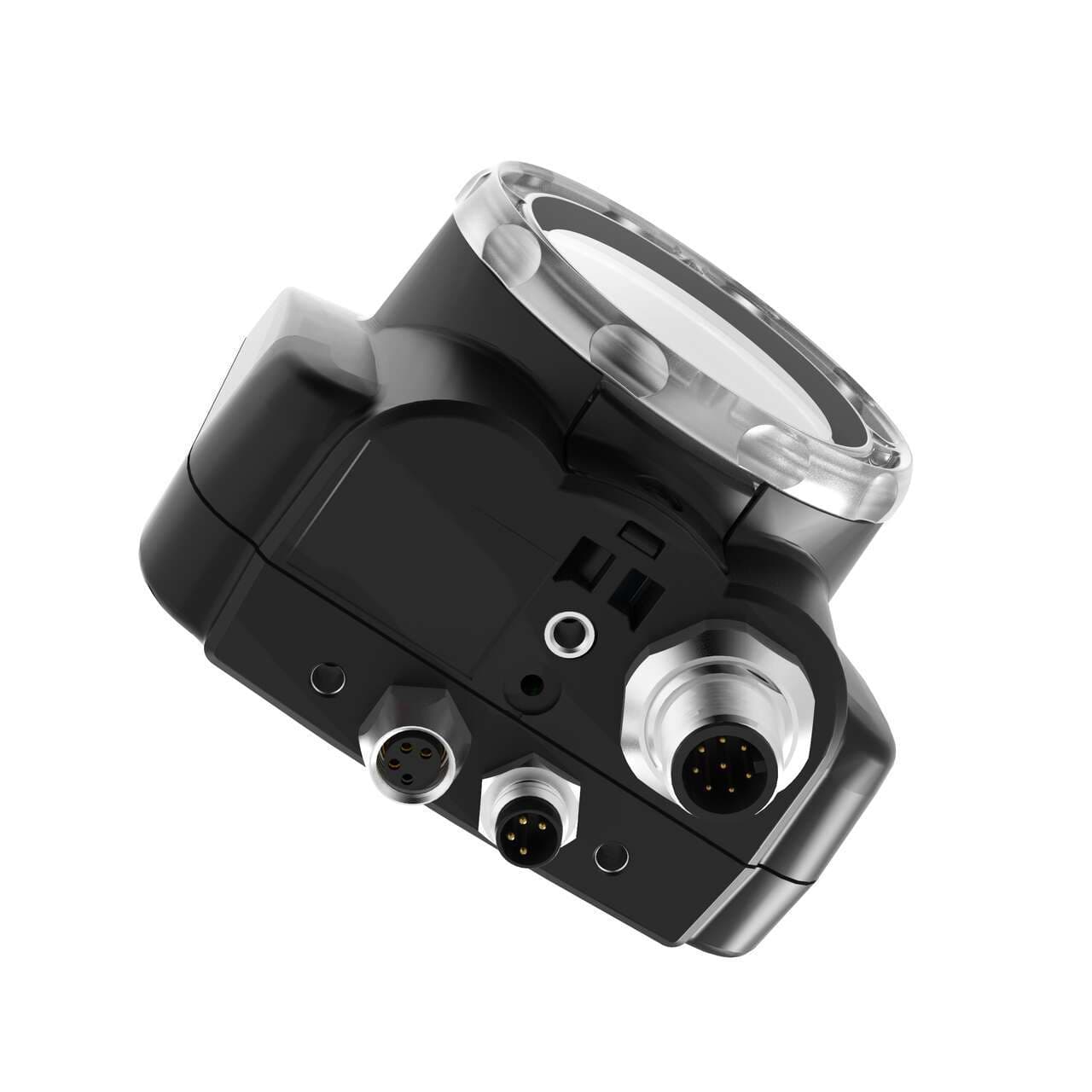

Banner Engineering IVU2PTGW04 is a grayscale image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a built-in touchscreen and a 4.3mm optical lens, complemented by a white LED ring light for illumination. This sensor can store up to 30 inspections and supports PCCC. The housing is black, made from thermoplastic with an acrylic window. It offers a variety of connection types, including a 12-pin Euro-style M12 male connector for power supply, and two 4-pin M8 connectors (female and male) for USB and Ethernet connections. The IVU2PTGW04 supports multiple communication protocols such as Ethernet/IP, Modbus TCP, RS-232, and PROFINET. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The sensor is mounted using a C-mount and has dimensions of 79 mm in height, 81 mm in width, and 52 mm in depth. It can operate in ambient air temperatures ranging from 0 to +45°C and is rated with an IP67 degree of protection. Additionally, it features 1 x digital output (PNP/NPN transistor), a refresh rate of 60fps, and is equipped with a 4.3mm type lens.

IVU2PTGW04 Related Documents

178442.pdf

This item can ship within 0 day!

Manufacturer warranty

IVU2PTGW04 Banner

$2,082.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$2,082.00

$2,082.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
