IVU2PTGI12 Banner Barcode Readers

Name: IVU2PTGI12
Brand: Banner
Price: 2082 USD
Availability: BackOrder

Part#:IVU2PTGI12

Alt. Part#:90760

Manufacturer:Banner

Category:Barcode Readers

Product Lifecycle:Active

Product description

iVu PLUS TG Gen2 Sensor with Ethernet; IR Ring Light and 12 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Product Details

Weight
571.52592 g
Country Of Origin
CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PTGI12 on Powermatic Associates is $2,082.00. Order now.

About the product

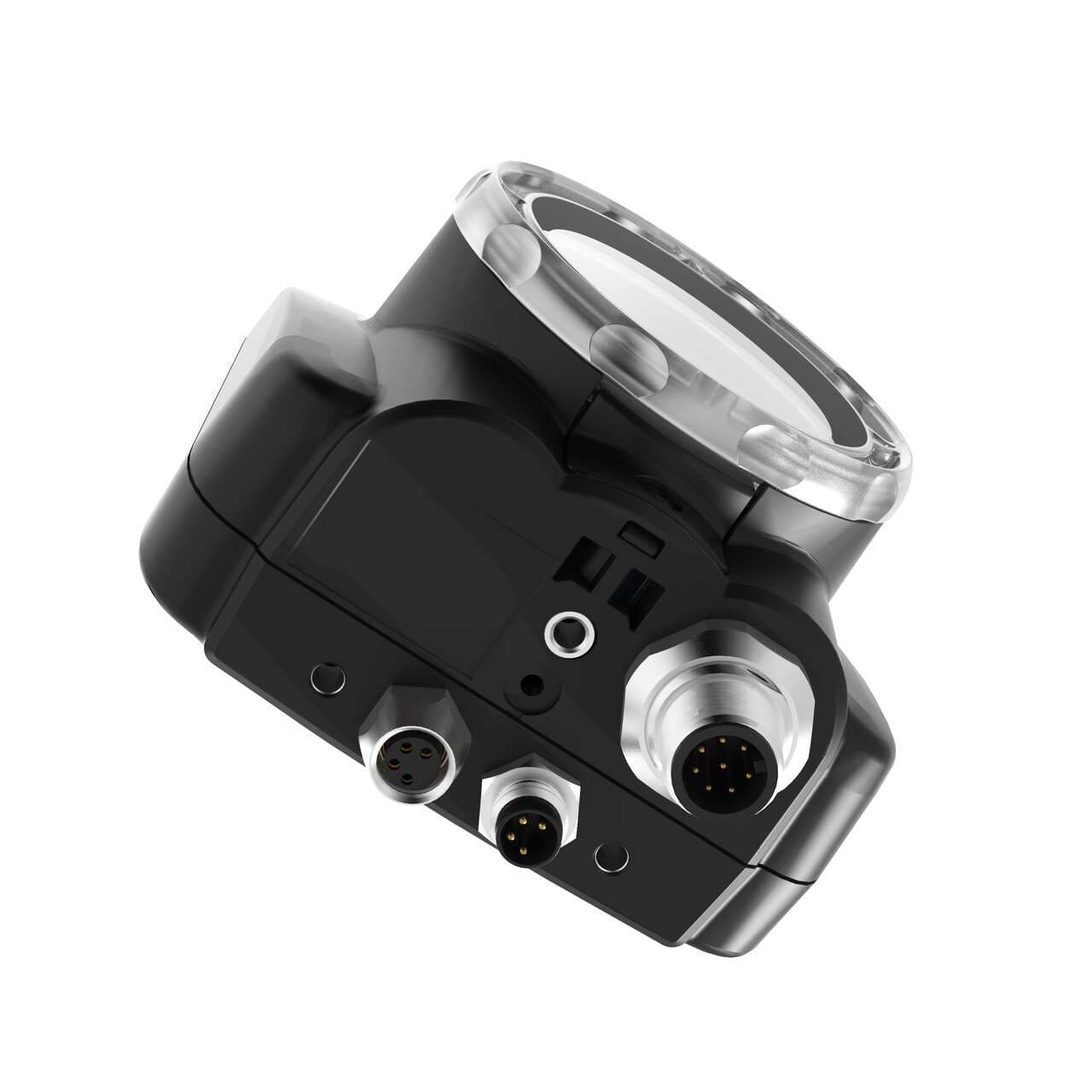

Banner Engineering IVU2PTGI12 is a grayscale image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a built-in touchscreen and a 12mm optical lens. This sensor is equipped with an infrared (IR) LED ring light for illumination and has the capacity to store up to 30 inspections. The housing is black, made from thermoplastic with an acrylic window. For connectivity, it comes pre-equipped with a 12-pin Euro-style M12 male connector for power supply, alongside 2 x 4-pin M8 connectors (female + male) for USB and Ethernet connections. It supports Ethernet/IP, Modbus TCP, RS-232, and PROFINET communication protocols. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. It is designed for C-mount mounting and has a net height of 79 mm, width of 81 mm, and depth of 52 mm. The ambient air temperature for operation ranges from 0 to +45°C. It offers a degree of protection of IP67 and includes 1 x digital output (PNP/NPN transistor). The lens type is 12mm, and it operates with a refresh rate of 60 frames per second.

IVU2PTGI12 Related Documents

178442.pdf

This item can ship within 0 day!

Manufacturer warranty

IVU2PTGI12 Banner

$2,082.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$2,082.00

$2,082.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
