IVU2PTGI08 Banner Barcode Readers

IVU2PTGI08 on Powermatic Associates
Banner

Part#:IVU2PTGI08

Manufacturer:Banner

Alt. Part#:90759

Product Lifecycle:Active

Get a quick Quote!

iVu PLUS TG Gen2 Sensor with Ethernet; IR Ring Light and 8 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PTGI08 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    625.95696 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PTGI08 Description

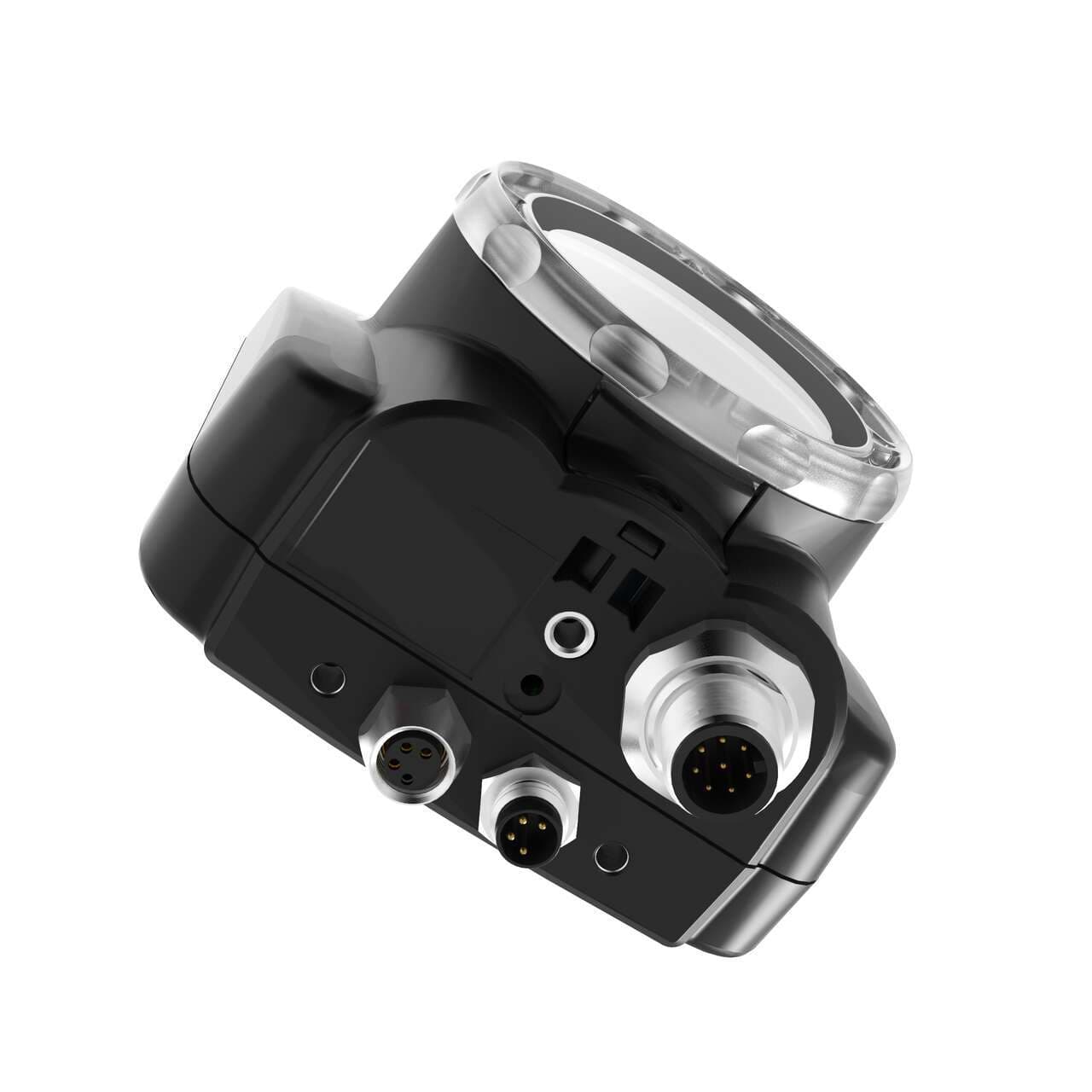

Banner Engineering IVU2PTGI08 is a grayscale image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a built-in touchscreen and an 8mm optical lens. This sensor is equipped with an infrared (IR) LED ring light for illumination and has the capacity to store up to 30 inspections. The housing is black, made from thermoplastic with an acrylic window. For connectivity, it comes pre-equipped with a 12-pin Euro-style M12 male connector for power supply, and two 4-pin M8 connectors (one female and one male) for USB and Ethernet connections. It supports Ethernet/IP, Modbus TCP, RS-232, and PROFINET communication protocols. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. It is designed for C-mount mounting and has a net height of 79 mm, width of 81 mm, and depth of 52 mm. The ambient air temperature for operation ranges from 0 to +45°C. It offers a degree of protection of IP67 and includes 1 x digital output (PNP/NPN transistor). The lens type is 8mm, and it operates at a refresh rate of 60fps.

Related documents IVU2PTGI08 Specs

IVU2PTGI08 178442.pdf
