IVU2PTGB16 Banner Barcode Readers

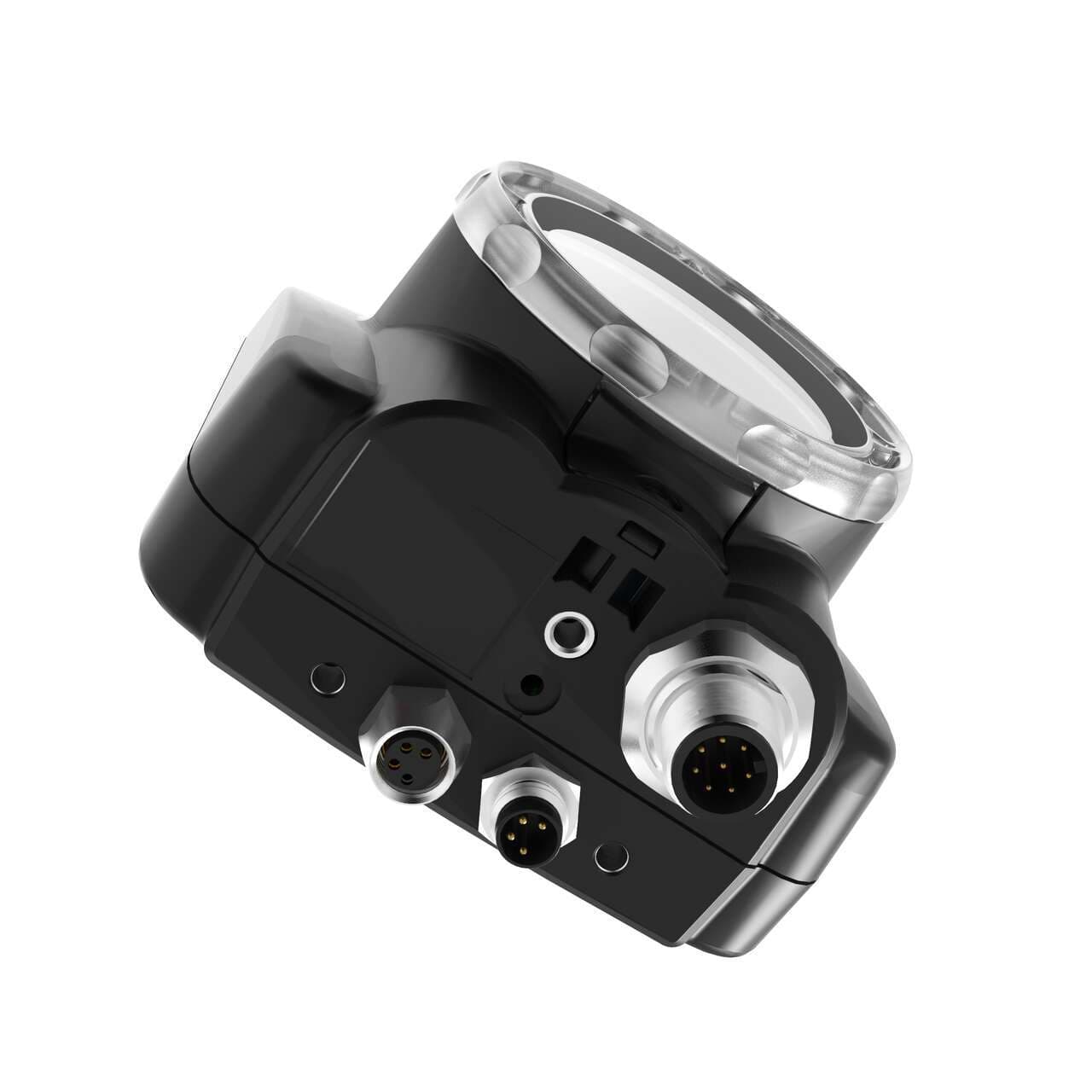

Banner IVU2PTGB16 iVu PLUS TG Gen2 Sensor with Ethernet; Blue Ring Light and 16 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional
Banner

Part#:IVU2PTGB16

Manufacturer:Banner

Alt. Part#:90749

Product Lifecycle:Active

Get a quick Quote!

iVu PLUS TG Gen2 Sensor with Ethernet; Blue Ring Light and 16 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PTGB16 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    625.95696 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PTGB16 Description

Banner Engineering IVU2PTGB16 is a grayscale image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a built-in touchscreen and a 16mm optical lens, complemented by a blue LED ring light for illumination. This sensor can store up to 30 inspections and supports PCCC. The housing is black, made from thermoplastic with an acrylic window. For connectivity, it comes pre-equipped with a 12-pin Euro-style M12 male connector for power supply, alongside 2 x 4-pin M8 connectors for USB and Ethernet. It supports multiple communication protocols, including Ethernet/IP, Modbus TCP, RS-232, and PROFINET. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It is designed for C-mount installation, has a net height of 79 mm, a width of 81 mm, and a depth of 52 mm. The ambient air temperature for operation ranges from 0 to +45°C. It offers a degree of protection rated at IP67 and includes 1 x digital output (PNP/NPN transistor). The lens type is 16mm, and it operates at a refresh rate of 60fps.

Related documents IVU2PTGB16 Specs

IVU2PTGB16 178442.pdf
