IVU2PTG608 Banner Barcode Readers

Name: IVU2PTG608
Brand: Banner
Price: 3087 USD
Availability: BackOrder

Part#:IVU2PTG608

Alt. Part#:90778

Manufacturer:Banner

Category:Barcode Readers

Product Lifecycle:Active

Product description

iVu PLUS TG Gen2 Sensor with Ethernet; UV 365 Ring Light and 8 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Product Details

Weight
625.95696 g
Country Of Origin
CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PTG608 on Powermatic Associates is $3,087.00. Order now.

About the product

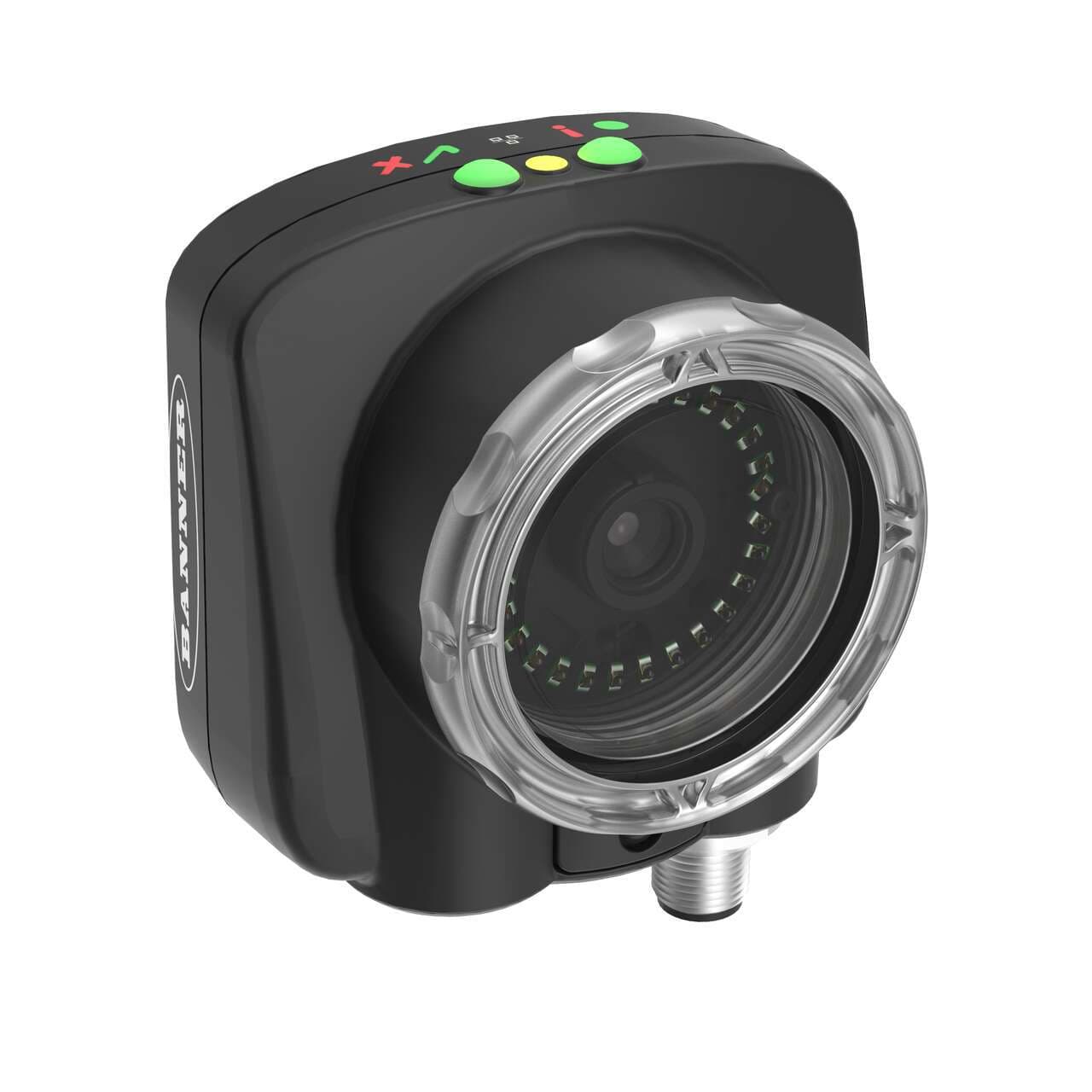

Banner Engineering IVU2PTG608 is a grayscale image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a built-in touchscreen and an 8mm optical lens. This sensor is equipped with an ultraviolet (UV 365nm) LED ring light illumination, capable of storing up to 30 inspections. The housing is black, made from thermoplastic with an acrylic window. For connectivity, it comes pre-equipped with a 12-pin Euro-style M12 male connector for power supply, alongside 2 x 4-pin M8 connectors for USB and Ethernet connections. It supports Ethernet/IP, Modbus TCP, RS-232, and PROFINET communication protocols. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It is designed for C-mount mounting and has dimensions of 79 mm in height, 81 mm in width, and 52 mm in depth. The operating ambient air temperature range is from 0 to +45 °C. It offers a degree of protection rated at IP67 and includes 1 x digital output (PNP/NPN transistor). The lens type is 8mm, and it operates with a refresh rate of 60 frames per second (fps) at a wavelength of 365 nm.

IVU2PTG608 Related Documents

178442.pdf

This item can ship within 0 day!

Manufacturer warranty

IVU2PTG608 Banner

$3,087.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$3,087.00

$3,087.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
