IVU2PTCX06 Banner Barcode Readers

Name: IVU2PTCX06
Brand: Banner
Price: 2021 USD
Availability: BackOrder

Part#:IVU2PTCX06

Alt. Part#:804372

Manufacturer:Banner

Category:Barcode Readers

Product Lifecycle:Active

Product description

iVu Color Vision Sensor with Integrated Screen; No Light and 6 mm Lens; Requires Power Cordset and Bracket; Ethernet and USB Cordset Optional

Product Details

Weight
566.99 g
Country Of Origin
CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PTCX06 on Powermatic Associates is $2,021.00. Order now.

About the product

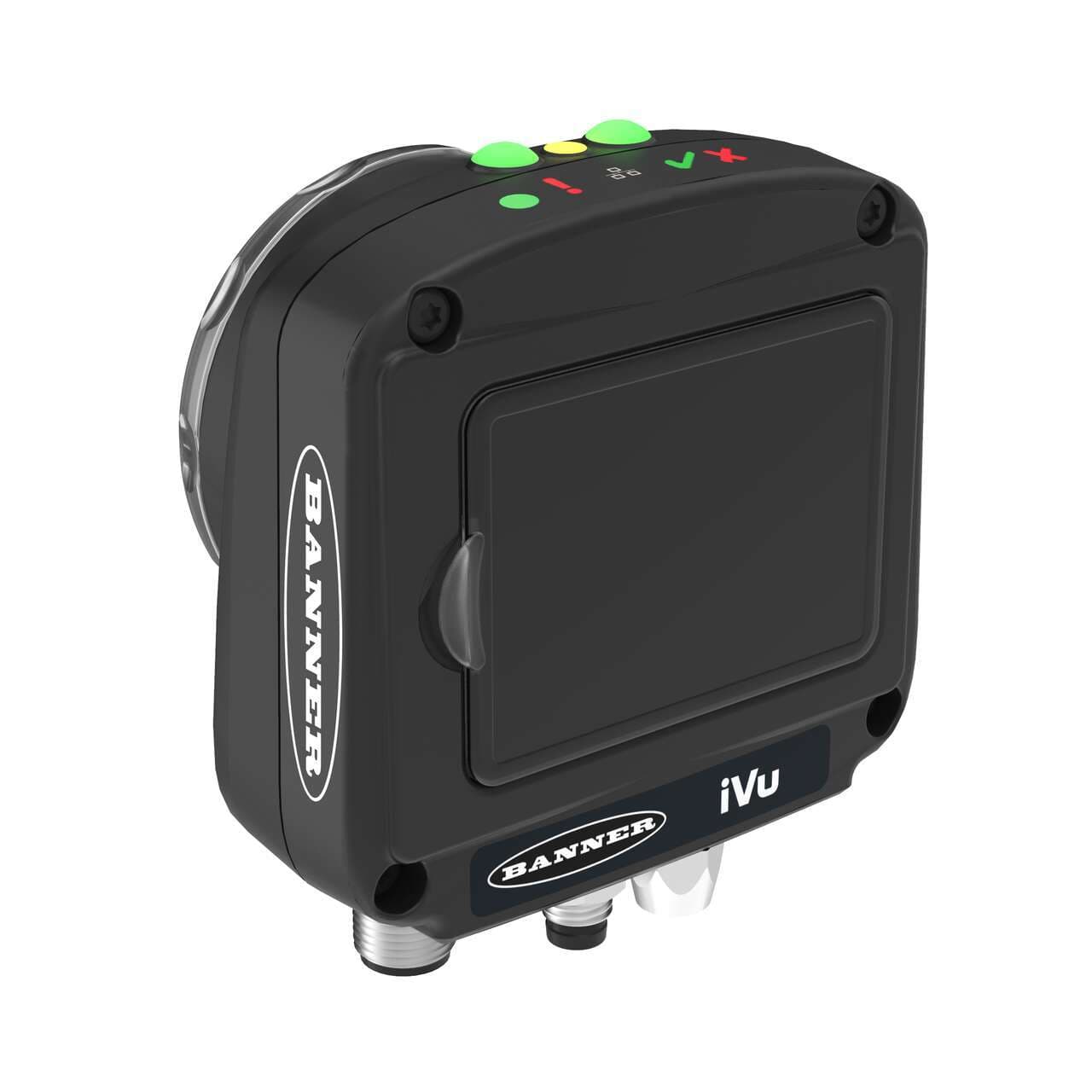

Banner Engineering IVU2PTCX06 is a color image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a built-in touchscreen and a 6mm optical lens. This sensor can store up to 30 inspections and supports PCCC. The housing is black, made from thermoplastic, and the window is acrylic. It comes pre-equipped with a 12-pin Euro-style M12 male connector for power supply, a 4-pin M8 female connector for USB, and a 4-pin M8 male connector for Ethernet. The IVU2PTCX06 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, RS-232, and PROFINET. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. The sensor is mounted using a C-mount and has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates in ambient air temperatures ranging from 0 to +45°C and offers a degree of protection of IP67. The sensor features 1 x digital output (PNP/NPN transistor) and has a refresh rate of 60fps.

IVU2PTCX06 Related Documents

178442.pdf

This item can ship within 0 day!

Manufacturer warranty

IVU2PTCX06 Banner

$2,021.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$2,021.00

$2,021.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
