IVU2PTBX12

Banner

Product Lifecycle: Active

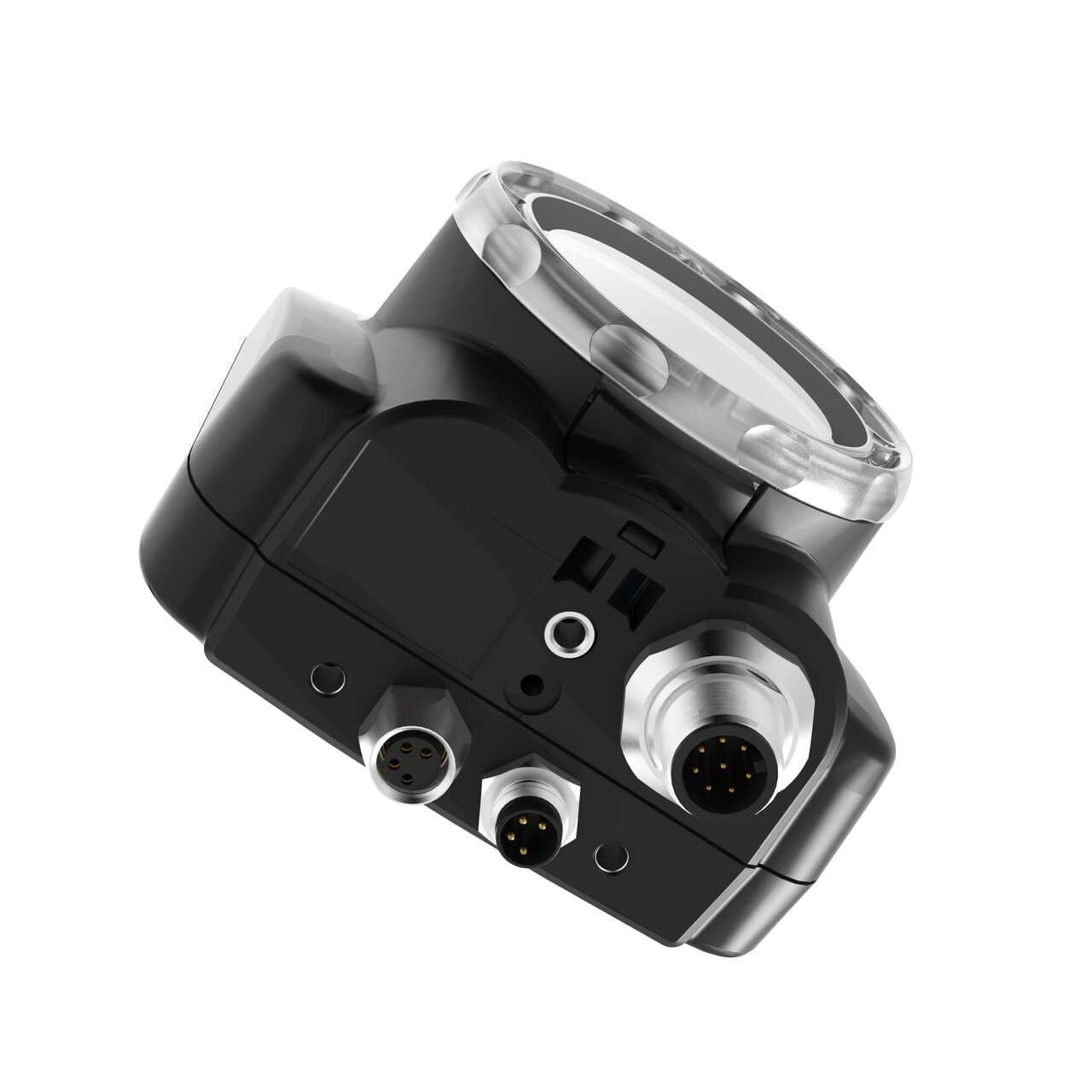

Banner Engineering IVU2PTBX12 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a built-in touchscreen and a 12mm optical lens, capable of storing up to 30 inspections. The device is housed in black thermoplastic with an acrylic window for durability. It offers a variety of connection options, including a pre-equipped 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for remote display purposes. The IVU2PTBX12 supports multiple communication protocols such as Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Designed for C-mount installation, this barcode reader has dimensions of 79 mm in height, 81 mm in width, and 52 mm in depth. It operates within an ambient air temperature range of 0 to +45°C and offers a degree of protection rated at IP67. The device also features 1 x digital output (PNP/NPN transistor) and operates at a refresh rate of 60fps.

IVU2PTBX12

Banner Engineering IVU2PTBX12 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a built-in touchscreen and a 12mm optical lens, capable of storing up to 30 inspections. The device is housed in black thermoplastic with an acrylic window for durability. It offers a variety of connection options, including a pre-equipped 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for remote display purposes. The IVU2PTBX12 supports multiple communication protocols such as Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Designed for C-mount installation, this barcode reader has dimensions of 79 mm in height, 81 mm in width, and 52 mm in depth. It operates within an ambient air temperature range of 0 to +45°C and offers a degree of protection rated at IP67. The device also features 1 x digital output (PNP/NPN transistor) and operates at a refresh rate of 60fps.

Product details

  • FTPNo
  • RS-422No
  • RS-232Yes
  • PROFINETYes
  • PCCCYes
  • Modbus/TCPYes
  • Feature: Washdown RatedYes
  • Feature: Touchscreen InterfaceYes
  • Touchscreen DisplayIntegrated
  • Feature: PC InterfaceYes
  • Common Ethernet ProtocolNo
  • EtherNet/IPYes
  • Imager TypeGrayscale
  • Device TypeImager BCR
  • IP RatingIP67
  • Camera Housing Size (HxWxL mm)79 x 81 x 52
  • USBNo
  • Code Type1D, 2D
  • Lens (mm)12
  • Light ColorNo Light
  • Image Resolution752 x 480 pixels
  • Primary Housing MaterialThermoplastic
