IVU2PTBX08 Banner Barcode Readers
Part#:IVU2PTBX08
Alt. Part#:90881
Manufacturer:Banner
Category:Barcode Readers
Product Lifecycle:Active
Product description

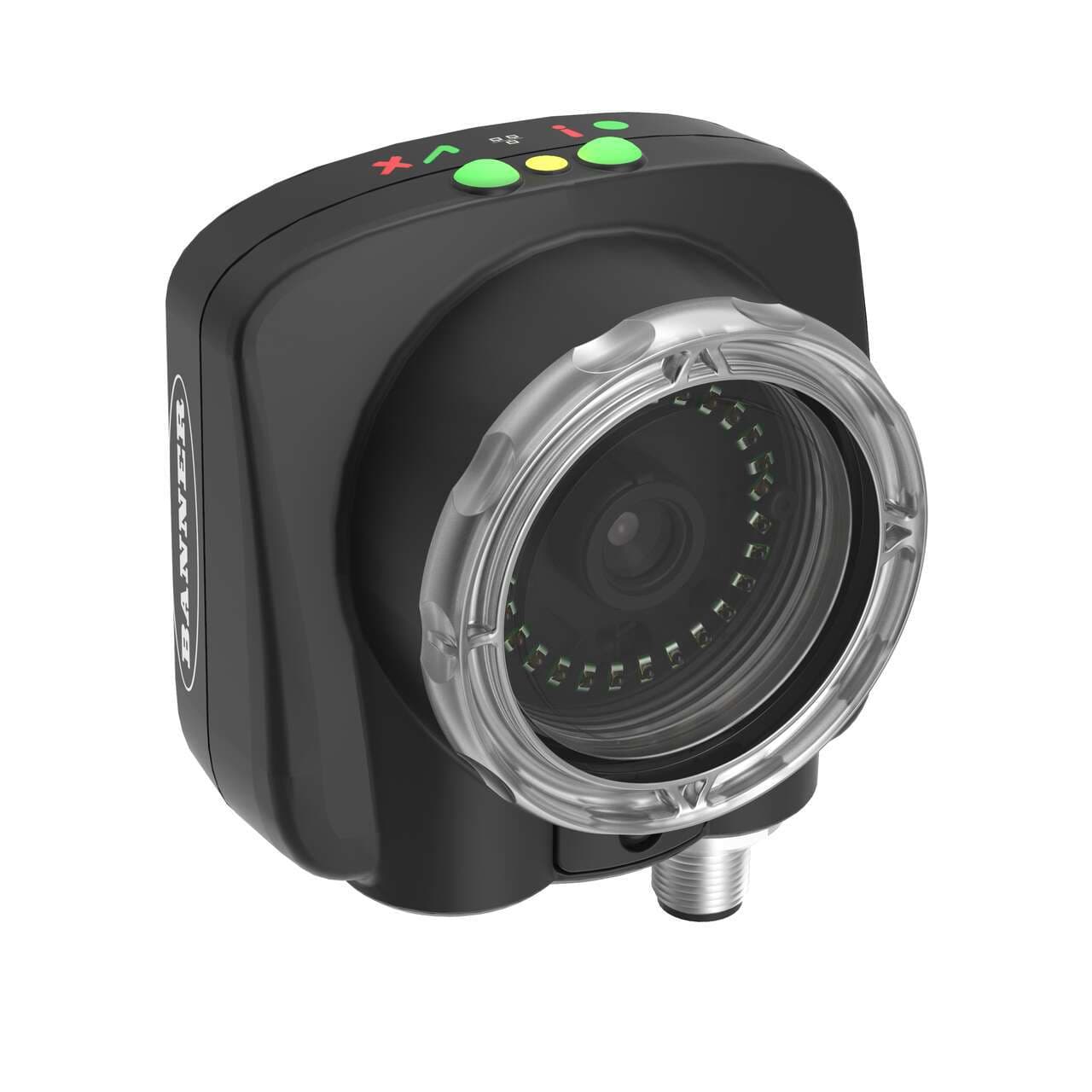

iVu PLUS BCR Gen2 Sensor with Ethernet; No Light and 8 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional
Product Details
- Weight 625.95696 g
- Country Of Origin CN
- RS-232 Yes
- FTP No
- PROFINET Yes
- RS-422 No
- Modbus/TCP Yes
- PCCC Yes
- Feature: Touchscreen Interface Yes
- Common Ethernet Protocol No
- Feature: PC Interface Yes
- EtherNet/IP Yes
- Touchscreen Display Integrated
- Imager Type Grayscale
- Image Resolution 752 x 480 pixels
- Feature: Washdown Rated Yes
- USB No
- Lens (mm) 8
- Primary Housing Material Thermoplastic
- Light Color No Light
- Code Type 1D, 2D
- Camera Housing Size (HxWxL mm) 79 x 81 x 52
- Device Type Imager BCR
- IP Rating IP67
- Functions 1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC
- Primary brand Banner Engineering
- Design built-in touchscreen 8mm optical lns. grayscale sensor
- Main function Sensor (Vision)
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Material thermoplastic housing Acrylic window
- Net Width (mm) 81 mm
- Ambient air temperature for operation 0...+45 °C
- Net Depth (mm) 52 mm
- Mounting mode C-mount
- Refresh rate (fps) 60fps
- Order code / Manufacturer SKU 90881
- Type of lens 8mm
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)
- Net Height (mm) 79 mm
- Display Touchscreen display
- Color Black housing
- Sub-range name iVu Plus TG and Color Gen2 Image Sensors
- Image sensor characteristics 752x480pixels 1/3" CMOS sensing; Monochrome
- Degree of protection IP67
- Communication protocol Ethernet/IP Modbus TCP PROFINET RS-232
- Compliant with standard(s) cULus CE
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PTBX08 on Powermatic Associates is $2,082.00. Order now.
About the product
Banner Engineering IVU2PTBX08 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a built-in touchscreen and an 8mm optical lens, capable of storing up to 30 inspections. The device is housed in black thermoplastic with an acrylic window for durability. It offers versatile connectivity options, including a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for remote display purposes. The IVU2PTBX08 supports multiple communication protocols such as Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Designed for C-mount installation, this barcode reader measures 79 mm in height, 81 mm in width, and 52 mm in depth. It operates efficiently within an ambient air temperature range of 0 to +45°C and offers a degree of protection rated at IP67. Additionally, it features 1 x digital output (PNP/NPN transistor) and delivers a refresh rate of 60fps.
