IVU2PTBR12 Banner Barcode Readers

Name: IVU2PTBR12
Brand: Banner

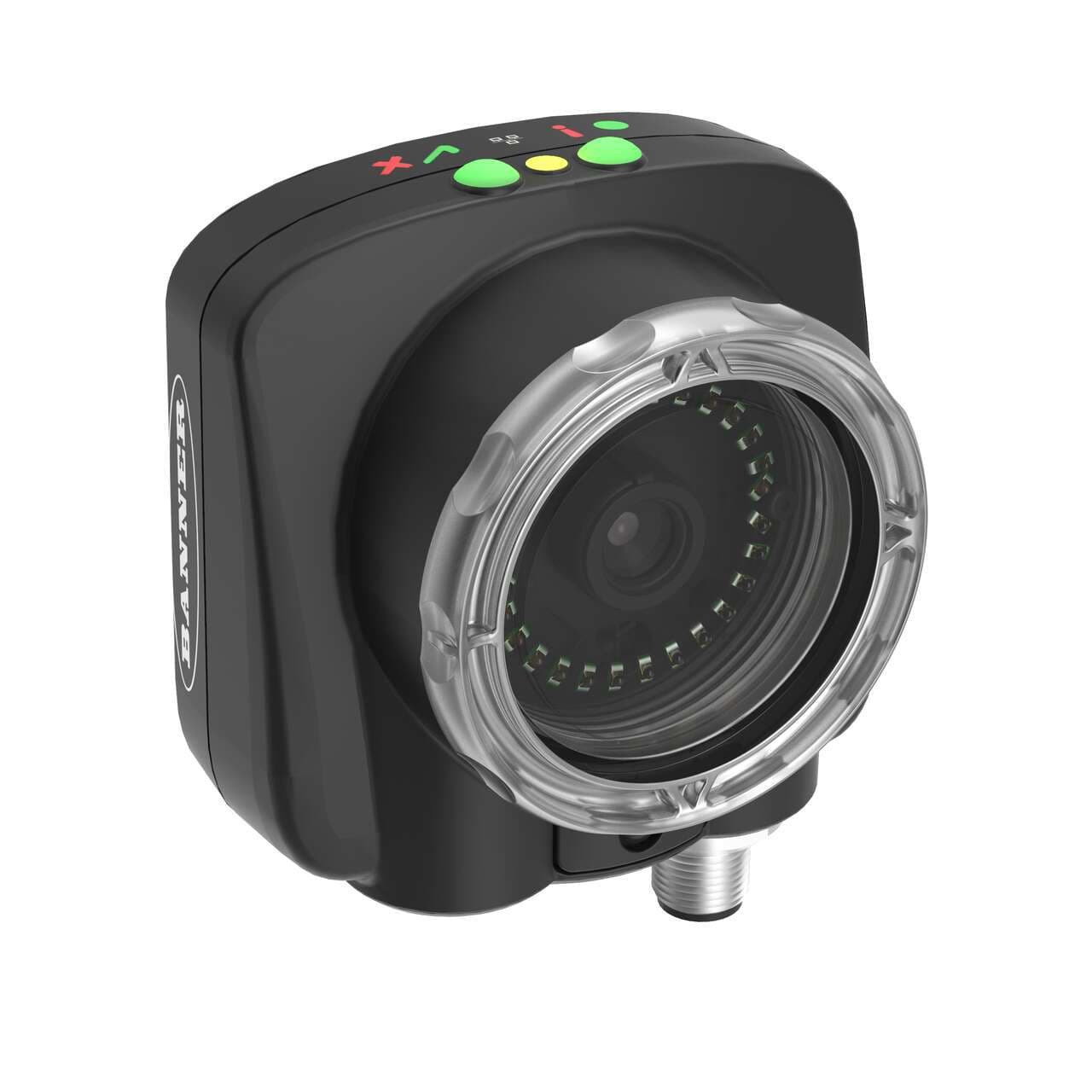

Banner IVU2PTBR12 iVu PLUS BCR Gen2 Sensor with Ethernet; Red Ring Light and 12 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Part#:IVU2PTBR12

Manufacturer:Banner

Alt. Part#:90742

Product Lifecycle:Active

Get a quick Quote!

iVu PLUS BCR Gen2 Sensor with Ethernet; Red Ring Light and 12 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PTBR12 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
625.95696 g
Country Of Origin
CN
Light Color
Red
PROFINET
Yes
FTP
No
RS-422
No
RS-232
Yes
PCCC
Yes
Modbus/TCP
Yes
Feature: PC Interface
Yes
EtherNet/IP
Yes
Common Ethernet Protocol
No
Imager Type
Grayscale
Feature: Touchscreen Interface
Yes
Touchscreen Display
Integrated
Feature: Washdown Rated
Yes
Device Type
Imager BCR
USB
No
Image Resolution
752 x 480 pixels
Code Type
1D, 2D

Lens (mm)

Primary Housing Material

Thermoplastic

Camera Housing Size (HxWxL mm)

79 x 81 x 52

IP Rating

IP67

Main function

Sensor (Vision)

Connection type

Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Ambient air temperature for operation

0...+45 °C

Net Depth (mm)

52 mm

Display

Touchscreen display

Image sensor characteristics

752x480pixels 1/3" CMOS sensing; Monochrome

Communication protocol

Ethernet/IP Modbus TCP PROFINET RS-232

Degree of protection

IP67

Order code / Manufacturer SKU

90742

Primary brand

Banner Engineering

Color

Black housing

Mounting mode

C-mount

Compliant with standard(s)

cULus CE

Type of lens

12mm

Sub-range name

iVu Plus TG and Color Gen2 Image Sensors

Functions

1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC

Design

built-in touchscreen 12mm optical lns. red LED ring light illumination grayscale sensor

Material

thermoplastic housing Acrylic window

Digital outputs

1 x digital output (PNP/NPN transistor)

Net Width (mm)

81 mm

Net Height (mm)

79 mm

Refresh rate (fps)

60fps

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PTBR12 Description

Banner Engineering IVU2PTBR12 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a built-in touchscreen and a 12mm optical lens, complemented by a red LED ring light for illumination. This model is capable of storing up to 30 inspections and supports PCCC. The housing is made of black thermoplastic with an acrylic window. For connectivity, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for remote display purposes. It supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. The device operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. It is designed for C-mount mounting and has dimensions of 79 mm in height, 81 mm in width, and 52 mm in depth. The ambient air temperature for operation ranges from 0 to +45°C. It offers a degree of protection of IP67 and includes 1 x digital output (PNP/NPN transistor). The lens type is 12mm, and it operates at a refresh rate of 60fps.
