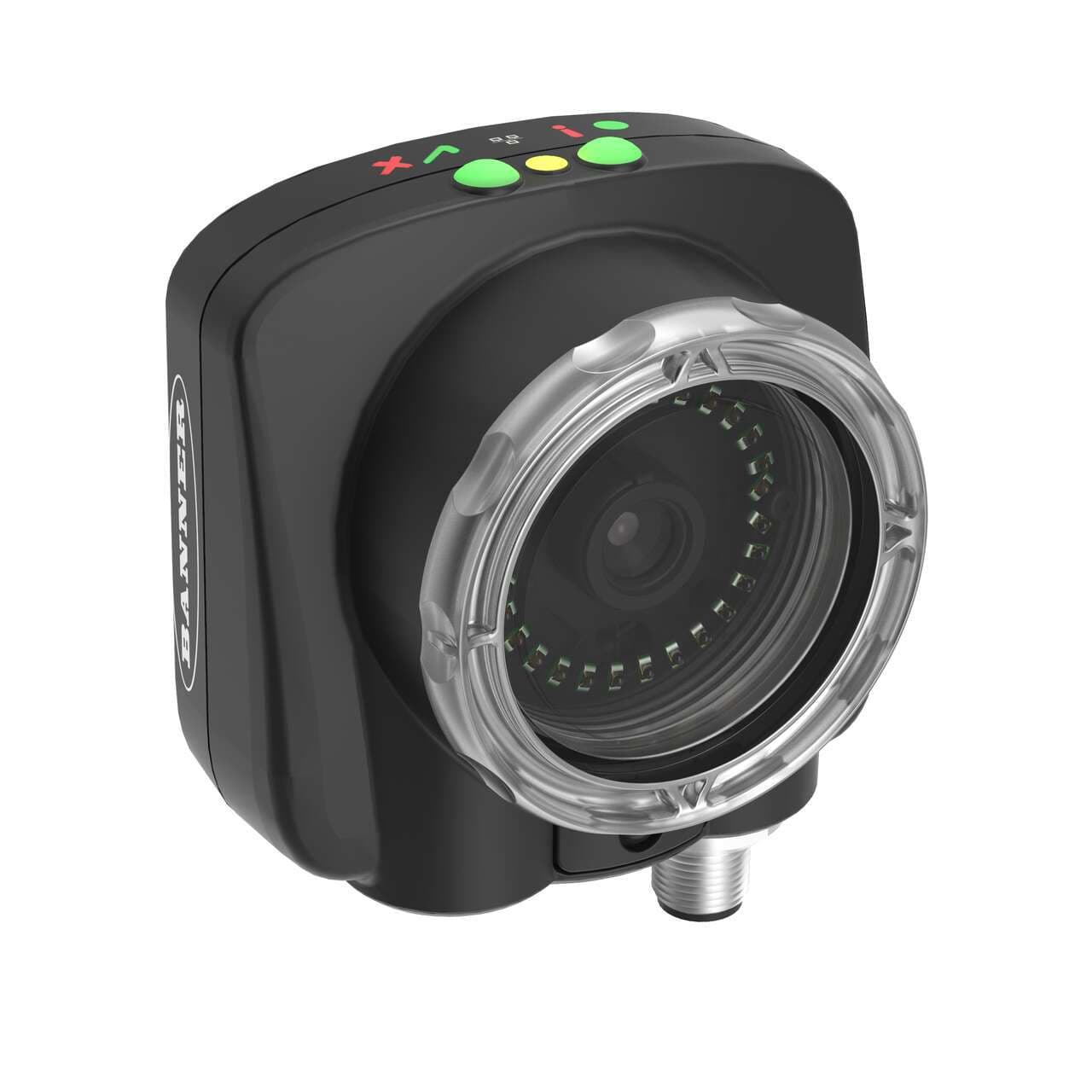

IVU2PTBR04 Banner Barcode Readers
Part#:IVU2PTBR04
Alt. Part#:90739
Manufacturer:Banner
Category:Barcode Readers
Product Lifecycle:Active
Product description
iVu PLUS BCR Gen2 Sensor with Ethernet; Red Ring Light and 4.3 mm Lens; Requires Power Cordset and Bracket; Ethernet and USB Cordset Optional
Product Details
- Weight 625.95696 g
- Country Of Origin CN
- PROFINET Yes
- Modbus/TCP Yes
- Feature: PC Interface Yes
- Light Color Red
- Camera Housing Size (HxWxL mm) 79 x 81 x 52
- IP Rating IP67
- FTP No
- RS-422 No
- RS-232 Yes
- Common Ethernet Protocol No
- PCCC Yes
- EtherNet/IP Yes
- Imager Type Grayscale
- Feature: Touchscreen Interface Yes
- Touchscreen Display Integrated
- Feature: Washdown Rated Yes
- Device Type Imager BCR
- Lens (mm) 4
- USB No
- Image Resolution 752 x 480 pixels
- Code Type 1D, 2D
- Primary Housing Material Thermoplastic
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Image sensor characteristics 752x480pixels 1/3" CMOS sensing; Monochrome
- Sub-range name iVu Plus TG and Color Gen2 Image Sensors
- Mounting mode C-mount
- Degree of protection IP67
- Net Depth (mm) 52 mm
- Functions 1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC
- Communication protocol Ethernet/IP Modbus TCP PROFINET RS-232
- Net Height (mm) 79 mm
- Main function Sensor (Vision)
- Design built-in touchscreen 4.3mm optical lns. red LED ring light illumination grayscale sensor
- Connection type Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)
- Material thermoplastic housing Acrylic window
- Net Width (mm) 81 mm
- Primary brand Banner Engineering
- Display Touchscreen display
- Color Black housing
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Order code / Manufacturer SKU 90739
- Refresh rate (fps) 60fps
- Compliant with standard(s) cULus CE
- Ambient air temperature for operation 0...+45 °C
- Type of lens 4.3mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PTBR04 on Powermatic Associates is $2,221.00. Order now.
About the product
Banner Engineering IVU2PTBR04 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a built-in touchscreen and a 4.3mm optical lens, complemented by a red LED ring light for illumination. This device is capable of storing up to 30 inspections and supports PCCC. The housing is black, made from thermoplastic with an acrylic window. For connectivity, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (one female and one male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for remote display purposes. It supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. The supply voltage ranges from 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. It is designed for C-mount mounting and has dimensions of 79 mm in height, 81 mm in width, and 52 mm in depth. The device operates within an ambient air temperature range of 0 to +45 °C and offers a degree of protection of IP67. It features one digital output (PNP/NPN transistor) and has a refresh rate of 60fps.
