IVU2PTBI06 Banner Barcode Readers

Name: IVU2PTBI06
Brand: Banner
Price: 2468 USD
Availability: BackOrder

Part#:IVU2PTBI06

Manufacturer:Banner

Alt. Part#:90868

Product Lifecycle:Active

Get a quick Quote!

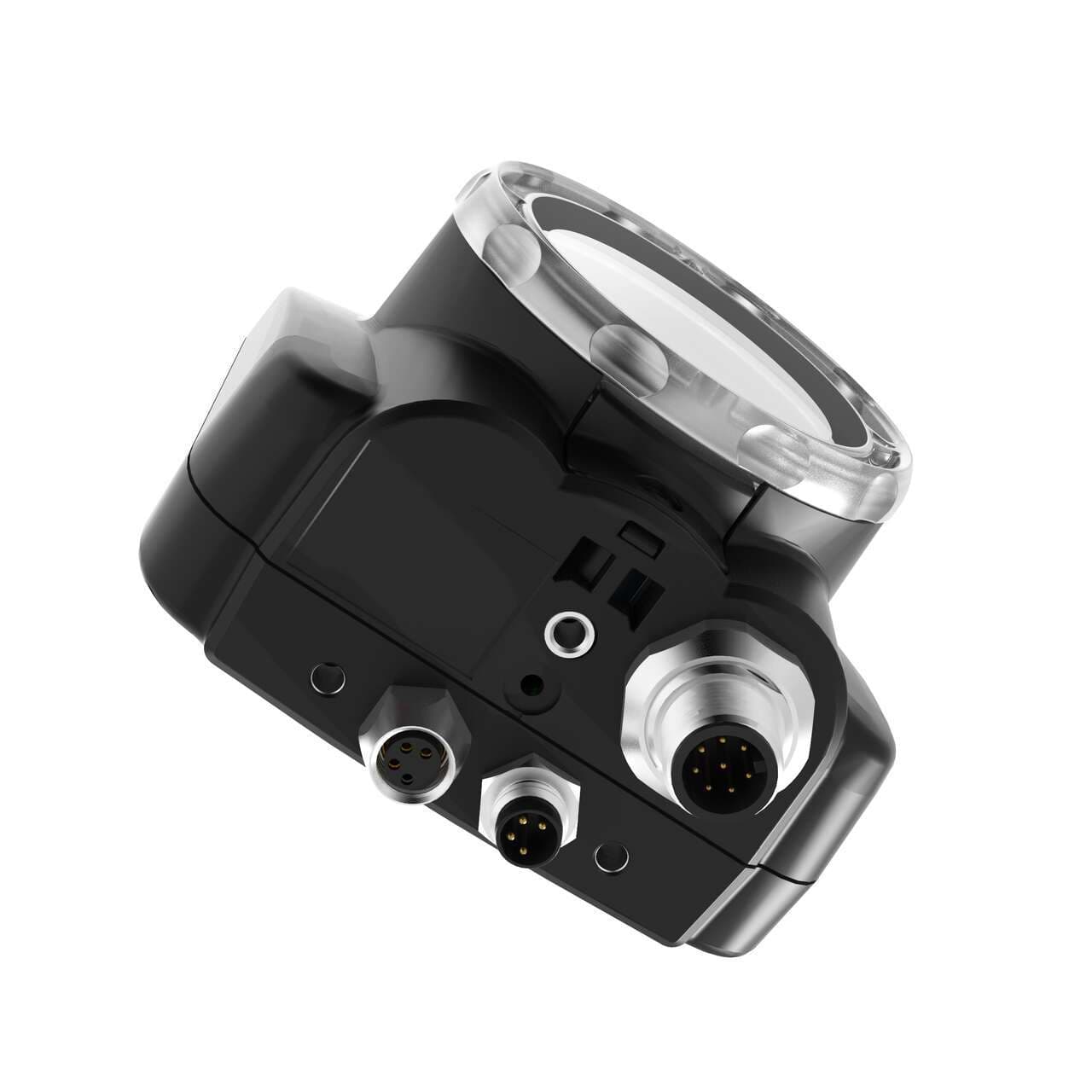

iVu PLUS BCR Gen2 Sensor with Ethernet; IR Ring Light and 6 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PTBI06 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
625.95696 g
Country Of Origin
CN
Light Color
Infrared
RS-422
No
FTP
No
RS-232
Yes
PROFINET
Yes
PCCC
Yes
Feature: Touchscreen Interface
Yes
Modbus/TCP
Yes
Common Ethernet Protocol
No
Touchscreen Display
Integrated
EtherNet/IP
Yes
Feature: Washdown Rated
Yes
Feature: PC Interface
Yes
Imager Type
Grayscale
Image Resolution
752 x 480 pixels
Device Type
Imager BCR
Lens (mm)
6
Code Type
1D, 2D

USB

Camera Housing Size (HxWxL mm)

79 x 81 x 52

Primary Housing Material

Thermoplastic

IP Rating

IP67

Primary brand

Banner Engineering

Functions

1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC

Communication protocol

Ethernet/IP Modbus TCP PROFINET RS-232

Material

thermoplastic housing Acrylic window

Type of lens

6mm

Order code / Manufacturer SKU

90868

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Compliant with standard(s)

cULus CE

Image sensor characteristics

752x480pixels 1/3" CMOS sensing; Monochrome

Ambient air temperature for operation

0...+45 °C

Net Height (mm)

79 mm

Net Width (mm)

81 mm

Degree of protection

IP67

Sub-range name

iVu Plus TG and Color Gen2 Image Sensors

Design

built-in touchscreen 6mm optical lns. infrared (IR) LED ring light illumination grayscale sensor

Connection type

Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)

Digital outputs

1 x digital output (PNP/NPN transistor)

Display

Touchscreen display

Color

Black housing

Mounting mode

C-mount

Net Depth (mm)

52 mm

Main function

Sensor (Vision)

Refresh rate (fps)

60fps

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PTBI06 Description

Banner Engineering IVU2PTBI06 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a built-in touchscreen and a 6mm optical lens. This model is equipped with an infrared (IR) LED ring light for illumination and can store up to 30 inspections. The housing is black, made of thermoplastic with an acrylic window. It offers a variety of connection options, including a pre-equipped 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (one female and one male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for remote display purposes. The IVU2PTBI06 supports multiple communication protocols such as Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Designed for C-mount installation, it has dimensions of 79 mm in height, 81 mm in width, and 52 mm in depth. The operating ambient air temperature range is from 0 to +45°C. This barcode reader is IP67 rated for protection and includes 1 x digital output (PNP/NPN transistor). The lens type is 6mm, and it has a refresh rate of 60fps.
