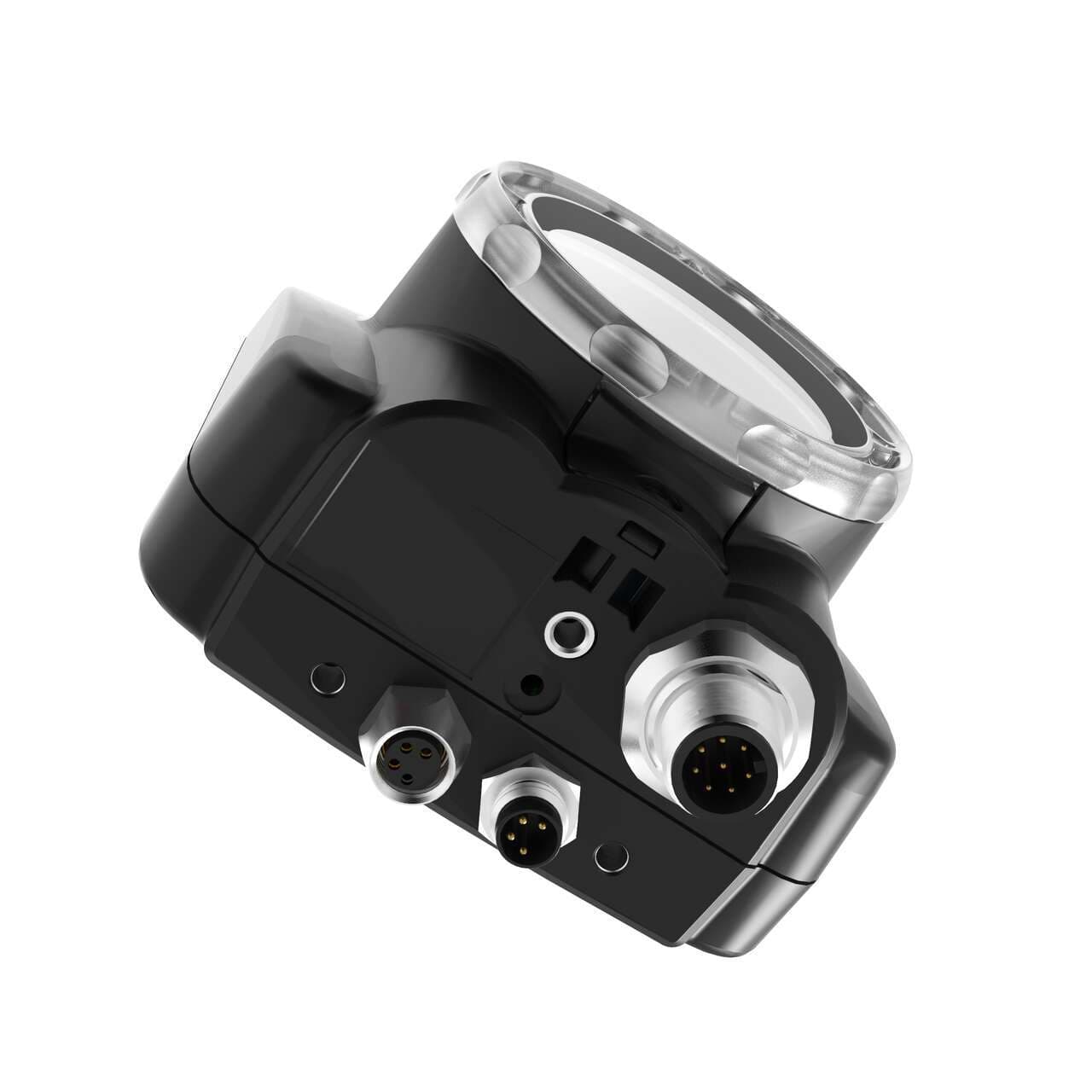

IVU2PTBG12 Banner Barcode Readers
Part#:IVU2PTBG12
Alt. Part#:90797
Manufacturer:Banner
Category:Barcode Readers
Product Lifecycle:Active
Product description
iVu PLUS BCR Gen2 Sensor with Ethernet; Green Ring Light and 12 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional
Product Details
- Weight 625.95696 g
- Country Of Origin CN
- Light Color Green
- FTP No
- PROFINET Yes
- RS-422 No
- RS-232 Yes
- PCCC Yes
- Feature: PC Interface Yes
- Modbus/TCP Yes
- Common Ethernet Protocol No
- EtherNet/IP Yes
- Touchscreen Display Integrated
- Feature: Touchscreen Interface Yes
- Imager Type Grayscale
- Feature: Washdown Rated Yes
- Image Resolution 752 x 480 pixels
- Lens (mm) 12
- USB No
- Code Type 1D, 2D
- Camera Housing Size (HxWxL mm) 79 x 81 x 52
- Primary Housing Material Thermoplastic
- Device Type Imager BCR
- IP Rating IP67
- Sub-range name iVu Plus TG and Color Gen2 Image Sensors
- Design built-in touchscreen 12mm optical lns. green LED ring light illumination grayscale sensor
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Net Height (mm) 79 mm
- Functions 1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC
- Degree of protection IP67
- Order code / Manufacturer SKU 90797
- Refresh rate (fps) 60fps
- Display Touchscreen display
- Connection type Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)
- Mounting mode C-mount
- Type of lens 12mm
- Main function Sensor (Vision)
- Image sensor characteristics 752x480pixels 1/3" CMOS sensing; Monochrome
- Communication protocol Ethernet/IP Modbus TCP PROFINET RS-232
- Compliant with standard(s) cULus CE
- Net Width (mm) 81 mm
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Color Black housing
- Material thermoplastic housing Acrylic window
- Ambient air temperature for operation 0...+45 °C
- Net Depth (mm) 52 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PTBG12 on Powermatic Associates is $2,468.00. Order now.
About the product
Banner Engineering IVU2PTBG12 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a built-in touchscreen and a 12mm optical lens, complemented by a green LED ring light for illumination. This model has the capacity to store up to 30 inspections and supports PCCC. The housing is black, made from thermoplastic with an acrylic window. For connectivity, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (one female and one male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for remote display purposes. The IVU2PTBG12 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Designed for C-mount installation, it measures 79 mm in height, 81 mm in width, and 52 mm in depth. The device operates effectively in ambient air temperatures ranging from 0 to +45°C and offers a degree of protection rated at IP67. It features a single digital output (PNP/NPN transistor) and operates with a refresh rate of 60 frames per second.
