IVU2PTBB12
Banner
Product Lifecycle: Active

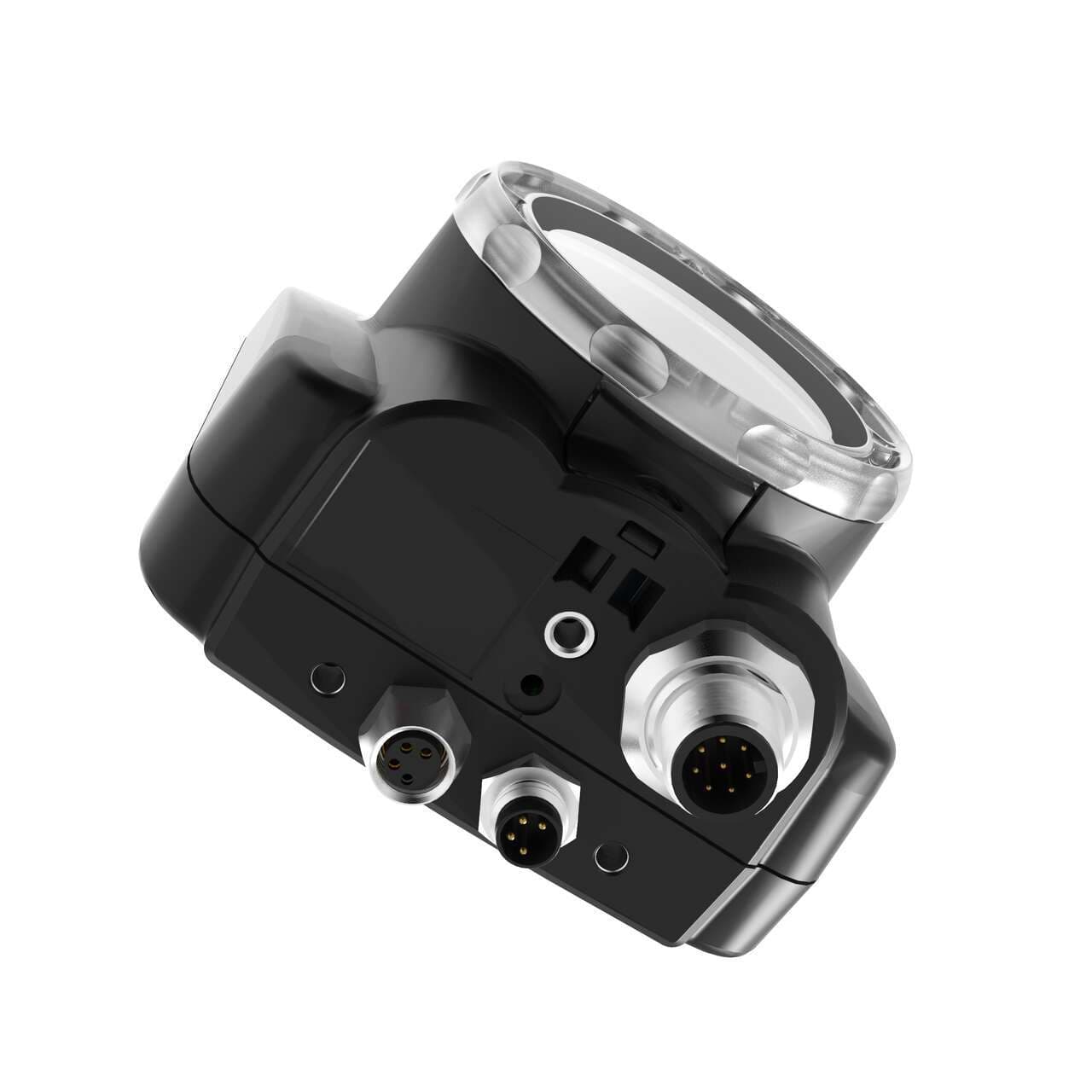

Banner Engineering IVU2PTBB12 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It is designed with a built-in touchscreen, a 12mm optical lens, and a blue LED ring light for illumination. This model can store up to 30 inspections and supports PCCC. The scanner has a visible blue light color and comes in a black housing made of thermoplastic with an acrylic window. It is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (one female and one male) for USB and Ethernet connections, and an 8-pin Euro-style M12 female connector for remote display purposes. The IVU2PTBB12 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The device offers a C-mount mounting mode, has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates within an ambient air temperature range of 0 to +45 °C and has a degree of protection rated at IP67. Additionally, it features 1 x digital output (PNP/NPN transistor) and a refresh rate of 60fps.
![IVU2PTBB12](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fa54a2bdf-7ca6-4a73-99e8-c3aa07c29a46.jpeg&w=3840&q=75)
Banner Engineering IVU2PTBB12 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It is designed with a built-in touchscreen, a 12mm optical lens, and a blue LED ring light for illumination. This model can store up to 30 inspections and supports PCCC. The scanner has a visible blue light color and comes in a black housing made of thermoplastic with an acrylic window. It is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (one female and one male) for USB and Ethernet connections, and an 8-pin Euro-style M12 female connector for remote display purposes. The IVU2PTBB12 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The device offers a C-mount mounting mode, has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates within an ambient air temperature range of 0 to +45 °C and has a degree of protection rated at IP67. Additionally, it features 1 x digital output (PNP/NPN transistor) and a refresh rate of 60fps.
- Light ColorBlue
- FTPNo
- RS-232Yes
- RS-422No
- PROFINETYes
- PCCCYes
- Touchscreen DisplayIntegrated
- Feature: Touchscreen InterfaceYes
- Modbus/TCPYes
- Feature: PC InterfaceYes
- Common Ethernet ProtocolNo
- EtherNet/IPYes
- Imager TypeGrayscale
- Feature: Washdown RatedYes
- Code Type1D, 2D
- Lens (mm)12
- USBNo
- Primary Housing MaterialThermoplastic
- Image Resolution752 x 480 pixels
- Camera Housing Size (HxWxL mm)79 x 81 x 52
- Device TypeImager BCR
- IP RatingIP67
- DisplayTouchscreen display
- Image sensor characteristics752x480pixels 1/3" CMOS sensing; Monochrome
- Materialthermoplastic housing Acrylic window
- Refresh rate (fps)60fps
- Primary brandBanner Engineering
- Mounting modeC-mount
- Degree of protectionIP67
- Sub-range nameiVu Plus TG and Color Gen2 Image Sensors
- Designbuilt-in touchscreen 12mm optical lns. blue LED ring light illumination grayscale sensor
- Main functionSensor (Vision)
- Functions1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC
- Digital outputs1 x digital output (PNP/NPN transistor)
- Net Height (mm)79 mm
- Type of lens12mm
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection typePre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)
- Net Width (mm)81 mm
- Net Depth (mm)52 mm
- ColorBlack housing
- Communication protocolEthernet/IP Modbus TCP PROFINET RS-232
- Ambient air temperature for operation0...+45 °C
- Order code / Manufacturer SKU90791
- Compliant with standard(s)cULus CE
