IVU2PRGW25 Banner Barcode Readers

Name: IVU2PRGW25
Brand: Banner

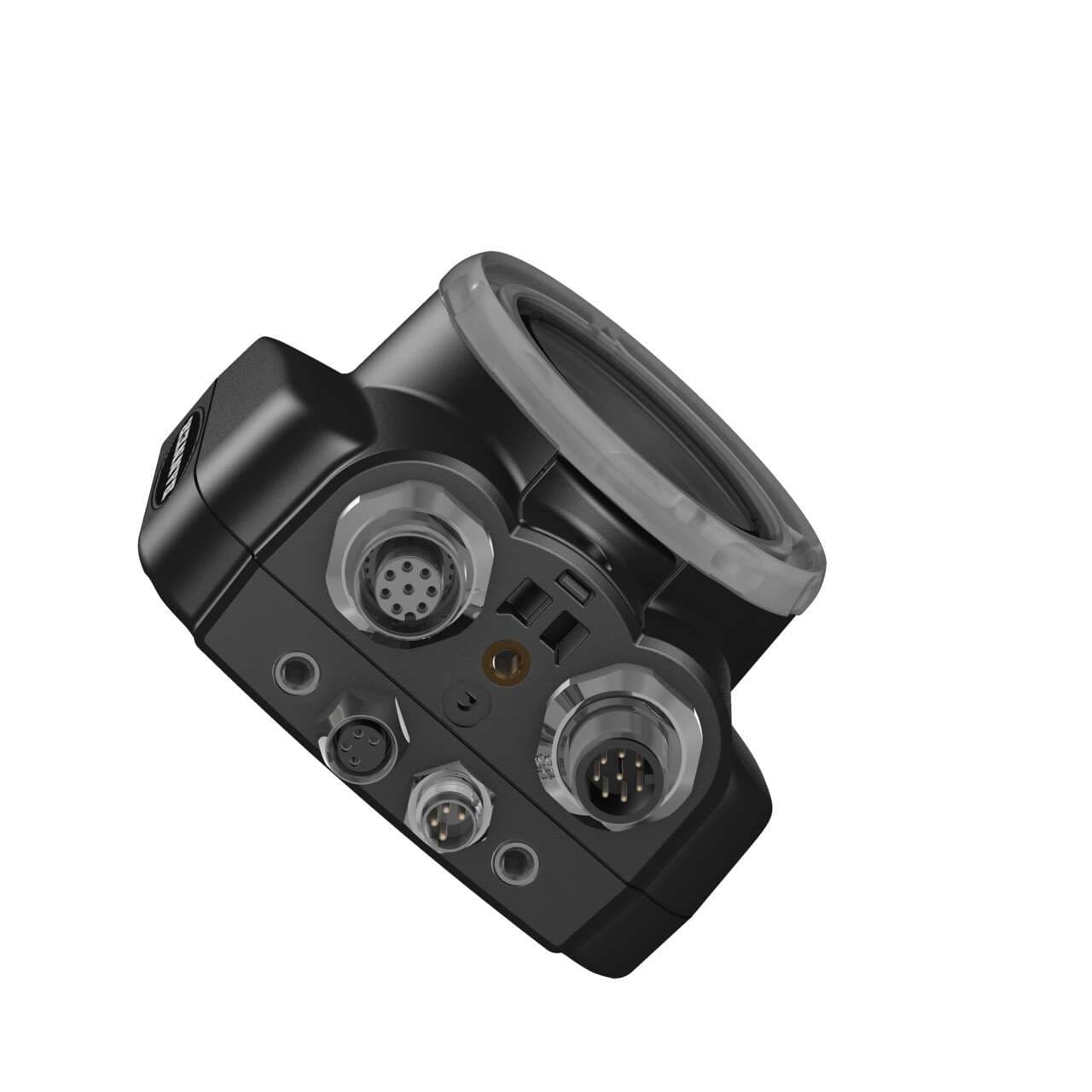

Banner IVU2PRGW25 iVu PLUS TG Gen2 Remote Sensor with Ethernet; White Ring Light and 25 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Part#:IVU2PRGW25

Manufacturer:Banner

Alt. Part#:90921

Product Lifecycle:Active

Get a quick Quote!

iVu PLUS TG Gen2 Remote Sensor with Ethernet; White Ring Light and 25 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PRGW25 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
675.85208 g
Country Of Origin
CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PRGW25 Description

Banner Engineering IVU2PRGW25 is a grayscale image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a remote touchscreen and a 25mm optical lens, complemented by a white LED ring light illumination. This sensor can store up to 30 inspections and supports PCCC. The housing is black, made from thermoplastic with an acrylic window. For connections, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (one female and one male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for the remote display. It supports multiple communication protocols, including Ethernet/IP, Modbus TCP, RS-232, and PROFINET. The supply voltage ranges from 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It mounts via a C-mount and has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. The ambient air temperature for operation is between 0 and +40 degrees Celsius. It offers a degree of protection of IP67 and includes 1 x digital output (PNP/NPN transistor). The lens type is 25mm, and the refresh rate is 60fps.
