IVU2PRGI16 Banner Barcode Readers

IVU2PRGI16 on Powermatic Associates
Banner
  • IVU2PRGI16
  • IVU2PRGI16

Part#:IVU2PRGI16

Alt. Part#:90914

Manufacturer:Banner

Category:Barcode Readers

Product Lifecycle:Active

Product description

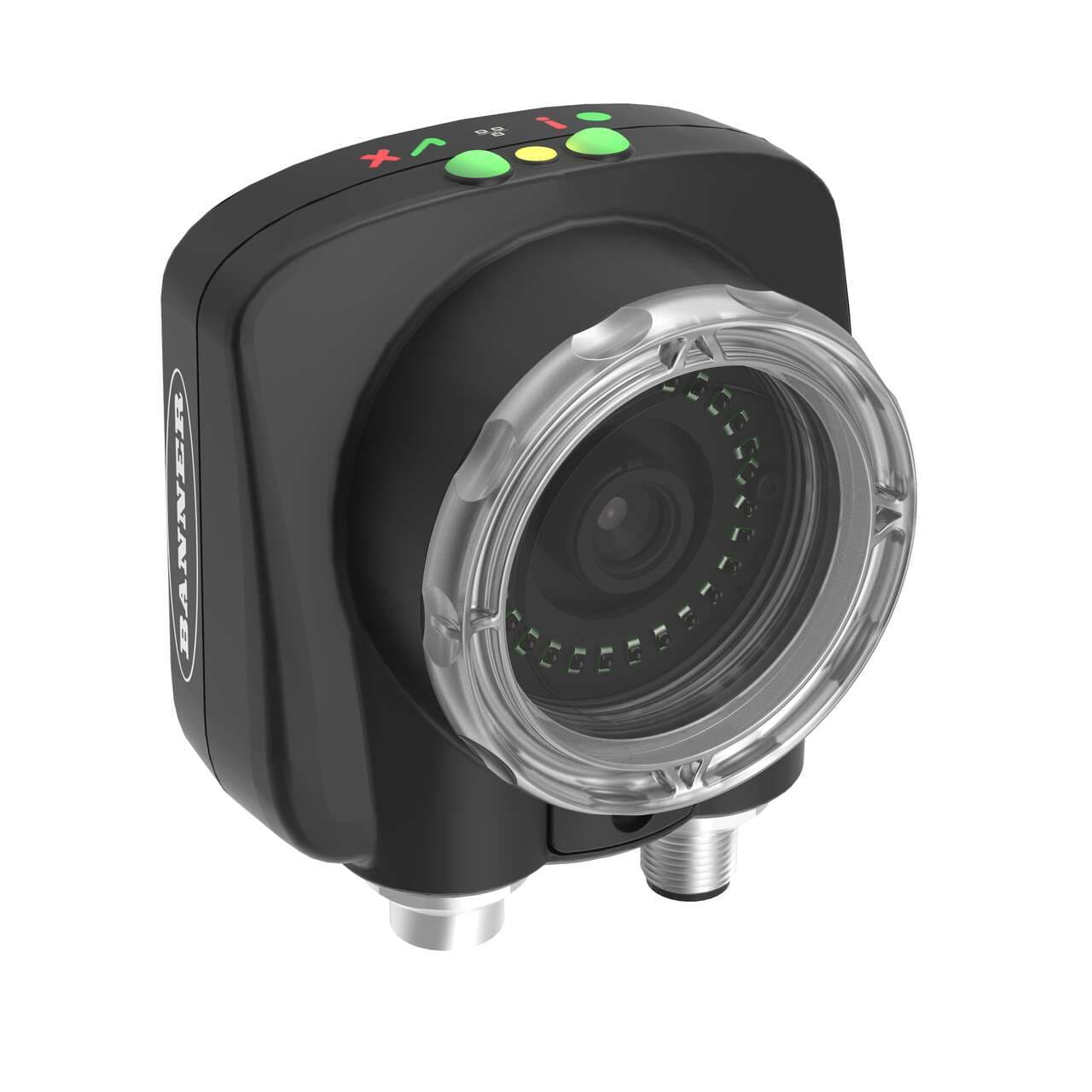

iVu PLUS TG Gen2 Remote Sensor with Ethernet; IR Ring Light and 16 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Product Details

  • Weight
    675.85208 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PRGI16 on Powermatic Associates is $1,804.00. Order now.

About the product

Banner Engineering IVU2PRGI16 is a grayscale image vision sensor kit featuring a 0.36 Megapixel sensor, designed with a remote touchscreen and a 16mm optical lens. It includes an infrared (IR) LED ring light for illumination and is capable of storing up to 30 inspections. The housing is black, made from thermoplastic with an acrylic window. It comes pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (one female and one male) for USB and Ethernet connections, and an 8-pin Euro-style M12 female connector for the remote display. This sensor supports Ethernet/IP, Modbus TCP, RS-232, and PROFINET communication protocols. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The IVU2PRGI16 is designed for C-mount installation, has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates within an ambient air temperature range of 0 to +40°C, offers a degree of protection rated at IP67, and includes one digital output (PNP/NPN transistor). The lens type is 16mm, and it has a refresh rate of 60 frames per second.

IVU2PRGI16 Related Documents

178442.pdf

Manufacturer warranty

IVU2PRGI16 Banner

$1,804.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$1,804.00

$1,804.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
