IVU2PRGB04 Banner Barcode Readers

IVU2PRGB04 on Powermatic Associates
Banner
  • IVU2PRGB04
  • IVU2PRGB04

Part#:IVU2PRGB04

Alt. Part#:90898

Manufacturer:Banner

Category:Barcode Readers

Product Lifecycle:Active

Product description

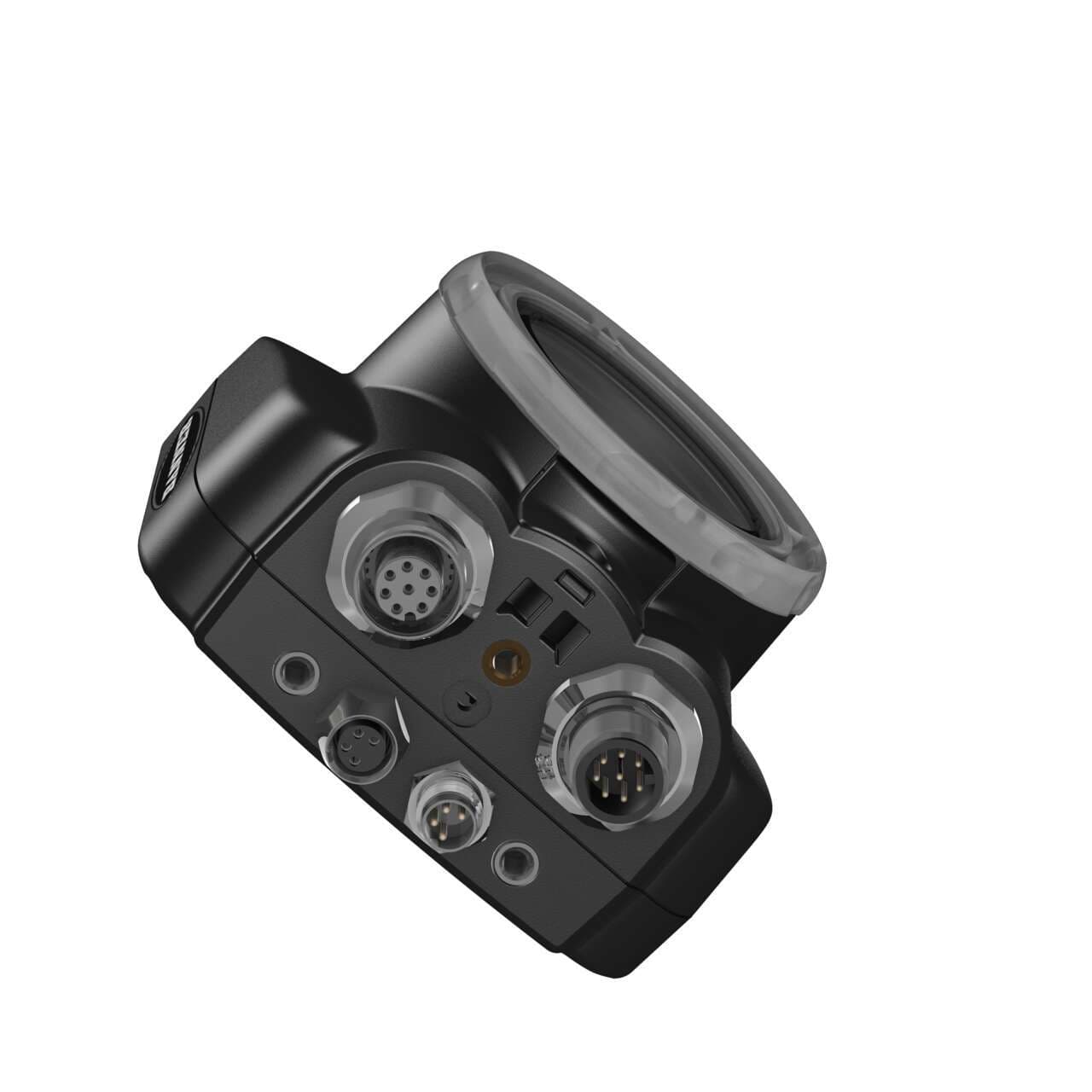

iVu PLUS TG Gen2 Remote Sensor with Ethernet; Blue Ring Light and 4.3 mm Lens; Requires Power Cordset and Bracket; Ethernet and USB Cordset Optional

Product Details

  • Weight
    675.85208 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PRGB04 on Powermatic Associates is $1,804.00. Order now.

About the product

Banner Engineering IVU2PRGB04 is a grayscale image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a remote touchscreen and a 4.3mm optical lens, complemented by a blue LED ring light for illumination. This sensor can store up to 30 inspections and supports PCCC. The housing is black, made from thermoplastic with an acrylic window. It comes pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet connections, and an 8-pin Euro-style M12 female connector for the remote display. The IVU2PRGB04 operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. It supports Ethernet/IP, Modbus TCP, RS-232, and PROFINET communication protocols. Mounting is facilitated via a C-mount. The sensor measures 79 mm in height, 81 mm in width, and 52 mm in depth, operates in ambient air temperatures ranging from 0 to +40°C, and offers a degree of protection of IP67. It features a single digital output (PNP/NPN transistor), operates with a refresh rate of 60fps, and is equipped with a 4.3mm type lens.

IVU2PRGB04 Related Documents

178442.pdf
