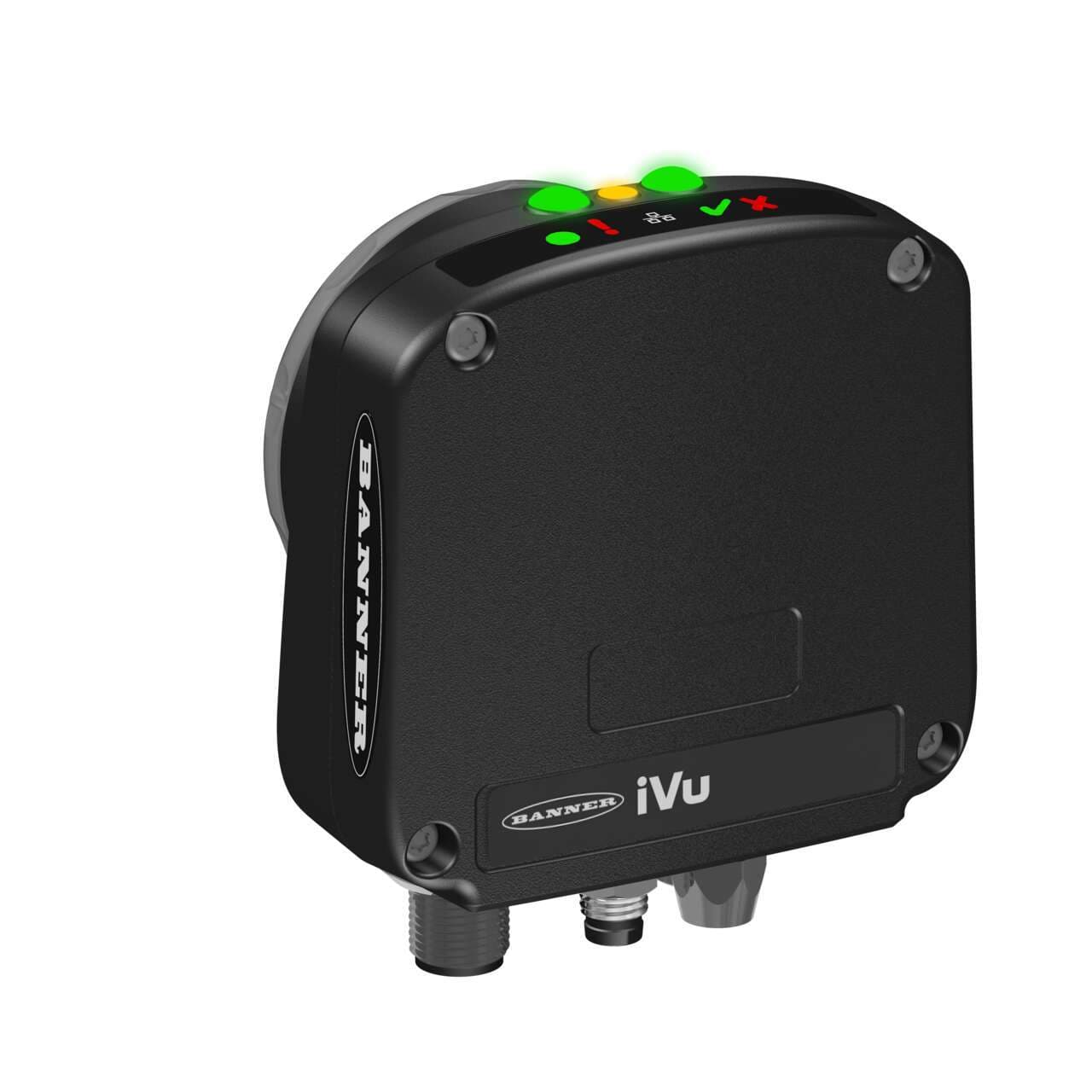

IVU2PRCX08 Banner Barcode Readers

Banner Engineering IVU2PRCX08 is a color image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a remote touchscreen and an 8mm optical lens. The sensor can store up to 30 inspections and supports PCCC. It has a black thermoplastic housing with an acrylic window. For connections, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for the remote display. The communication protocols supported are Ethernet/IP, Modbus TCP, RS-232, and PROFINET. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. The sensor uses a C-mount for mounting, has dimensions of 79 mm in height, 81 mm in width, and 52 mm in depth, and operates in ambient air temperatures ranging from 0 to +45°C. It offers a degree of protection of IP67 and includes 1 x digital output (PNP/NPN transistor). The lens type is 8mm, and it has a refresh rate of 60fps.
