IVU2PRCX04 Banner Barcode Readers

IVU2PRCX04 on Powermatic Associates
Banner
  • IVU2PRCX04
  • IVU2PRCX04

Part#:IVU2PRCX04

Alt. Part#:804391

Manufacturer:Banner

Category:Barcode Readers

Product Lifecycle:Active

Product description

iVu Color Vision Sensor with Remote Screen; No Ring Light and 4.3 mm Lens; Requires Power Cordset and Bracket; Ethernet and USB Cordset Optional

Product Details

  • Weight
    566.99 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PRCX04 on Powermatic Associates is $1,804.00. Order now.

About the product

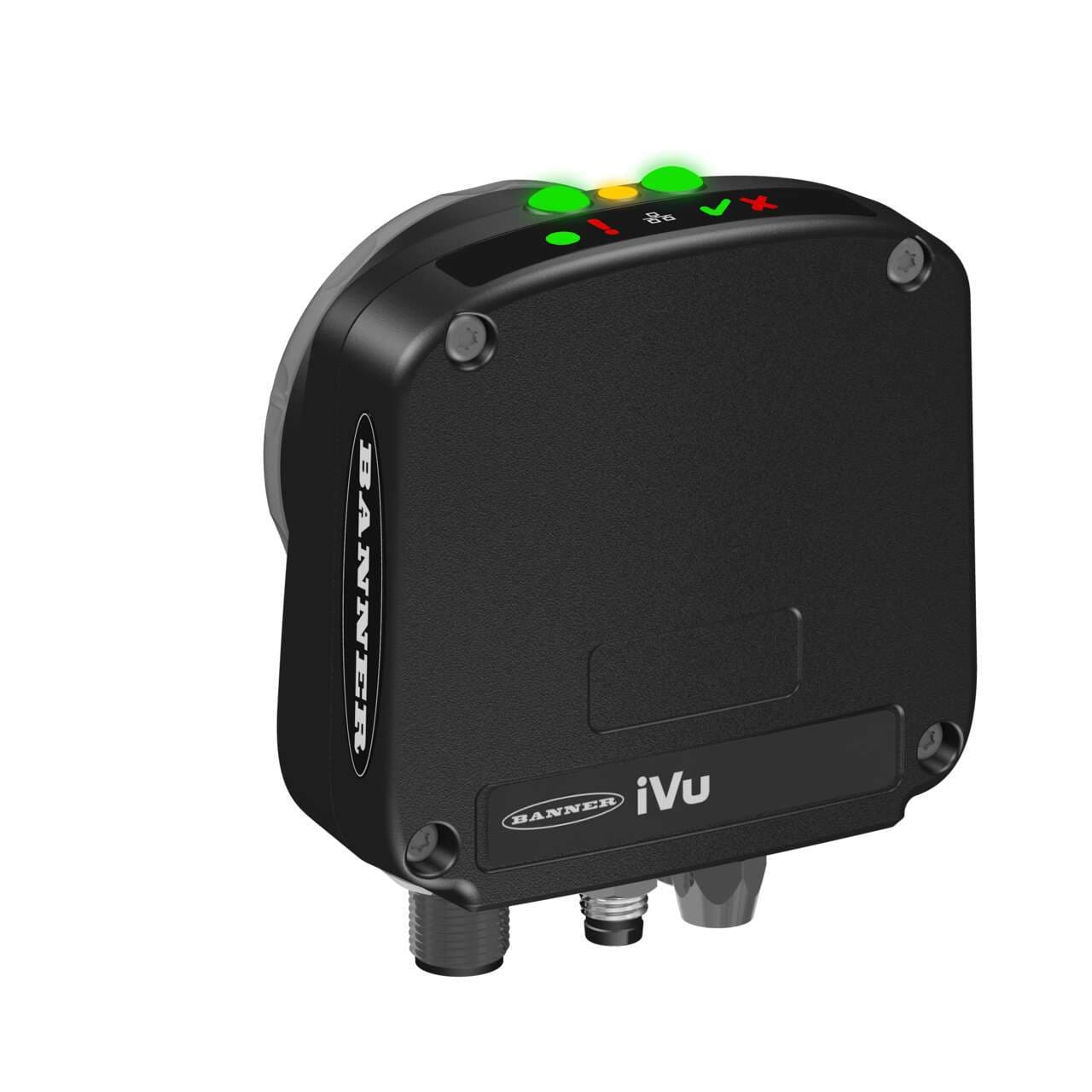

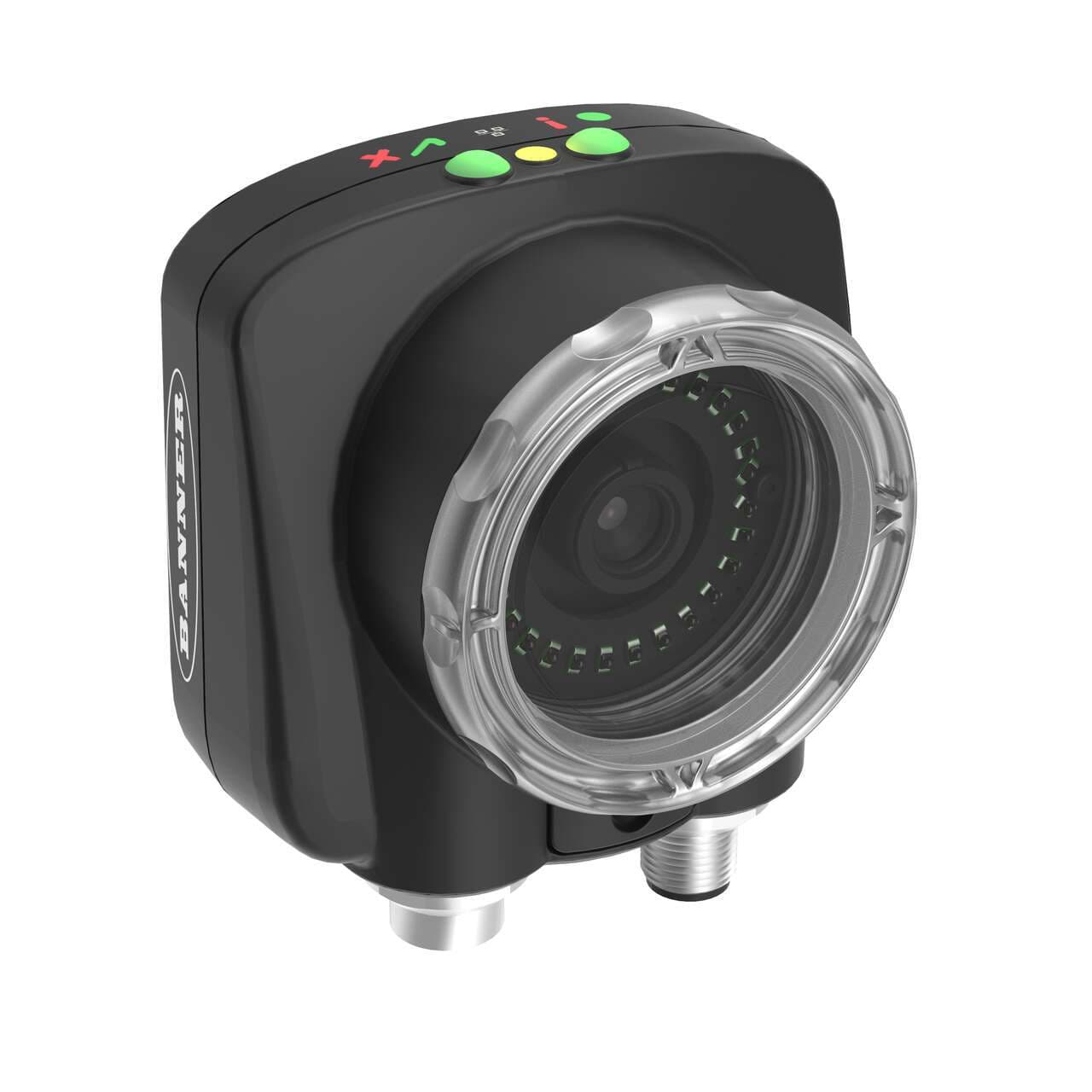

Banner Engineering IVU2PRCX04 is a color image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a remote touchscreen and a 4.3mm optical lens. The sensor can store up to 30 inspections and supports PCCC. It comes in a black housing made of thermoplastic with an acrylic window. For connectivity, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for the remote display. The communication protocols supported are Ethernet/IP, Modbus TCP, RS-232, and PROFINET. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. The sensor is mounted using a C-mount and has dimensions of 79 mm in height, 81 mm in width, and 52 mm in depth. It can operate in ambient air temperatures ranging from 0 to +45°C. The sensor is protected to a degree of IP67 and features 1 x digital output (PNP/NPN transistor). The lens type is 4.3mm, and it has a refresh rate of 60fps.

IVU2PRCX04 Related Documents

178442.pdf

This item can ship within 0 day!

Manufacturer warranty

IVU2PRCX04 Banner

$1,804.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

0

Select Qty:

$1,804.00

$1,804.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
