IVU2PRCW16 Banner Barcode Readers

IVU2PRCW16 on Powermatic Associates
Banner
  • IVU2PRCW16
  • IVU2PRCW16

Part#:IVU2PRCW16

Alt. Part#:804389

Manufacturer:Banner

Category:Barcode Readers

Product Lifecycle:Active

Product description

iVu Color Vision Sensor with Remote Screen; White Ring Light and 16 mm Lens; Requires Power Cordset and Bracket; Ethernet and USB Cordset Optional

Product Details

  • Weight
    589.6696 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PRCW16 on Powermatic Associates is $1,942.00. Order now.

About the product

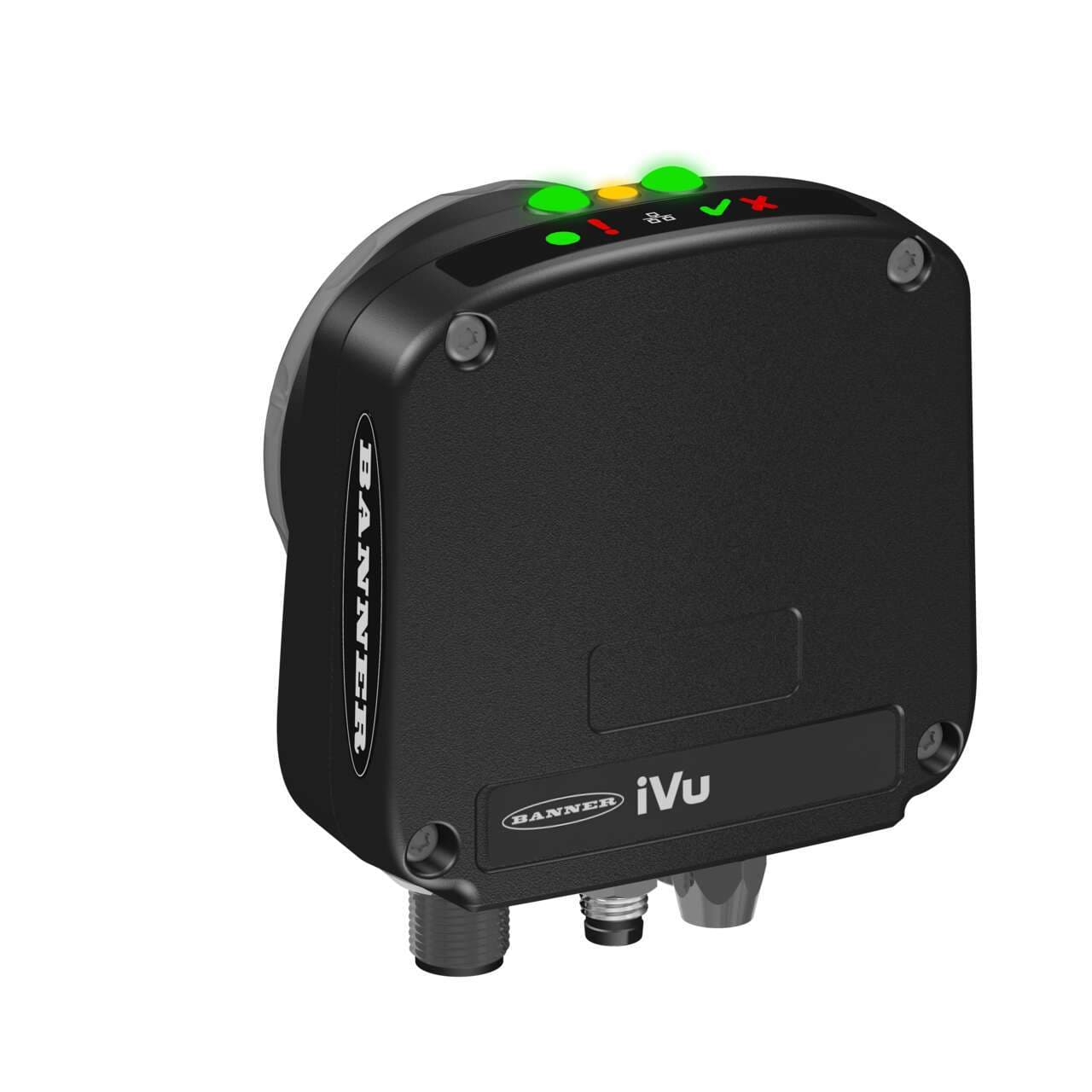

Banner Engineering IVU2PRCW16 is a color image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a remote touchscreen and a 16mm optical lens, complemented by a white LED ring light illumination. This sensor can store up to 30 inspections and supports PCCC. The housing is black, made from thermoplastic with an acrylic window. It comes pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet connections, and an 8-pin Euro-style M12 female connector for the remote display. The IVU2PRCW16 operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. It supports Ethernet/IP, Modbus TCP, RS-232, and PROFINET communication protocols. The sensor is mounted using a C-mount and has a net height of 79 mm, width of 81 mm, and depth of 52 mm. It operates in ambient air temperatures ranging from 0 to +45°C and offers a degree of protection rated at IP67. Additionally, it features 1 x digital output (PNP/NPN transistor) and operates with a refresh rate of 60fps.

IVU2PRCW16 Related Documents

178442.pdf

Manufacturer warranty

IVU2PRCW16 Banner

$1,942.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$1,942.00

$1,942.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
