IVU2PRCW08 Banner Barcode Readers

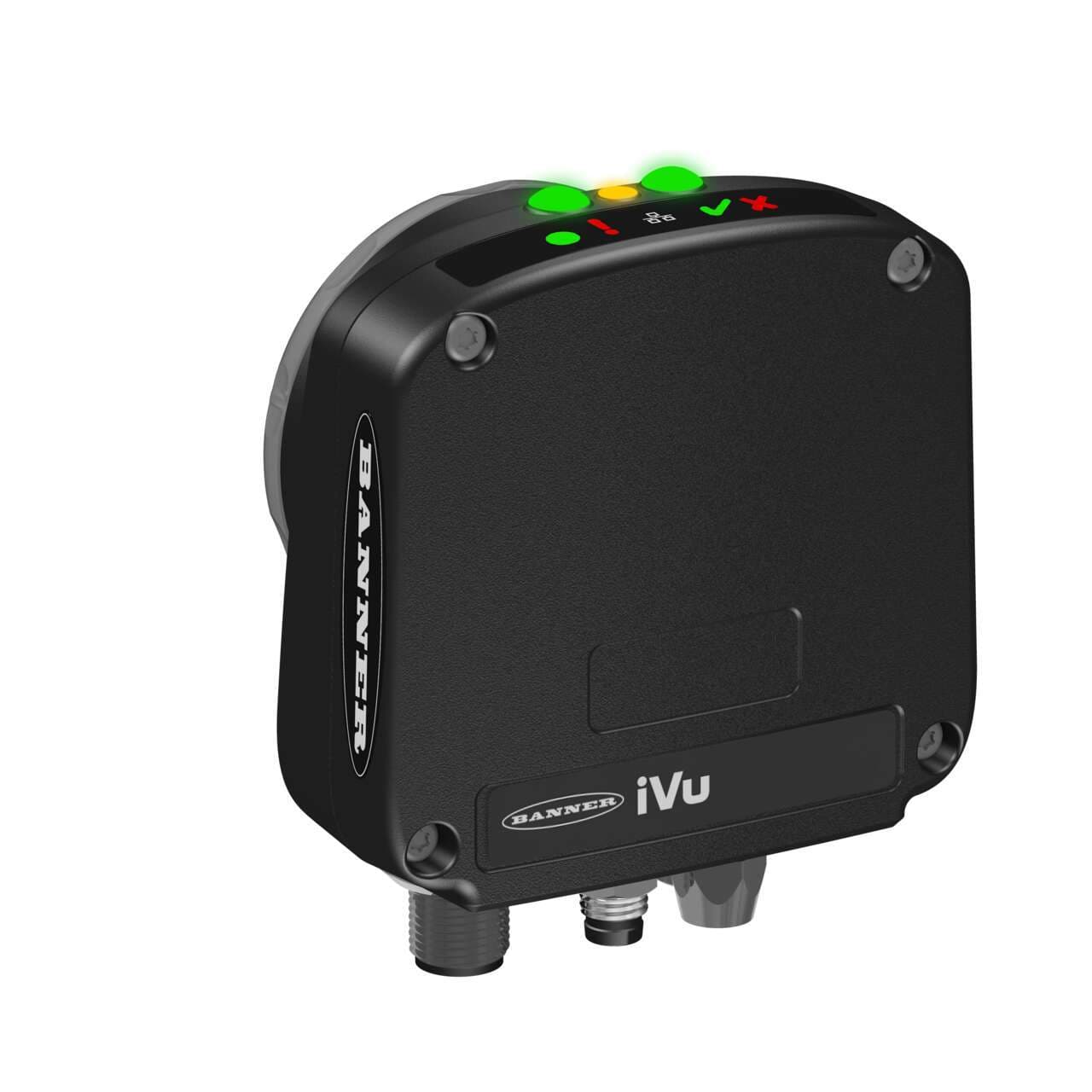

Banner Engineering IVU2PRCW08 is a color image vision sensor kit featuring a 0.36 Megapixel resolution. It is designed with a remote touchscreen and an 8mm optical lens, complemented by a white LED ring light for illumination. This sensor can store up to 30 inspections and supports PCCC. The housing is black, made from thermoplastic with an acrylic window. It offers a variety of connection types, including a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for the remote display. The IVU2PRCW08 operates on Ethernet/IP, Modbus TCP, RS-232, and PROFINET communication protocols. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. The sensor is mounted using a C-mount and measures 79 mm in height, 81 mm in width, and 52 mm in depth. It operates in ambient air temperatures ranging from 0 to +45°C and offers a degree of protection rated at IP67. Additionally, it features 1 x digital output (PNP/NPN transistor), a refresh rate of 60fps, and is equipped with an 8mm lens.
