IVU2PRCW04 Banner Barcode Readers

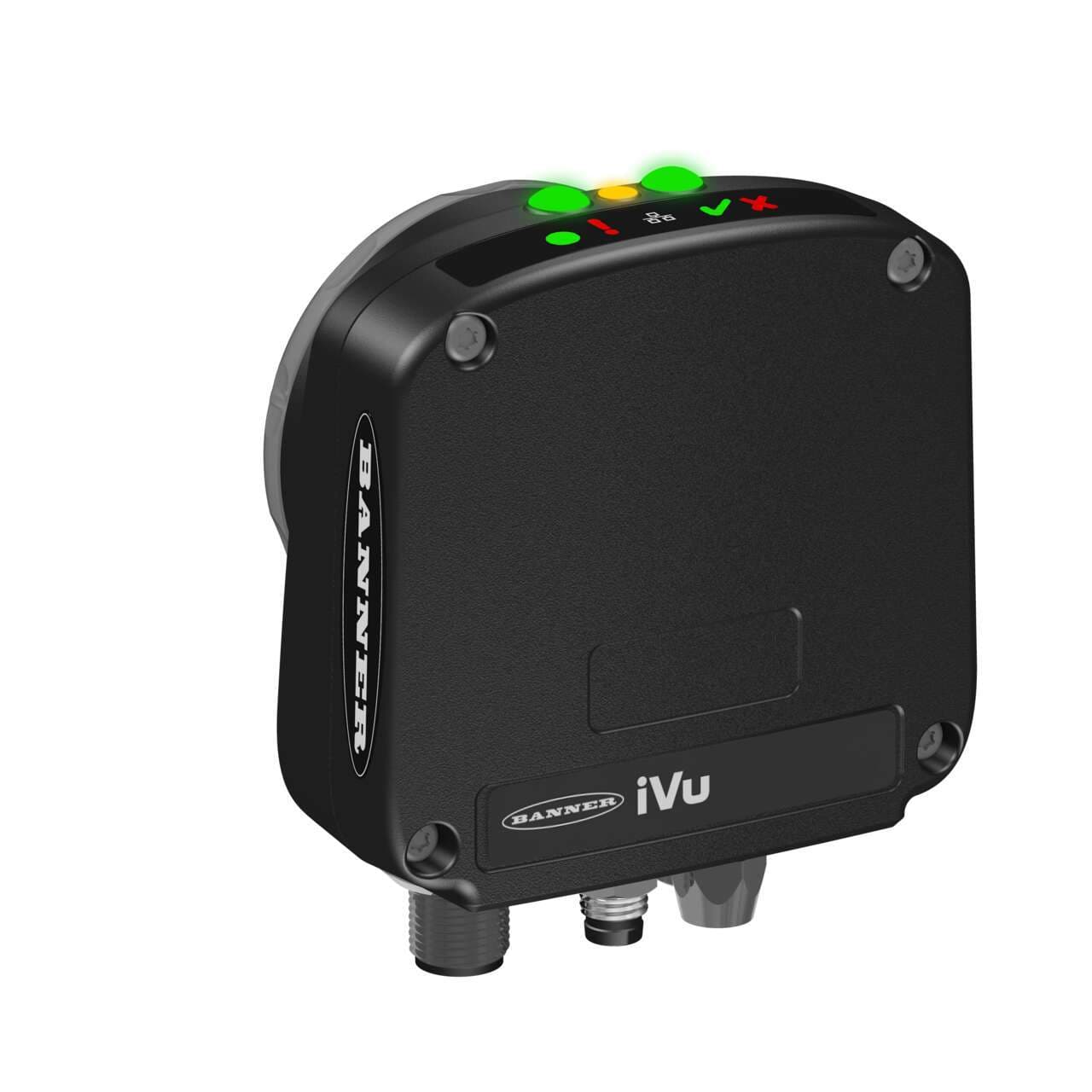

Banner Engineering IVU2PRCW04 is a color image vision sensor kit featuring a 0.36 Megapixel sensor designed for a variety of applications. It comes with a remote touchscreen and a 4.3mm optical lens, complemented by a white LED ring light for illumination. This sensor supports up to 30 inspections storage and is programmable via PCCC. The housing is black, made from thermoplastic with an acrylic window. For connectivity, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (one female and one male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for the remote display. It supports multiple communication protocols including Ethernet/IP, Modbus TCP, RS-232, and PROFINET. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. It is designed for C-mount mounting, has a net height of 79 mm, a width of 81 mm, and a depth of 52 mm. The ambient air temperature for operation ranges from 0 to +45°C. It offers a degree of protection of IP67 and includes 1 x digital output (PNP/NPN transistor). The lens type is 4.3mm, and it operates with a refresh rate of 60fps.
