IVU2PRBX08 Banner Barcode Readers

Name: IVU2PRBX08
Brand: Banner

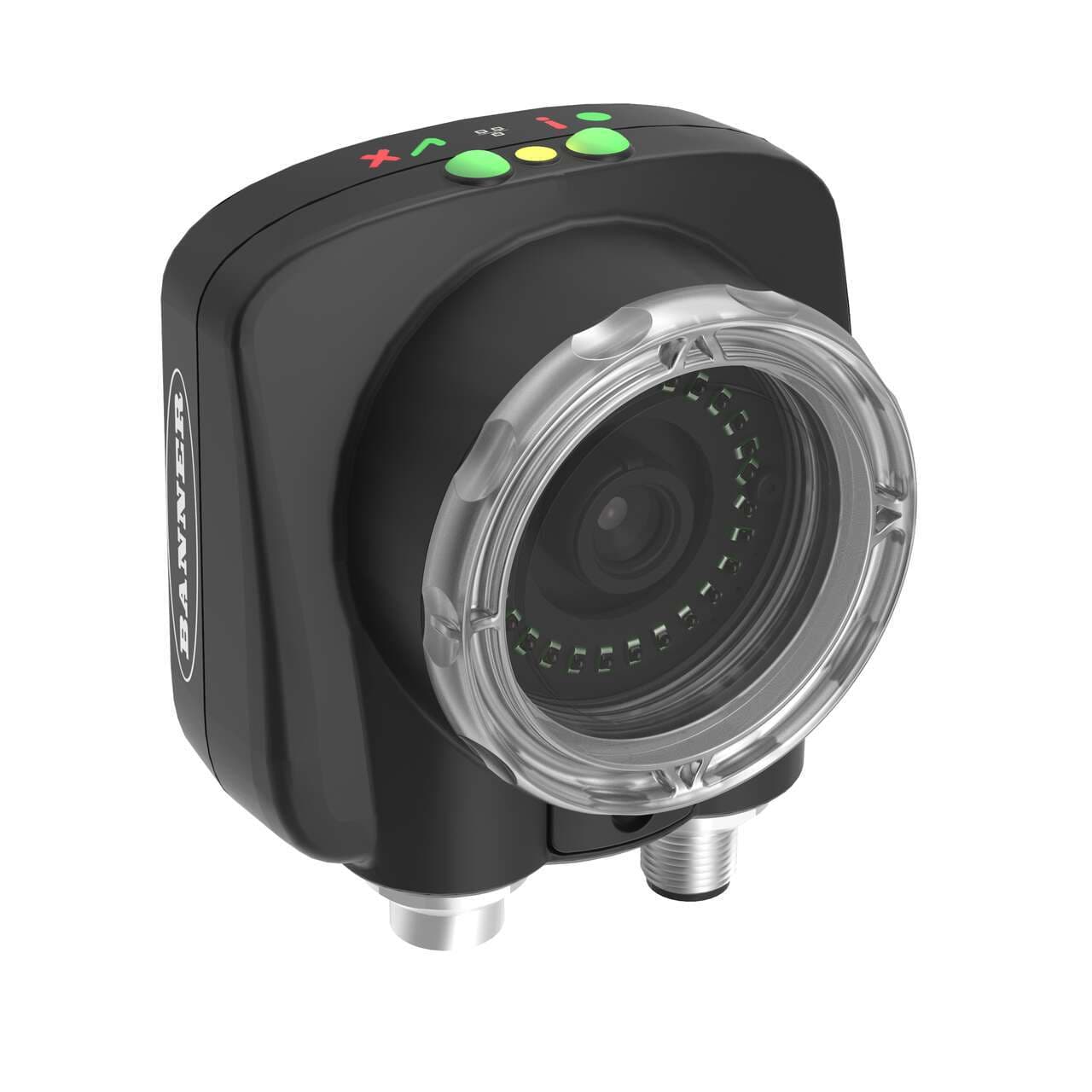

Banner IVU2PRBX08 iVu PLUS BCR Gen2 Remote Sensor with Ethernet; No Light and 8 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Part#:IVU2PRBX08

Manufacturer:Banner

Alt. Part#:90967

Product Lifecycle:Active

Get a quick Quote!

iVu PLUS BCR Gen2 Remote Sensor with Ethernet; No Light and 8 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PRBX08 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
675.85208 g
Country Of Origin
CN
RS-232
Yes
RS-422
No
FTP
No
PROFINET
Yes
Common Ethernet Protocol
No
PCCC
Yes
Modbus/TCP
Yes
EtherNet/IP
Yes
Feature: PC Interface
Yes
Feature: Touchscreen Interface
Yes
Imager Type
Grayscale
Feature: Washdown Rated
Yes
Touchscreen Display
Remote
Code Type
1D, 2D
Lens (mm)
8
Light Color
No Light
Image Resolution
752 x 480 pixels
Device Type
Imager BCR

USB

Primary Housing Material

Thermoplastic

Camera Housing Size (HxWxL mm)

79 x 81 x 52

IP Rating

IP67

Main function

Sensor (Vision)

Primary brand

Banner Engineering

Color

Black housing

Degree of protection

IP67

Type of lens

8mm

Sub-range name

iVu Plus TG and Color Gen2 Image Sensors

Communication protocol

Ethernet/IP Modbus TCP PROFINET RS-232

Design

remote touchscreen 4.3mm optical lns. grayscale sensor

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Functions

1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC

Digital outputs

1 x digital output (PNP/NPN transistor)

Image sensor characteristics

752x480pixels 1/3" CMOS sensing; Monochrome

Material

thermoplastic housing Acrylic window

Order code / Manufacturer SKU

90967

Mounting mode

C-mount

Connection type

Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)

Net Height (mm)

79 mm

Net Width (mm)

81 mm

Ambient air temperature for operation

0...+40 °C

Compliant with standard(s)

cULus CE

Net Depth (mm)

52 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PRBX08 Description

Banner Engineering IVU2PRBX08 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a remote touchscreen and a 4.3mm optical lens capable of storing up to 30 inspections. The device is housed in black thermoplastic with an acrylic window for durability. It offers versatile connectivity options, including a 12-pin Euro-style M12 male connector for power supply, dual 4-pin M8 connectors for USB and Ethernet, and an 8-pin Euro-style M12 female connector for remote display purposes. The IVU2PRBX08 supports multiple communication protocols such as Ethernet/IP, Modbus TCP, PROFINET, and RS-232, making it adaptable to various industrial environments. It operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The barcode reader is designed for C-mount installation and measures 79mm in height, 81mm in width, and 52mm in depth. It can operate in ambient air temperatures ranging from 0 to +40 degrees Celsius and is rated IP67 for protection against dust and water ingress. Additionally, it features a single digital output (PNP/NPN transistor) and is equipped with an 8mm type lens.
