IVU2PRBW08 Banner Barcode Readers

Name: IVU2PRBW08
Brand: Banner

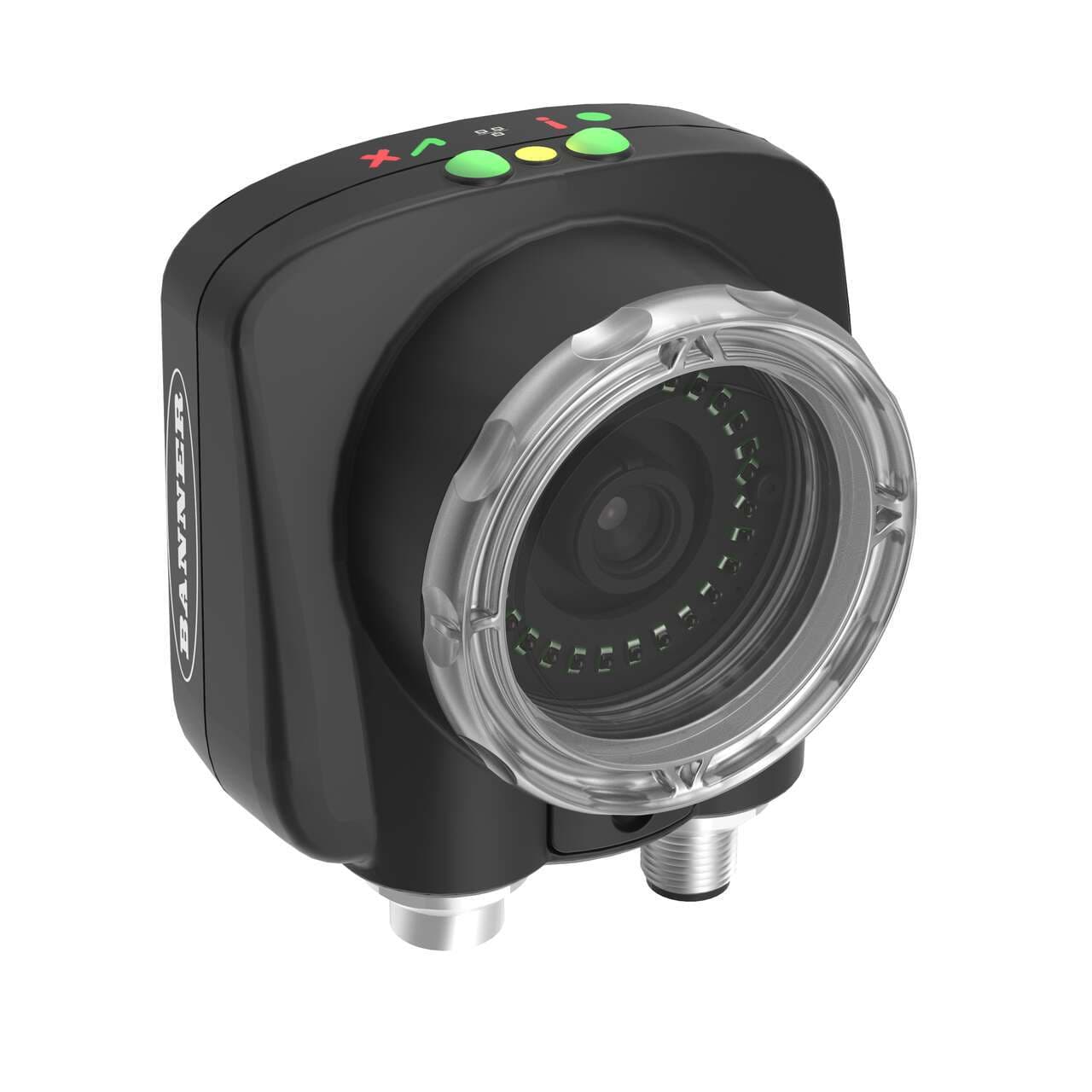

Banner IVU2PRBW08 iVu PLUS BCR Gen2 Remote Sensor with Ethernet; White Ring Light and 8 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Part#:IVU2PRBW08

Manufacturer:Banner

Alt. Part#:90961

Product Lifecycle:Active

Get a quick Quote!

iVu PLUS BCR Gen2 Remote Sensor with Ethernet; White Ring Light and 8 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PRBW08 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
607.81328 g
Country Of Origin
CN
FTP
No
RS-422
No
RS-232
Yes
Modbus/TCP
Yes
PCCC
Yes
PROFINET
Yes
Common Ethernet Protocol
No
EtherNet/IP
Yes
Feature: PC Interface
Yes
Touchscreen Display
Remote
Feature: Touchscreen Interface
Yes
Imager Type
Grayscale
Feature: Washdown Rated
Yes
USB
No
Lens (mm)
8
Primary Housing Material
Thermoplastic
Code Type
1D, 2D
IP Rating
IP67

Device Type

Imager BCR

Image Resolution

752 x 480 pixels

Camera Housing Size (HxWxL mm)

79 x 81 x 52

Sub-range name

iVu Plus TG and Color Gen2 Image Sensors

Image sensor characteristics

752x480pixels 1/3" CMOS sensing; Monochrome

Mounting mode

C-mount

Ambient air temperature for operation

0...+40 °C

Net Depth (mm)

52 mm

Primary brand

Banner Engineering

Functions

1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC

Communication protocol

Ethernet/IP Modbus TCP PROFINET RS-232

Material

thermoplastic housing Acrylic window

Net Height (mm)

79 mm

Main function

Sensor (Vision)

Light Color

White

Connection type

Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)

Compliant with standard(s)

cULus CE

Net Width (mm)

81 mm

Design

remote touchscreen 4.3mm optical lns. white LED ring light illumination grayscale sensor

Degree of protection

IP67

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Color

Black housing

Digital outputs

1 x digital output (PNP/NPN transistor)

Order code / Manufacturer SKU

90961

Type of lens

8mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PRBW08 Description

Banner Engineering IVU2PRBW08 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a remote touchscreen, a 4.3mm optical lens, and a white LED ring light for illumination. The device can store up to 30 inspections and supports PCCC. It has a black thermoplastic housing with an acrylic window. For connectivity, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for the remote display. The IVU2PRBW08 supports Ethernet/IP, Modbus TCP, PROFINET, and RS-232 communication protocols. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. The barcode reader is designed for C-mount installation, has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates in ambient air temperatures ranging from 0 to +40°C and is rated IP67 for protection. The device also features one digital output (PNP/NPN transistor) and utilizes an 8mm type of lens.
