IVU2PRBR16 Banner Barcode Readers

Name: IVU2PRBR16
Brand: Banner

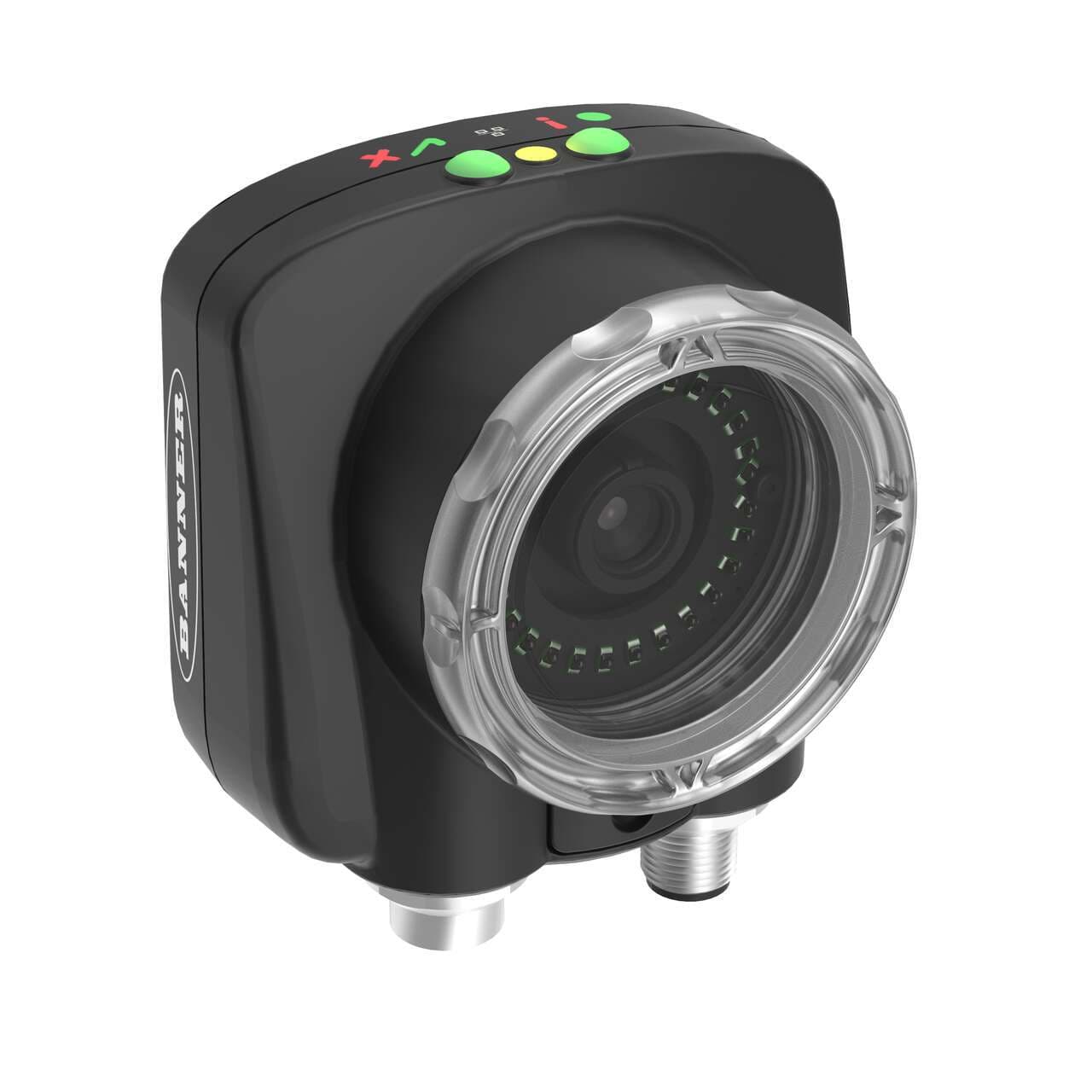

Banner IVU2PRBR16 iVu PLUS BCR Gen2 Remote Sensor with Ethernet; Red Ring Light and 16 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Part#:IVU2PRBR16

Manufacturer:Banner

Alt. Part#:90731

Product Lifecycle:Active

Get a quick Quote!

iVu PLUS BCR Gen2 Remote Sensor with Ethernet; Red Ring Light and 16 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PRBR16 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
603.27736 g
Country Of Origin
CN
PROFINET
Yes
Light Color
Red
RS-232
Yes
FTP
No
Imager Type
Grayscale
PCCC
Yes
Touchscreen Display
Remote
RS-422
No
Common Ethernet Protocol
No
Modbus/TCP
Yes
EtherNet/IP
Yes
Feature: Touchscreen Interface
Yes
Feature: PC Interface
Yes
Feature: Washdown Rated
Yes
Image Resolution
752 x 480 pixels
USB
No
Code Type
1D, 2D
Lens (mm)
16

Primary Housing Material

Thermoplastic

Camera Housing Size (HxWxL mm)

79 x 81 x 52

IP Rating

IP67

Device Type

Imager BCR

Main function

Sensor (Vision)

Design

remote touchscreen 16mm optical lns. red LED ring light illumination grayscale sensor

Degree of protection

IP67

Net Width (mm)

81 mm

Image sensor characteristics

752x480pixels 1/3" CMOS sensing; Monochrome

Mounting mode

C-mount

Digital outputs

1 x digital output (PNP/NPN transistor)

Net Depth (mm)

52 mm

Primary brand

Banner Engineering

Connection type

Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)

Ambient air temperature for operation

0...+40 °C

Compliant with standard(s)

cULus CE

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Color

Black housing

Order code / Manufacturer SKU

90731

Sub-range name

iVu Plus TG and Color Gen2 Image Sensors

Functions

1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC

Communication protocol

Ethernet/IP Modbus TCP PROFINET RS-232

Material

thermoplastic housing Acrylic window

Net Height (mm)

79 mm

Type of lens

16mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PRBR16 Description

Banner Engineering IVU2PRBR16 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It is designed with a remote touchscreen, a 16mm optical lens, and a red LED ring light for illumination. This model can store up to 30 inspections and supports PCCC. The housing is black, made from thermoplastic with an acrylic window. It comes pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet connections, and an 8-pin Euro-style M12 female connector for the remote display. The IVU2PRBR16 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. The device is designed for C-mount mounting, has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates within an ambient air temperature range of 0 to +40 °C and offers a degree of protection rated at IP67. Additionally, it features 1 x digital output (PNP/NPN transistor) and utilizes a 16mm type of lens.
