IVU2PRBR12 Banner Barcode Readers

Name: IVU2PRBR12
Brand: Banner

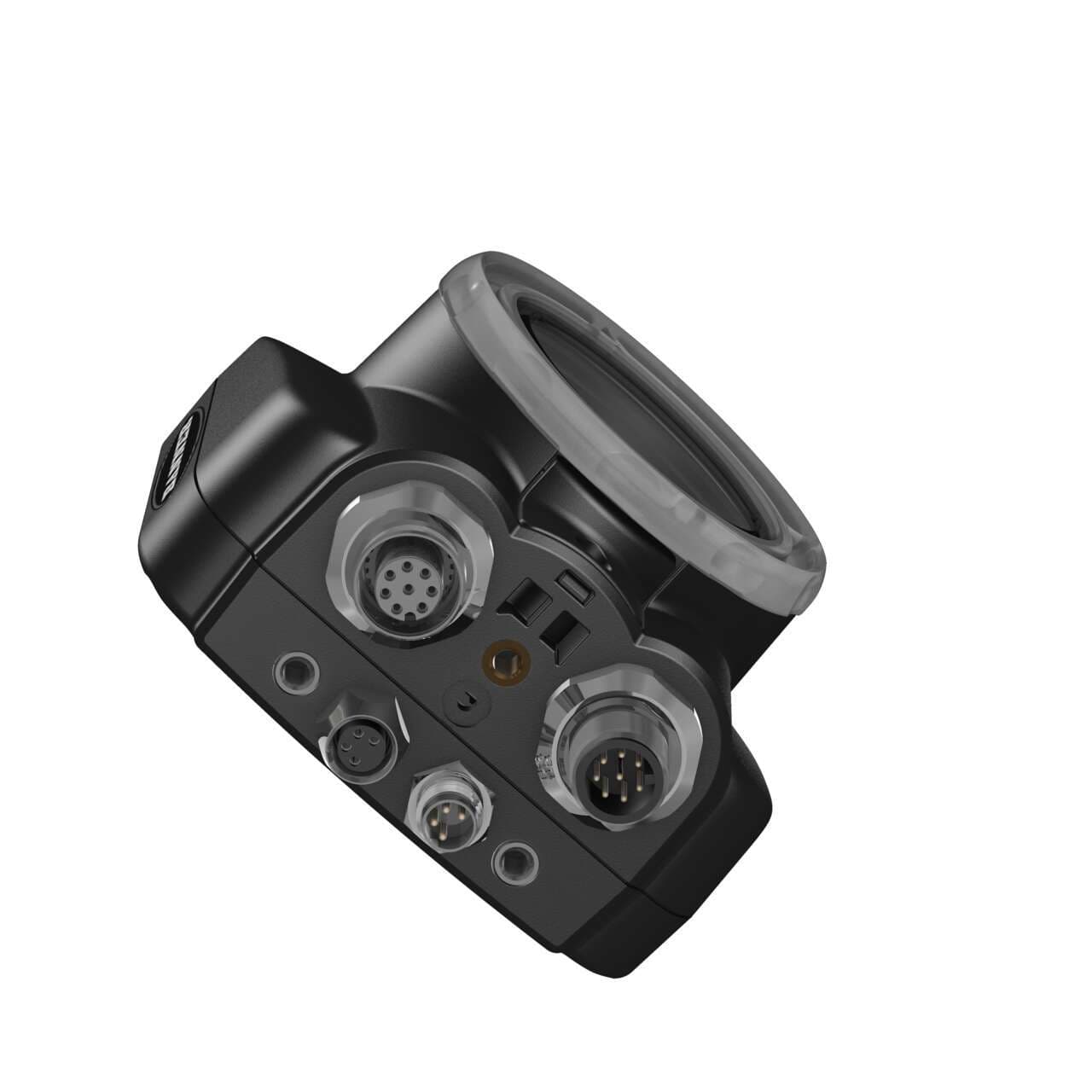

Banner IVU2PRBR12 iVu PLUS BCR Gen2 Remote Sensor with Ethernet; Red Ring Light and 12 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Part#:IVU2PRBR12

Manufacturer:Banner

Alt. Part#:90730

Product Lifecycle:Active

Get a quick Quote!

iVu PLUS BCR Gen2 Remote Sensor with Ethernet; Red Ring Light and 12 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PRBR12 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
675.85208 g
Country Of Origin
CN
Light Color
Red
FTP
No
Touchscreen Display
Remote
RS-422
No
RS-232
Yes
PROFINET
Yes
Modbus/TCP
Yes
Common Ethernet Protocol
No
PCCC
Yes
EtherNet/IP
Yes
Feature: Touchscreen Interface
Yes
Feature: PC Interface
Yes
Feature: Washdown Rated
Yes
Imager Type
Grayscale
USB
No
Image Resolution
752 x 480 pixels
Lens (mm)
12
Code Type
1D, 2D

Primary Housing Material

Thermoplastic

Camera Housing Size (HxWxL mm)

79 x 81 x 52

IP Rating

IP67

Device Type

Imager BCR

Sub-range name

iVu Plus TG and Color Gen2 Image Sensors

Primary brand

Banner Engineering

Functions

1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC

Main function

Sensor (Vision)

Image sensor characteristics

752x480pixels 1/3" CMOS sensing; Monochrome

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Design

remote touchscreen 12mm optical lns. red LED ring light illumination grayscale sensor

Color

Black housing

Material

thermoplastic housing Acrylic window

Net Height (mm)

79 mm

Communication protocol

Ethernet/IP Modbus TCP PROFINET RS-232

Mounting mode

C-mount

Compliant with standard(s)

cULus CE

Degree of protection

IP67

Order code / Manufacturer SKU

90730

Digital outputs

1 x digital output (PNP/NPN transistor)

Connection type

Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)

Ambient air temperature for operation

0...+40 °C

Net Width (mm)

81 mm

Net Depth (mm)

52 mm

Type of lens

12mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PRBR12 Description

Banner Engineering IVU2PRBR12 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It is designed with a remote touchscreen, a 12mm optical lens, and a red LED ring light for illumination. The device can store up to 30 inspections and supports PCCC. It has a visible red light color and comes in a black housing made of thermoplastic with an acrylic window. For connectivity, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for the remote display. The IVU2PRBR12 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. The barcode reader is designed for C-mount installation, has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates in ambient air temperatures ranging from 0 to +40°C and offers a degree of protection of IP67. Additionally, it features 1 x digital output (PNP/NPN transistor) and utilizes a 12mm type of lens.
