IVU2PRBR08
Banner
Product Lifecycle: Active

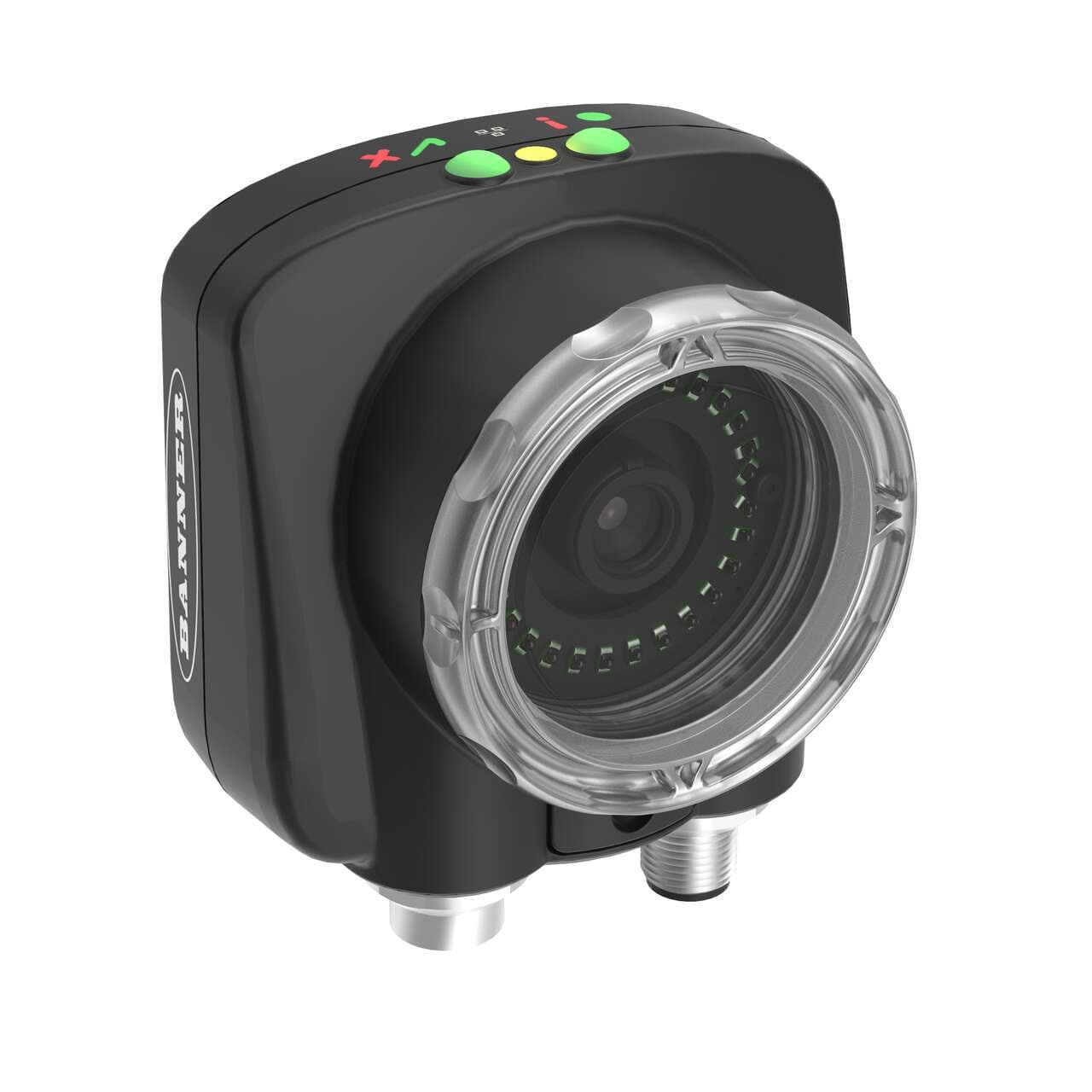

Banner Engineering IVU2PRBR08 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a remote touchscreen and an 8mm optical lens, equipped with a red LED ring light for illumination. This model has the capacity to store up to 30 inspections and supports PCCC. The housing is black, made of thermoplastic with an acrylic window. For connectivity, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (one female and one male) for USB and Ethernet connections, and an 8-pin Euro-style M12 female connector for the remote display. It supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. The supply voltage ranges from 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. It is designed for C-mount mounting and has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. The operating ambient air temperature range is from 0 to +40 °C. This device offers a degree of protection of IP67 and includes 1 x digital output (PNP/NPN transistor).
![IVU2PRBR08](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F8fe7f94a-9bc1-4516-8657-be1406b9cf36.jpeg&w=3840&q=75)
Banner Engineering IVU2PRBR08 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a remote touchscreen and an 8mm optical lens, equipped with a red LED ring light for illumination. This model has the capacity to store up to 30 inspections and supports PCCC. The housing is black, made of thermoplastic with an acrylic window. For connectivity, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (one female and one male) for USB and Ethernet connections, and an 8-pin Euro-style M12 female connector for the remote display. It supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. The supply voltage ranges from 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. It is designed for C-mount mounting and has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. The operating ambient air temperature range is from 0 to +40 °C. This device offers a degree of protection of IP67 and includes 1 x digital output (PNP/NPN transistor).
- PROFINETYes
- FTPNo
- RS-232Yes
- RS-422No
- Modbus/TCPYes
- PCCCYes
- Feature: Touchscreen InterfaceYes
- Common Ethernet ProtocolNo
- EtherNet/IPYes
- Touchscreen DisplayRemote
- Imager TypeGrayscale
- Light ColorRed
- Lens (mm)8
- Code Type1D, 2D
- Device TypeImager BCR
- Image Resolution752 x 480 pixels
- IP RatingIP67
- Feature: Washdown RatedYes
- Feature: PC InterfaceYes
- USBNo
- Camera Housing Size (HxWxL mm)79 x 81 x 52
- Primary Housing MaterialThermoplastic
- Image sensor characteristics752x480pixels 1/3" CMOS sensing; Monochrome
- Mounting modeC-mount
- Compliant with standard(s)cULus CE
- Functions1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC
- Communication protocolEthernet/IP Modbus TCP PROFINET RS-232
- Degree of protectionIP67
- ColorBlack housing
- Materialthermoplastic housing Acrylic window
- Net Depth (mm)52 mm
- Digital outputs1 x digital output (PNP/NPN transistor)
- Net Height (mm)79 mm
- Type of lens8mm
- Order code / Manufacturer SKU90729
- Main functionSensor (Vision)
- Sub-range nameiVu Plus TG and Color Gen2 Image Sensors
- Primary brandBanner Engineering
- Designremote touchscreen 8mm optical lns. red LED ring light illumination grayscale sensor
- Ambient air temperature for operation0...+40 °C
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection typePre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)
- Net Width (mm)81 mm
