IVU2PRBR04 Banner Barcode Readers

Name: IVU2PRBR04
Brand: Banner
Price: 1942 USD
Availability: BackOrder

Part#:IVU2PRBR04

Alt. Part#:90727

Manufacturer:Banner

Category:Barcode Readers

Product Lifecycle:Active

Product description

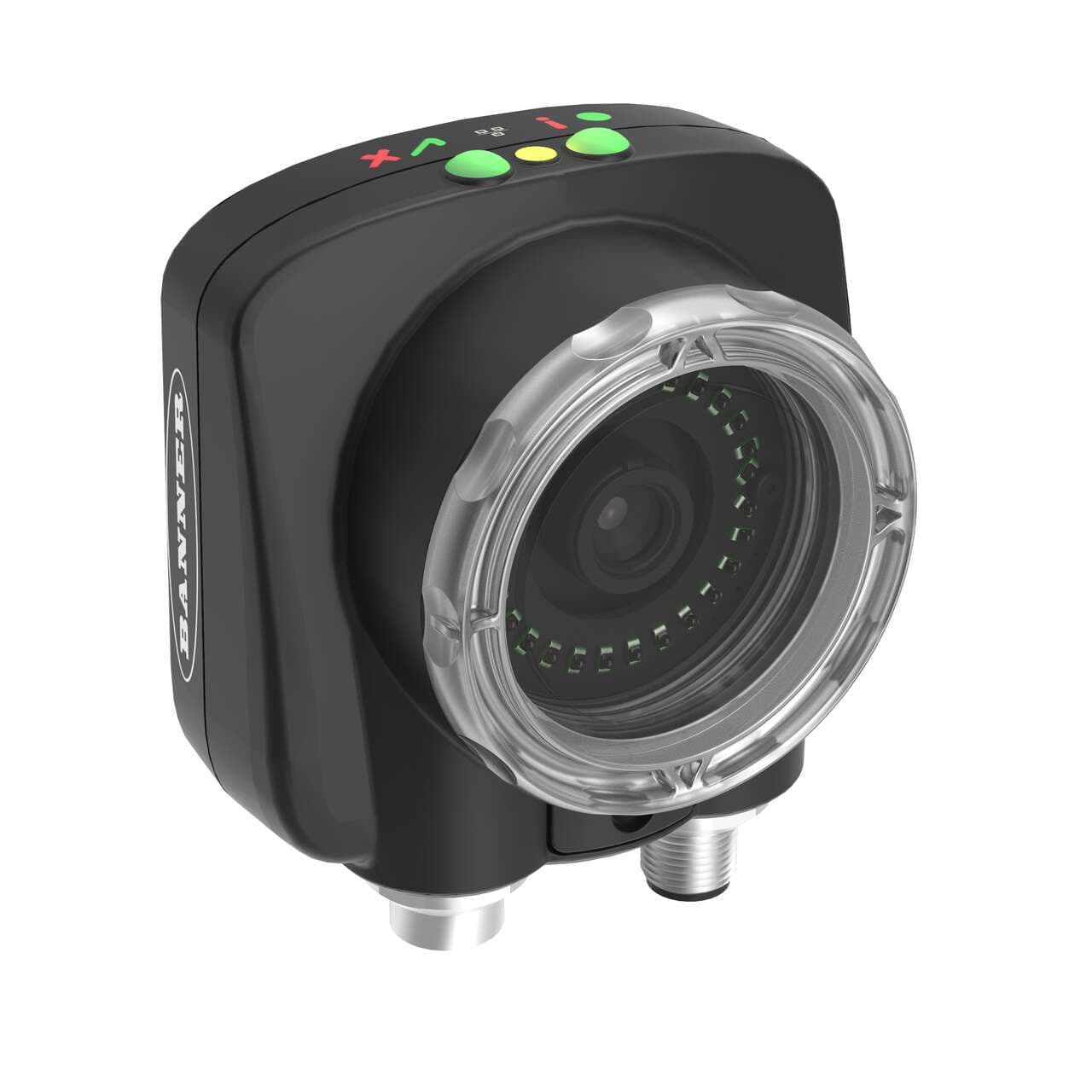

iVu PLUS BCR Gen2 Remote Sensor with Ethernet; Red Ring Light and 4.3 mm Lens; Requires Power Cordset and Bracket; Ethernet and USB Cordset Optional

Product Details

Weight
675.85208 g
Country Of Origin
CN
RS-422
No
RS-232
Yes
Imager Type
Grayscale
Light Color
Red
FTP
No
PCCC
Yes
PROFINET
Yes
EtherNet/IP
Yes
Common Ethernet Protocol
No
Modbus/TCP
Yes
Touchscreen Display
Remote
Feature: Touchscreen Interface
Yes
Feature: Washdown Rated
Yes
Feature: PC Interface
Yes
Camera Housing Size (HxWxL mm)
79 x 81 x 52
Code Type
1D, 2D
IP Rating
IP67
USB
No

Image Resolution

752 x 480 pixels

Lens (mm)

Primary Housing Material

Thermoplastic

Device Type

Imager BCR

Main function

Sensor (Vision)

Design

remote touchscreen 4.3mm optical lns. red LED ring light illumination grayscale sensor

Digital outputs

1 x digital output (PNP/NPN transistor)

Material

thermoplastic housing Acrylic window

Net Width (mm)

81 mm

Color

Black housing

Ambient air temperature for operation

0...+40 °C

Primary brand

Banner Engineering

Sub-range name

iVu Plus TG and Color Gen2 Image Sensors

Image sensor characteristics

752x480pixels 1/3" CMOS sensing; Monochrome

Connection type

Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)

Degree of protection

IP67

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Mounting mode

C-mount

Functions

1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC

Communication protocol

Ethernet/IP Modbus TCP PROFINET RS-232

Net Height (mm)

79 mm

Compliant with standard(s)

cULus CE

Net Depth (mm)

52 mm

Order code / Manufacturer SKU

90727

Type of lens

4.3mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PRBR04 on Powermatic Associates is $1,942.00. Order now.

About the product

Banner Engineering IVU2PRBR04 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a remote touchscreen, a 4.3mm optical lens, and a red LED ring light for illumination. The device is capable of storing up to 30 inspections and supports PCCC. It has a visible red light color and is encased in a black thermoplastic housing with an acrylic window. For connectivity, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for the remote display. The IVU2PRBR04 supports multiple communication protocols including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. The barcode reader offers a C-mount mounting mode, has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates within an ambient air temperature range of 0 to +40 °C and has a degree of protection of IP67. Additionally, it features 1 x digital output (PNP/NPN transistor).
