IVU2PRBI25
Banner
Product Lifecycle: Active

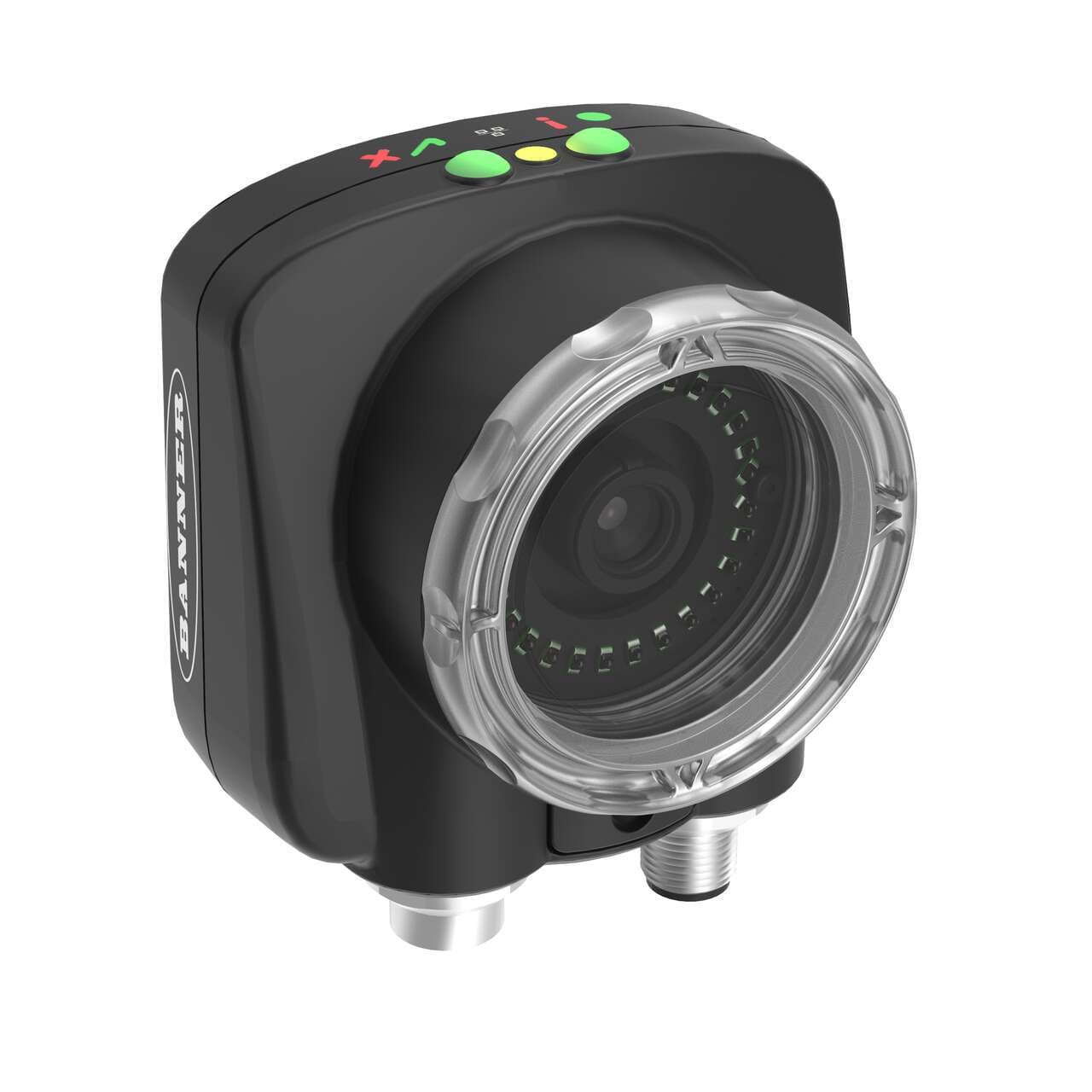

Banner Engineering IVU2PRBI25 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a remote touchscreen and a 25mm optical lens. This model is equipped with an infrared (IR) LED ring light for illumination and can store up to 30 inspections. The housing is black, made from thermoplastic, and the window is acrylic. It offers a variety of connection options, including a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for the remote display. The IVU2PRBI25 supports multiple communication protocols such as Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. The device is designed for C-mount installation, has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates in ambient air temperatures ranging from 0 to +40 degrees Celsius and is rated IP67 for protection against dust and water ingress. Additionally, it features 1 x digital output (PNP/NPN transistor) and utilizes a 25mm lens.
![IVU2PRBI25](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F1961cf0b-f822-4234-915f-7dbb855d44ca.jpeg&w=3840&q=75)
Banner Engineering IVU2PRBI25 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a remote touchscreen and a 25mm optical lens. This model is equipped with an infrared (IR) LED ring light for illumination and can store up to 30 inspections. The housing is black, made from thermoplastic, and the window is acrylic. It offers a variety of connection options, including a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for the remote display. The IVU2PRBI25 supports multiple communication protocols such as Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. The device is designed for C-mount installation, has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates in ambient air temperatures ranging from 0 to +40 degrees Celsius and is rated IP67 for protection against dust and water ingress. Additionally, it features 1 x digital output (PNP/NPN transistor) and utilizes a 25mm lens.
- Light ColorInfrared
- FTPNo
- RS-422No
- RS-232Yes
- Modbus/TCPYes
- PROFINETYes
- PCCCYes
- Feature: Touchscreen InterfaceYes
- Feature: PC InterfaceYes
- Imager TypeGrayscale
- Feature: Washdown RatedYes
- Common Ethernet ProtocolNo
- EtherNet/IPYes
- Touchscreen DisplayRemote
- Device TypeImager BCR
- USBNo
- Code Type1D, 2D
- Lens (mm)25
- Image Resolution752 x 480 pixels
- Camera Housing Size (HxWxL mm)79 x 81 x 52
- Primary Housing MaterialThermoplastic
- IP RatingIP67
- ColorBlack housing
- Compliant with standard(s)cULus CE
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Materialthermoplastic housing Acrylic window
- Type of lens25mm
- Main functionSensor (Vision)
- Functions1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC
- Communication protocolEthernet/IP Modbus TCP PROFINET RS-232
- Mounting modeC-mount
- Net Height (mm)79 mm
- Sub-range nameiVu Plus TG and Color Gen2 Image Sensors
- Image sensor characteristics752x480pixels 1/3" CMOS sensing; Monochrome
- Connection typePre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)
- Ambient air temperature for operation0...+40 °C
- Net Width (mm)81 mm
- Primary brandBanner Engineering
- Designremote touchscreen 25mm optical lns. infrared (IR) LED ring light illumination grayscale sensor
- Digital outputs1 x digital output (PNP/NPN transistor)
- Degree of protectionIP67
- Order code / Manufacturer SKU90958
- Net Depth (mm)52 mm
