IVU2PRBI12 Banner Barcode Readers

Name: IVU2PRBI12
Brand: Banner
Price: 1942 USD
Availability: BackOrder

Part#:IVU2PRBI12

Manufacturer:Banner

Alt. Part#:90956

Product Lifecycle:Active

Get a quick Quote!

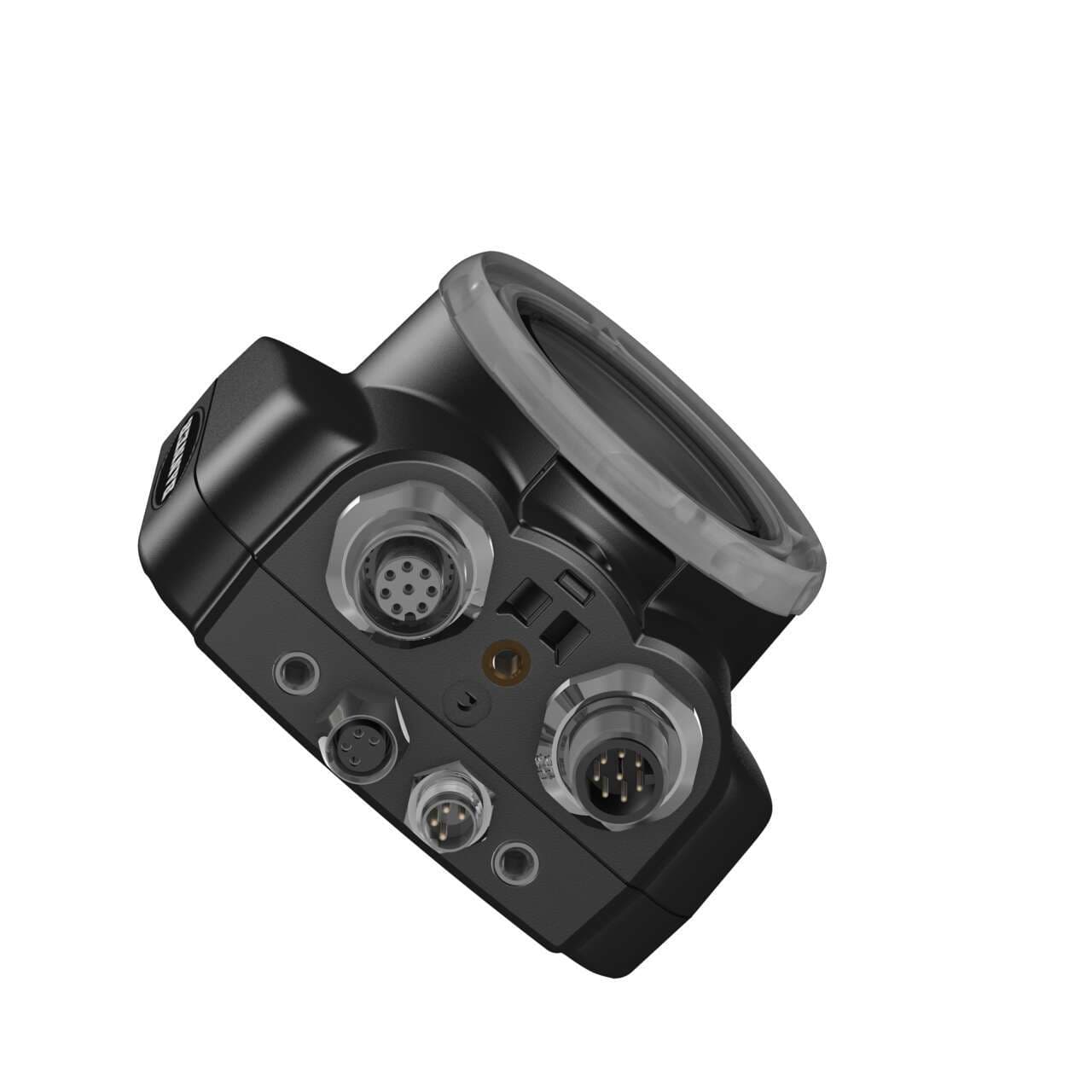

iVu PLUS BCR Gen2 Remote Sensor with Ethernet; IR Ring Light and 12 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PRBI12 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
675.85208 g
Country Of Origin
CN
PROFINET
Yes
FTP
No
RS-422
No
RS-232
Yes
Common Ethernet Protocol
No
Modbus/TCP
Yes
Feature: Washdown Rated
Yes
PCCC
Yes
EtherNet/IP
Yes
Feature: Touchscreen Interface
Yes
Touchscreen Display
Remote
Code Type
1D, 2D
Image Resolution
752 x 480 pixels
Feature: PC Interface
Yes
Imager Type
Grayscale
Camera Housing Size (HxWxL mm)
79 x 81 x 52
Primary Housing Material
Thermoplastic
Light Color
Infrared

Device Type

Imager BCR

IP Rating

IP67

USB

Lens (mm)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PRBI12 Description

Banner Engineering IVU2PRBI12 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel sensor. It comes with a remote touchscreen and a 12mm optical lens, equipped with an infrared (IR) LED ring light for illumination. The device can store up to 30 inspections and supports PCCC. It has a black thermoplastic housing with an acrylic window. For connectivity, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for the remote display. The IVU2PRBI12 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. The barcode reader is designed for C-mount installation, has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates in ambient air temperatures ranging from 0 to +40 °C and offers a degree of protection of IP67. Additionally, it features 1 x digital output (PNP/NPN transistor) and utilizes a 12mm type of lens.
