IVU2PRBB06 Banner Barcode Readers

Name: IVU2PRBB06
Brand: Banner

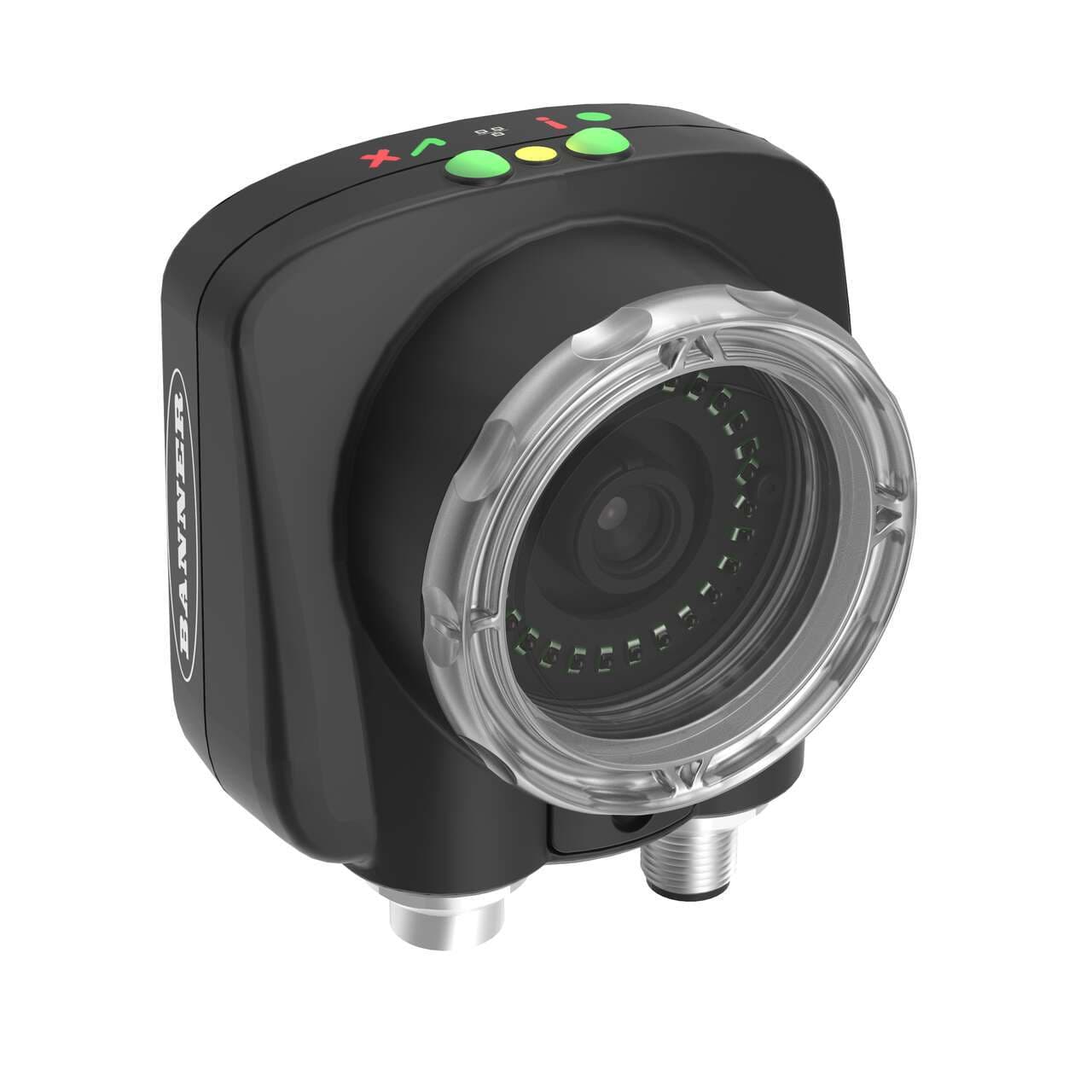

Banner IVU2PRBB06 iVu PLUS BCR Gen2 Remote Sensor with Ethernet; Blue Ring Light and 6 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Part#:IVU2PRBB06

Manufacturer:Banner

Alt. Part#:90942

Product Lifecycle:Active

Get a quick Quote!

iVu PLUS BCR Gen2 Remote Sensor with Ethernet; Blue Ring Light and 6 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PRBB06 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
675.85208 g
Country Of Origin
CN
FTP
No
RS-232
Yes
RS-422
No
EtherNet/IP
Yes
PROFINET
Yes
Common Ethernet Protocol
No
PCCC
Yes
Imager Type
Grayscale
Modbus/TCP
Yes
Touchscreen Display
Remote
Camera Housing Size (HxWxL mm)
79 x 81 x 52
USB
No
Feature: Touchscreen Interface
Yes
Feature: PC Interface
Yes
Feature: Washdown Rated
Yes
Light Color
Blue
Lens (mm)
6
Code Type
1D, 2D

Primary Housing Material

Thermoplastic

Image Resolution

752 x 480 pixels

IP Rating

IP67

Device Type

Imager BCR

Primary brand

Banner Engineering

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Color

Black housing

Order code / Manufacturer SKU

90942

Net Depth (mm)

52 mm

Sub-range name

iVu Plus TG and Color Gen2 Image Sensors

Design

remote touchscreen 6mm optical lns. blue LED ring light illumination grayscale sensor

Ambient air temperature for operation

0...+40 °C

Type of lens

6mm

Main function

Sensor (Vision)

Image sensor characteristics

752x480pixels 1/3" CMOS sensing; Monochrome

Communication protocol

Ethernet/IP Modbus TCP PROFINET RS-232

Degree of protection

IP67

Net Height (mm)

79 mm

Functions

1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC

Connection type

Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)

Mounting mode

C-mount

Compliant with standard(s)

cULus CE

Net Width (mm)

81 mm

Digital outputs

1 x digital output (PNP/NPN transistor)

Material

thermoplastic housing Acrylic window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PRBB06 Description

Banner Engineering IVU2PRBB06 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It is designed with a remote touchscreen, a 6mm optical lens, and a blue LED ring light for illumination. The device can store up to 30 inspections and supports PCCC. It has a visible blue light color and comes in a black housing made of thermoplastic with an acrylic window. For connectivity, it is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (female and male) for USB and Ethernet, and an 8-pin Euro-style M12 female connector for the remote display. The IVU2PRBB06 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal. The barcode reader is mounted using a C-mount and has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates in ambient air temperatures ranging from 0 to +40°C and offers a degree of protection of IP67. Additionally, it features 1 x digital output (PNP/NPN transistor).
