Part#:ITETA1.59S

Alt. Part#:83022

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

FIBER ITETA1.59S GLASS FIBER

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    US
  • Application: Liquid Level
    No
  • Fiber Sensing End Size - Mounting Area
    #5/16-24 thread
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Max Distance: DF-G1 (mm)
    No Data
  • Measured Max Distance (mm)
    No Data
  • Termination Type
    Glass Fiber Sensors
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Sensing End Segment 3
    Sideview
  • Max Temp ( °C)
    249
  • Core Diameter (mm)
    2.3
  • Flex Relief
    No
  • Retractile
    No
  • Fiber Sensing End Size
    5.3 mm
  • Sensing End Segment 1
    Thread
  • Fiber Length (m)
    2.744
  • Beam Exit
    Right Angle
  • Housing Style
    Round
  • Sensing Mode (Detailed)
    Reflective
  • Quantity Included
    1
  • Tariff Fiber Meters (fbm)
    4777.3
  • Application: Vacuum Feed Through
    None
  • Feature: Small Object Detection
    No
  • Termination
    Terminated
  • Minimum Bend Radius (mm)
    25
  • Sensing End Segment 2
    Ferrule
  • Sensing Mode (General)
    Opposed
  • Fiber Optic Type
    Glass
  • Fiber Sensing End Tip
    Sideview
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Sensing End Material (Specific)
    Stainless Steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ITETA1.59S on Powermatic Associates is $267.00. Order now.

About the product

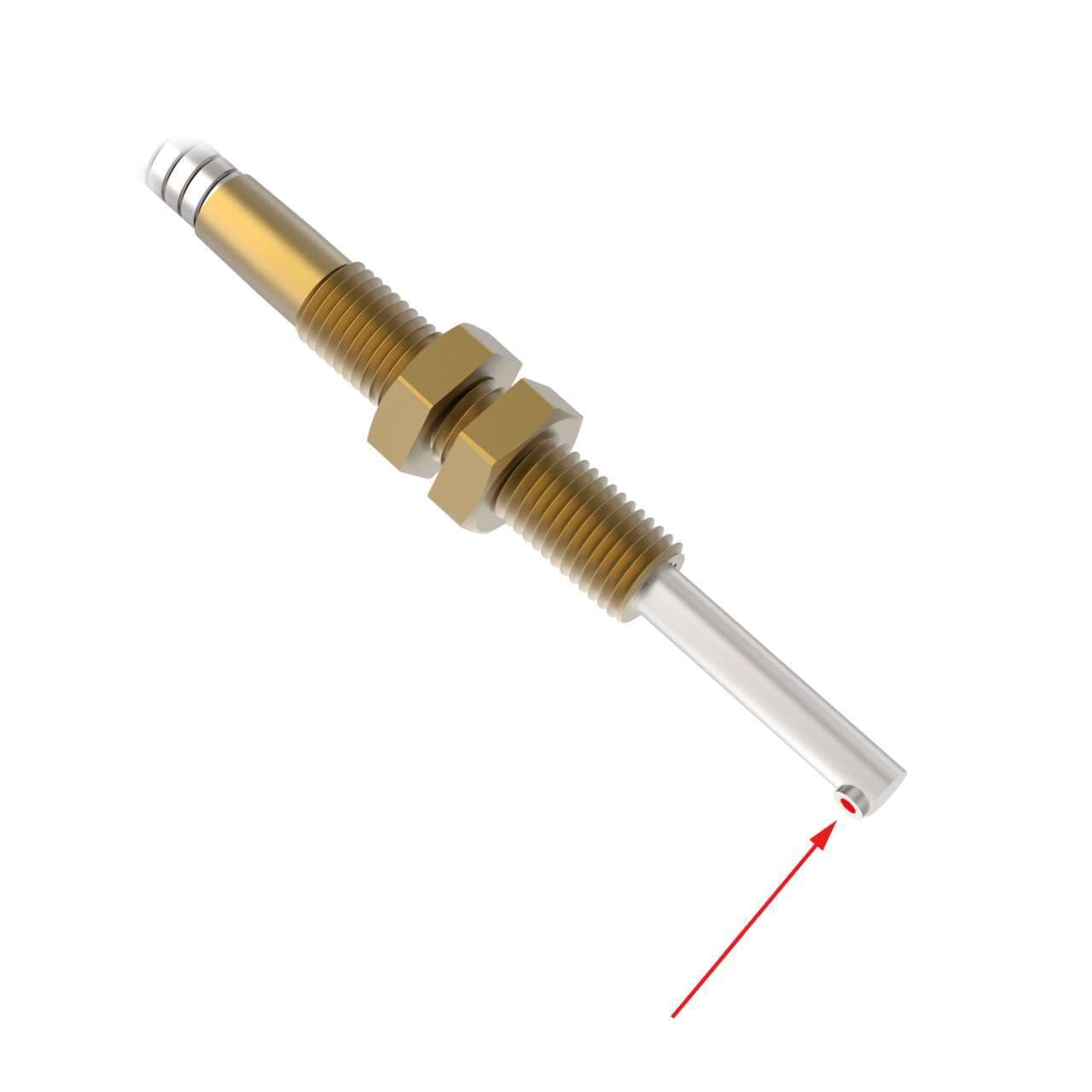

Banner Engineering ITETA1.59S, part of the Glass fiber series, is a fiber optic sensor designed with a diffuse-reflective system for individual fiber side and right-angled sensing. This sensor features a cylindrical (threaded) end tip made from stainless steel, with the sensing element composed of glass fiber encased in a stainless steel monocoil. It has a length of 9ft (2.7m) and a fiber core diameter of 2.3mm. The ITETA1.59S is built to operate in ambient air temperatures up to +249°C.

ITETA1.59S Related Documents

ITETA1.5 SERIES SS TERMINATED-1630954929807.stpITETA1.5 SERIES SS TERMINATED-1630954929814.pdf
