ITETA1.54SM.25 Banner Fiber Optic Sensors

ITETA1.54SM.25 on Powermatic Associates
Banner
  • ITETA1.54SM.25
  • ITETA1.54SM.25

Part#:ITETA1.54SM.25

Alt. Part#:81396

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

FIBER ITETA1.54SM.25

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    US
  • Application: Vacuum Feed Through
    None
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    #5/16-24 thread
  • Max Distance: DF-G3 (mm)
    No Data
  • Application: Liquid Level
    No
  • Feature: Small Object Detection
    No
  • Tariff Fiber Meters (fbm)
    2122.28
  • Measured Max Distance (mm)
    No Data
  • Integrated Lens
    No
  • Termination Type
    Glass Fiber Sensors
  • Feature: Chemical Resistant
    No
  • Max Temp ( °C)
    249
  • Termination
    Terminated
  • Sensing End Segment 3
    Sideview
  • Sensing End Segment 1
    Thread
  • Sensing End Segment 2
    Ferrule
  • Minimum Bend Radius (mm)
    25
  • Core Diameter (mm)
    2.3
  • Flex Relief
    No
  • Retractile
    No
  • Fiber Length (m)
    1.219
  • Fiber Sensing End Size
    5.3 mm
  • Fiber Sensing End Tip
    Sideview
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Beam Exit
    Right Angle
  • Sensing End Material (Specific)
    Stainless Steel
  • Quantity Included
    1
  • Housing Style
    Round
  • Sensing Mode (Detailed)
    Reflective
  • Fiber Optic Type
    Glass
  • Sensing Mode (General)
    Opposed

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ITETA1.54SM.25 on Powermatic Associates is $208.00. Order now.

About the product

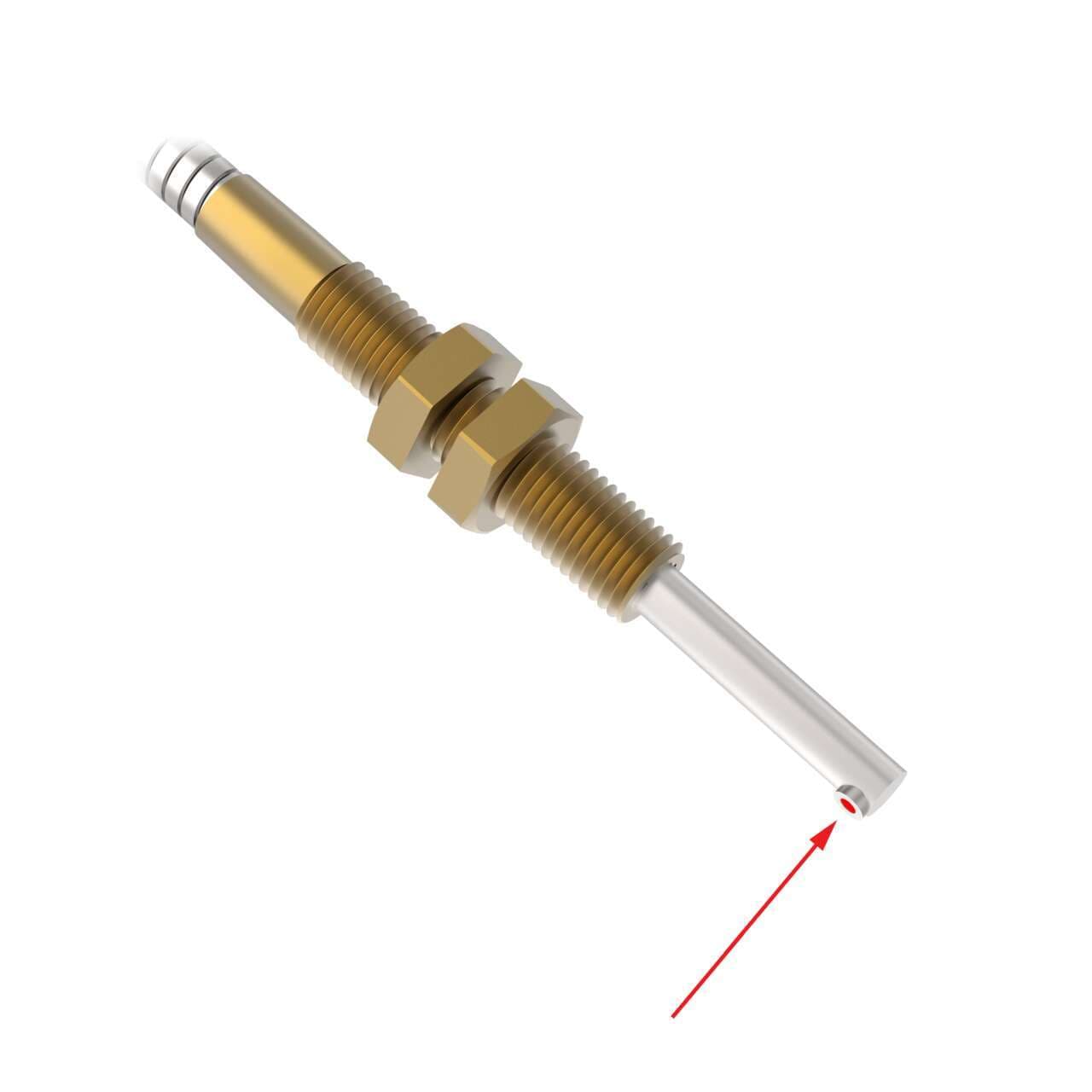

Banner Engineering ITETA1.54SM.25 is a fiber sensor belonging to the Glass fiber series, designed with a diffuse-reflective system for individual fiber side/right-angled sensing. This sensor features a cylindrical (threaded) end tip made from stainless steel, with the sensing part composed of glass fiber encased in a stainless steel monocoil. It has a length of 4ft (1.2m) and a diameter of 2.3mm for the fiber core. The sensor is built to operate in ambient air temperatures up to +249°C.

ITETA1.54SM.25 Related Documents

ITETA1.5 SERIES SS TERMINATED-1630954965688.stpITETA1.5 SERIES SS TERMINATED-1630954965682.pdf
