IT223S Banner Fiber Optic Amplifiers

IT223S on Powermatic Associates
Banner

Part#:IT223S

Manufacturer:Banner

Alt. Part#:24854

Product Lifecycle:Active

Get a quick Quote!

FIBER IT223S

About the manufacturer: Banner is one of the manufacturers that offers Fiber Optic Amplifiers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IT223S Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    663.151504 g
  • Country Of Origin
    US

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IT223S Description

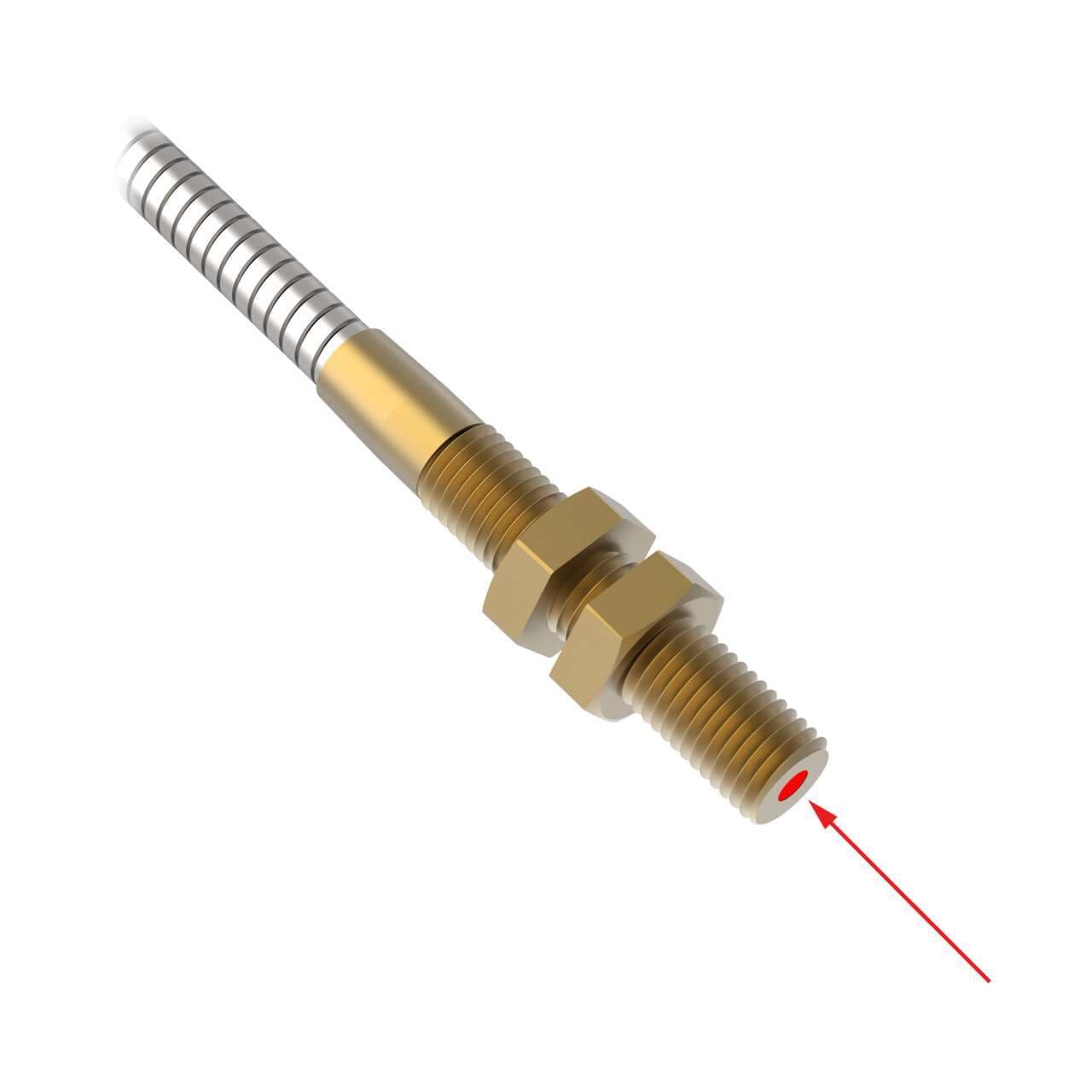

Banner Engineering IT223S is a fiber optic sensor belonging to the Glass fiber series, designed with a diffuse-reflective system for individual fiber in-line sensing. It features a cylindrical (threaded) end tip made from brass, with the sensing element composed of glass fiber and protected by a stainless steel monocoil. The sensor has a length of 23ft (7m) and a diameter of 3.2mm for the fiber core. It is capable of operating in ambient air temperatures up to +249°C.

Manufacturer warranty

$421.00

Request a quote, and we will send availability within minutes.

Select Qty:

$421.00

$421.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
